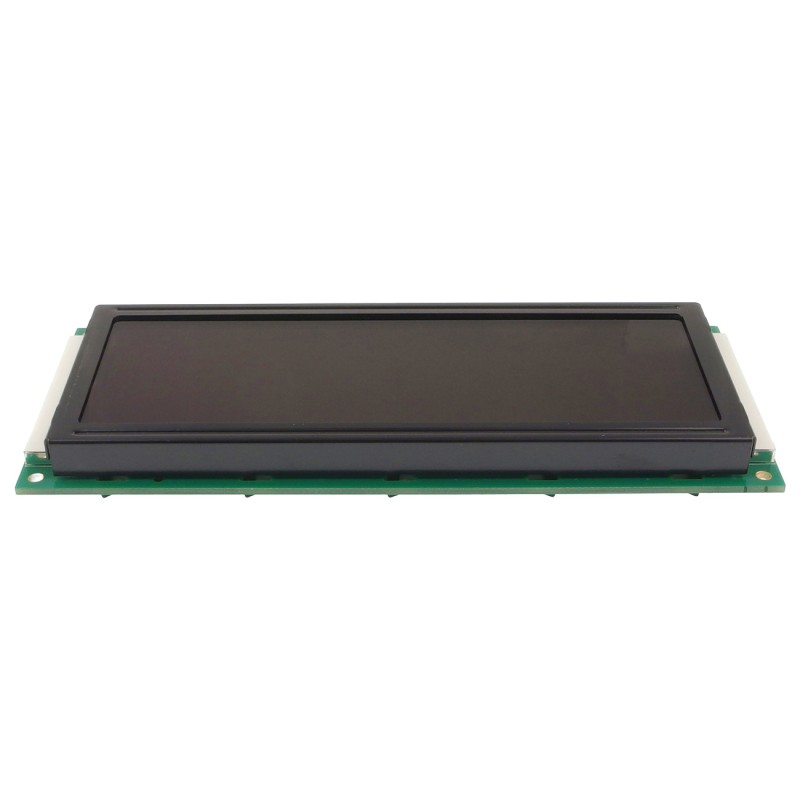

Main view
search
  • Main view
  • Top view
  • Bottom view
ID: 1199514
zł85.61
Tax included

zł69.60 tax excl.

20x4 alphanumeric LCD display with an HD44780-compatible controller, intended for use in embedded systems and microcontroller-based projects. Pb-Free (RoHS) compliant

24h
Available
Available quantity: 1

Description

The LCD-AC-2004H-DIW-W/KK-E6 display is designed for presenting textual information in a four-line by twenty-character format. The FFSTN display matrix and enlarged characters with a height of 9.22 mm provide good readability, including from a greater viewing distance.

The module is equipped with white LED backlighting powered at 5 V, enabling operation in low-light conditions. Control is performed via a parallel interface compatible with the HD44780 standard, ensuring compatibility with popular microcontrollers and prototyping platforms. The display is suitable for use in measurement devices, operator panels, controllers, and automation systems.

Features

  • Display type: Alphanumeric LCD
  • Character format: 20 x 4
  • Matrix type: FFSTN
  • Controller: HD44780 compatible
  • Character height: 9.22 mm
  • Backlight color: White
  • Backlight type: LED
  • Backlight voltage: 5 V
  • Backlight current: 120 mA
  • Interface: Parallel
  • Connector: 1 x 18 pin
  • Overall dimensions: 146 x 62.5 x 13.6 mm
  • Active area: 118.84 x 43 mm
  • Manufacturing compliance: Pb-Free (RoHS)
1199514

Data sheet

Screen type
LCD alfanumeric
Diagonal (inch)
Nie dotyczy
Resolution
20 MPx
Interface
Parallel
Touch
No

Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20

Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
