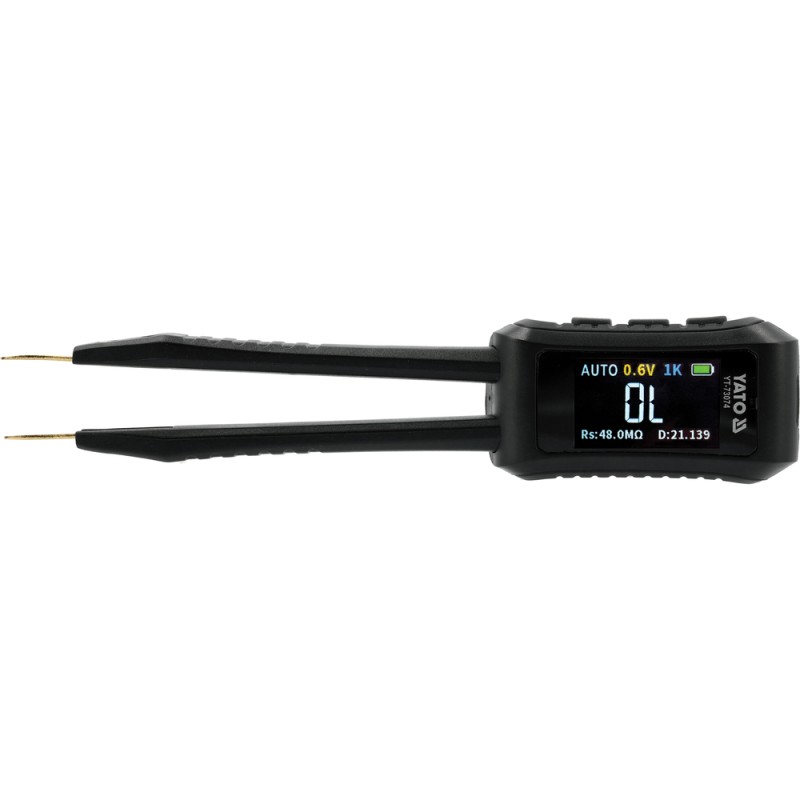

LCR Tweezers Meter with OLED Display - Yato YT-73074
ID: 1203988
5906083123245
zł128.28
Tax included
zł104.29 tax excl.
Precision LCR tweezers meter designed for measuring SMD and through-hole components. Enables automatic component identification and measurement of resistance, capacitance, inductance, and ESR parameters without desoldering. Yato YT-73074
Description
The YT-73074 is a compact LCR tweezers meter designed for diagnostics of surface-mount (SMD) and through-hole electronic components. The tweezers-style construction allows direct contact with component leads, enabling quick parameter verification without removing the part from the PCB.
The device features automatic measurement range selection and automatic component type identification, with the option for manual selection. In addition to measuring resistance, capacitance, and inductance, it supports ESR measurement for capacitors, dissipation factor measurement, and Q factor measurement for inductors. Measurement frequency is available in three ranges: 100 Hz, 1 kHz, and 10 kHz.
The OLED display presents results in real time. Users can adjust screen orientation, brightness level, and sound volume. Power is supplied by a built-in 3.7 V 500 mAh Li-Po battery, charged via a USB-C port. The ABS housing provides lightweight construction and mechanical durability, making the device suitable for service benches and workshop environments.
Features
- Device type: LCR tweezers meter
- Display: OLED
- Automatic component identification
- Automatic measurement range
- DATA HOLD function
- Measurement ranges
- Resistance: 10 mΩ - 10 MΩ
- Capacitance: 1 pF - 20 mF
- Inductance: 10 µH - 60 H
- Diode test: up to 0.6 V
- Measurement parameters
- Capacitor ESR measurement
- Dissipation factor measurement
- Inductor Q factor
- Measurement frequency: 100 / 1000 / 10000 Hz
- Test voltage: 0.3 V / 0.6 V
- Power supply
- Battery: 3.7 V 500 mAh Li-Po
- Charging port: USB-C
- Low battery indicator
- Auto power-off: 5 - 120 min or disabled
- Construction
- Housing material: ABS
- Dimensions: 146 x 30 x 18 mm
- Weight: 37 g
Kit includes
- Pair of straight tweezers tips
- Pair of curved tweezers tips
- USB-C to USB-A cable
- Zipper carrying case
