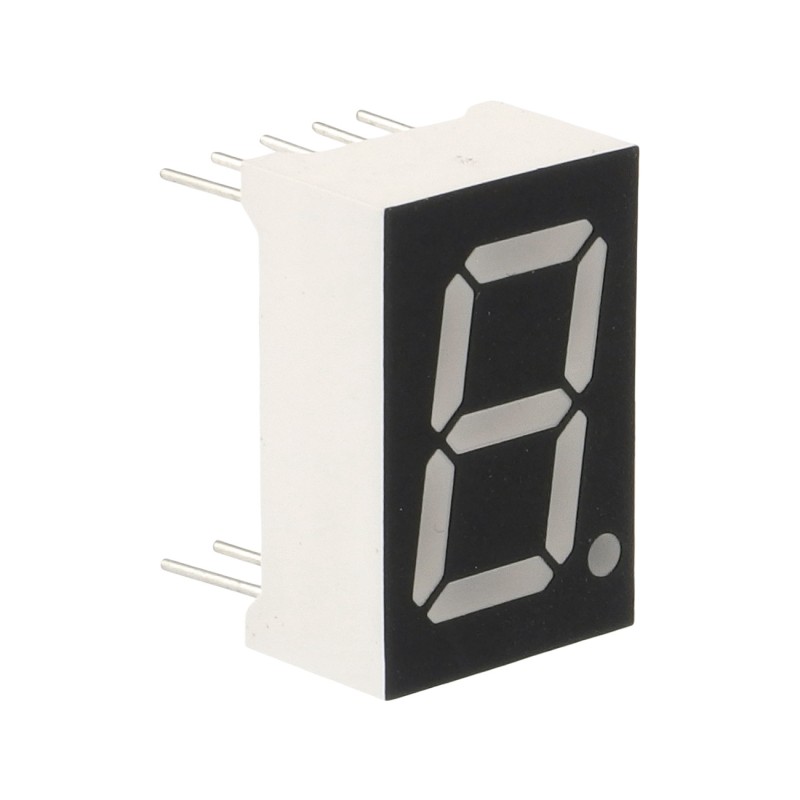

  • Main view
  • Front view
  • Top view
  • Rear view
  • Top of the housing view
  • Angled view – rear of the display
ID: 1200017
zł1.89
Tax included

zł1.54 tax excl.

Single-digit 7-segment LED display with a 0.56 inch character height, emitting ultra green light at 570 nm, with a luminous intensity of 20 mcd at 20 mA, in a common anode configuration, intended for through-hole mounting. Pb-Free

24h
Available
Available quantity: 6

Description

The LED1-AS-05613BMG-B display is designed for presenting single digits and basic symbols in a seven-segment format. The 0.56 inch (14.20 mm) character height provides good readability in measurement devices, counters, indicators, and control panels.

The component emits ultra green light with a wavelength of 570 nm and a luminous intensity of 20 mcd at a forward current of 20 mA, ensuring clear visibility under standard lighting conditions. The display is manufactured using LED technology with a common anode configuration, enabling direct cooperation with popular driver circuits and microcontrollers. The Pb-Free version complies with the RoHS directive.

Features

  • Display type: 7-segment LED
  • Number of digits: 1
  • Character height: 14.20 mm
  • Character height: 0.56 inch
  • Emission color: Ultra green
  • Wavelength: 570 nm
  • Luminous intensity: 20 mcd
  • Segment current: 20 mA
  • Pin configuration: Common anode
  • Number of pins: 10
  • Pin pitch: 2.54 mm

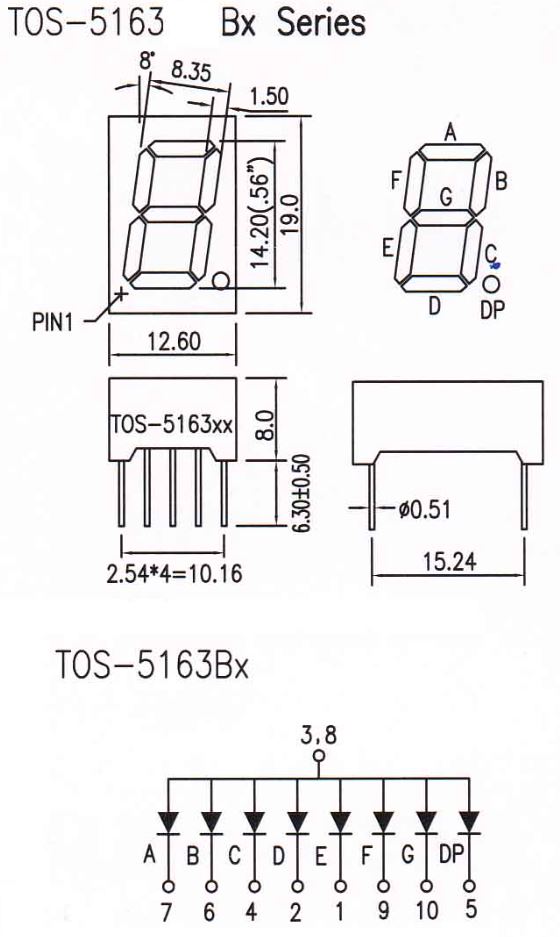

  • Package dimensions: 12.6 x 19.0 x 8.0 mm
  • Lead diameter: 0.51 mm
  • Manufacturing compliance: Pb-Free (RoHS)
