- New
SenseCAP LoRaWAN Indoor Gateway (SX1302) AS923 – LoRaWAN gateway, 8 channels, PoE, AS923 - Seeed Studio 114992983
ID: 1200516
zł530.63
Tax included
zł431.41 tax excl.
SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway (SX1302) AS923 Seeed Studio 114992983 is an 8-channel gateway for indoor applications, operating in the AS923 band. Thanks to its high sensitivity, PoE support, and open software, it provides a universal solution for building LoRaWAN networks in projects related to precision agriculture, building automation, and environmental systems.
Description
The SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway designed for operation in the AS923 band enables the creation of scalable IoT networks using LoRaWAN technology. It is based on the SX1302 chip and MT7628 processor, supports up to 8 channels, and offers high receiver sensitivity (up to -139 dBm) with a maximum transmit power of 26 dBm. The gateway supports the LoRaWAN 1.0.3 protocol (Class A/B/C) and can be used with various network servers such as ChirpStack, TTN, and AWS.
The gateway is equipped with an Ethernet port with PoE support, an internal Wi-Fi antenna, and an external 3 dBi LoRa antenna. Management is carried out via a web browser or the local SenseCAP console. The gateway features a built-in LoRaWAN server based on ChirpStack, which allows quick deployment of local network infrastructure without the need for cloud services. The housing is designed for indoor applications, with the option of extension using an external enclosure.
Properties
- Semtech SX1302 baseband chip, 8 LoRa channels
- Support for LoRaWAN 1.0.3 Class A/B/C
- Support for AS923 and other bands (EU868, US915, AU915, KR920, etc.)
- Transmission range up to 10 km
- Receiver sensitivity up to -139 dBm (SF12, 125 kHz)
- Maximum transmit power up to 26 dBm
- Processor MT7628 (MIPS24KEc, 580 MHz), 128 MB RAM, 32 MB Flash
- Antennas: LoRa (external, 3 dBi), Wi-Fi (internal)
- Interfaces: Ethernet RJ45 (10/100 Mbps, with PoE), USB Type-C (console), microSD (reserved), RP-SMA (LoRa antenna)
- Power supply: 12 V DC or PoE (40–57 V DC, IEEE 802.3af)
- Operating temperature: from -20°C to +55°C
- Humidity: 0–85% (non-condensing)
- Dimensions: 143.6 × 135 × 34 mm (without connectors) / 150.6 × 135 × 34 mm (with connectors)
Included in the set

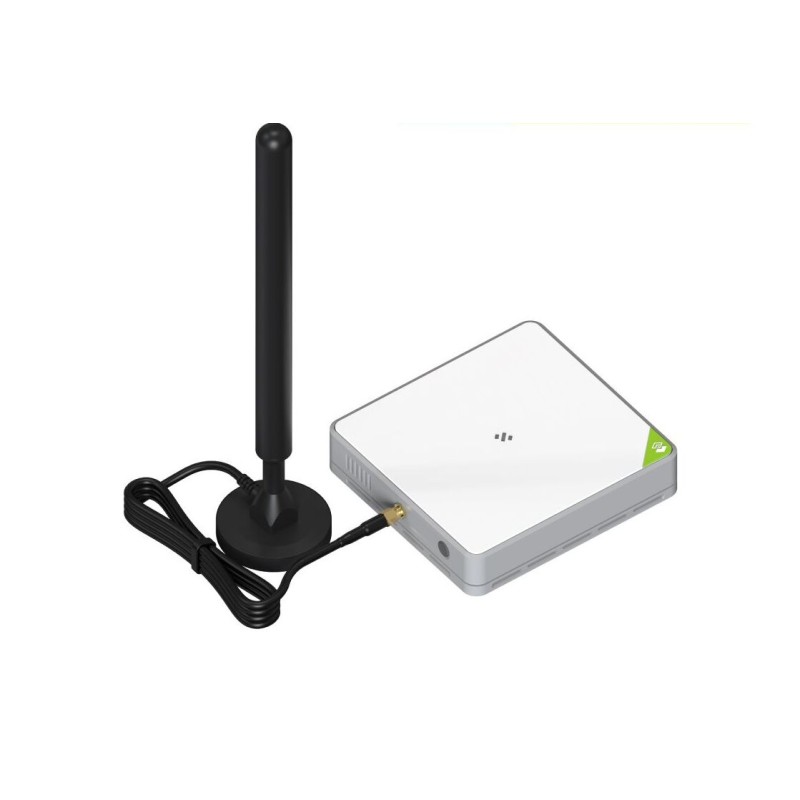

- SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway
- Power adapter
- External 3 dBi antenna
1200516
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
