SenseCAP LoRaWAN Indoor Gateway (SX1302) US915 – LoRaWAN gateway, 8 channels, PoE, US915 - Seeed Studio 114992982
search
  • SenseCAP LoRaWAN Indoor Gateway (SX1302) US915 – LoRaWAN gateway, 8 channels, PoE, US915 - Seeed Studio 114992982
ID: 1200517
zł530.63
Tax included

zł431.41 tax excl.

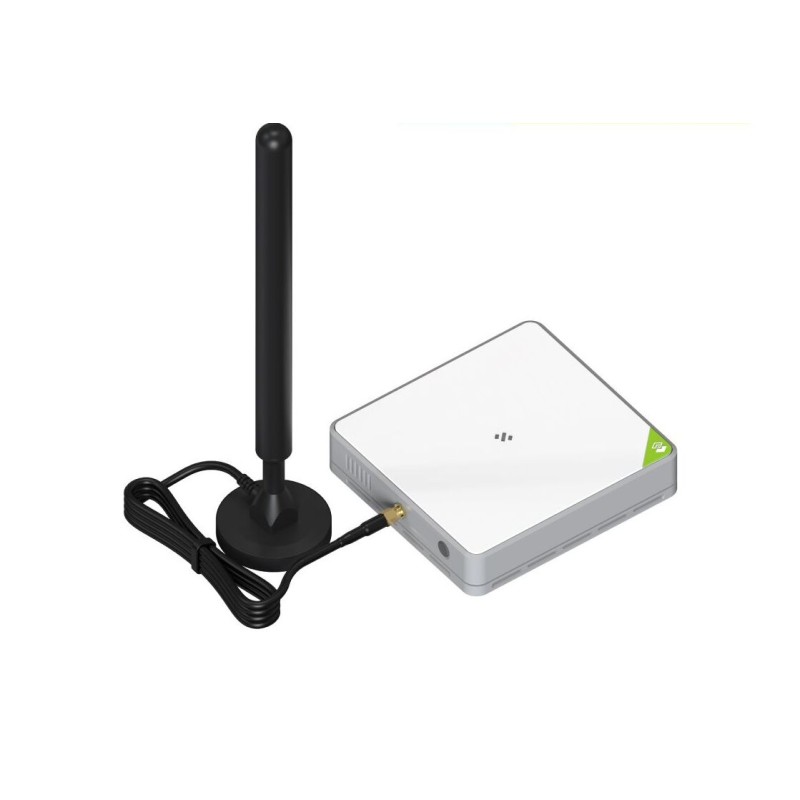

SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway (SX1302) US915 Seeed Studio 114992982 is an 8-channel LoRaWAN gateway with PoE support and a built-in ChirpStack network server. Designed for indoor applications, it provides stable and long-range IoT connectivity in the US915 band, proving useful in smart city projects, precision agriculture, and environmental monitoring.

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway designed for operation in the US915 band enables the creation of IoT networks based on the LoRaWAN protocol. The device is based on the SX1302 baseband chip and MT7628 processor, supports up to 8 channels, and the LoRaWAN 1.0.3 protocol Class A/B/C. The transmission range is up to 10 km, and the receiver sensitivity reaches -139 dBm at SF12. The transmit power goes up to 26 dBm.

The gateway is compatible with various network servers (including AWS, ChirpStack, TTN) thanks to Packet Forwarder and Basics™ Station modes. It features a built-in LoRaWAN server based on ChirpStack and a local SenseCAP console available via Wi-Fi or Ethernet, enabling easy configuration and management. The device can be powered via a 12 V DC adapter or PoE (IEEE 802.3af).

Properties

  • Semtech SX1302 baseband chip, 8 LoRa channels
  • Support for LoRaWAN 1.0.3 Class A/B/C
  • Support for US915 band (and others: EU868, AU915, AS923, KR920)
  • Range up to 10 km, receiver sensitivity up to -139 dBm (SF12, 125 kHz)
  • Transmit power up to 26 dBm
  • Processor MT7628 (MIPS24KEc, 580 MHz), 128 MB RAM, 32 MB Flash
  • Antennas: LoRa (external 3 dBi), Wi-Fi (internal)
  • Interfaces: Ethernet RJ45 (10/100 Mbps, with PoE), USB Type-C (console), microSD (reserved), RP-SMA (LoRa antenna)
  • Support for Wi-Fi 2.4 GHz 802.11 b/g/n
  • Power supply: 12 V DC / PoE 40–57 V DC (IEEE 802.3af)
  • Dimensions: 143.6 × 135 × 34 mm (without connectors) / 150.6 × 135 × 34 mm (with connectors)
  • Operating temperature: -20°C to +55°C
  • Humidity: 0–85% (non-condensing)

Included in the set

  • SenseCAP M2 Multi-Platform LoRaWAN Indoor Gateway
  • Power adapter
  • External 3 dBi antenna
