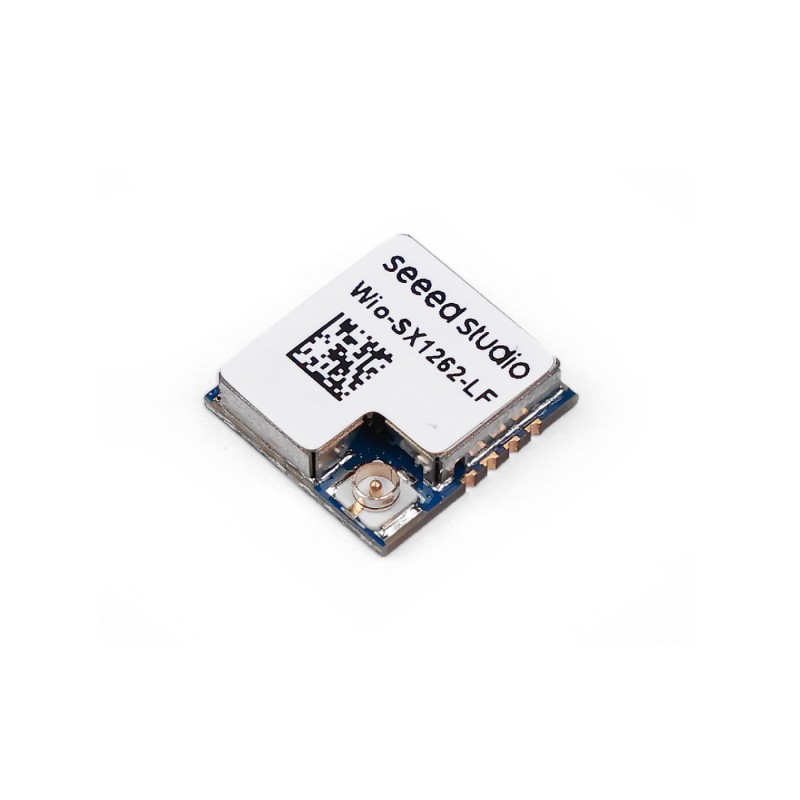

  • Main view
  • Front view
  • Back view
ID: 1203694
zł25.79
Tax included

zł20.97 tax excl.

A wireless LoRa module based on the Semtech SX1262 chip, operating in the 433 MHz and 470 MHz bands, designed for IoT, agriculture, industry, and smart home applications. The module offers long transmission range, low power consumption, and high receiver sensitivity, enabling reliable connections in harsh environments. Equipped with UART, I2C, SPI, ADC, and GPIO interfaces, it allows for easy integration with microcontrollers and electronic systems. Seeed Studio 100097817

4 weeks
Awaiting delivery
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

Wio-SX1262-LF is a wireless LoRa module based on the Semtech SX1262 chip, supporting LoRa and LoRaWAN protocols in the 433 MHz and 470 MHz frequency bands. The module features a built-in IPEX antenna port and is designed for applications in industry, agriculture, smart homes, and other scenarios requiring long range and low power consumption. The device has a compact 28-pin SMT package, facilitating integration into electronic projects. It offers high transmission performance with up to 22 dBm output power at 470 MHz and 10 dBm at 433 MHz, along with a highly sensitive receiver: -136.5 dBm for SF12 at 125 kHz BW. Wio-SX1262-LF supports UART, I2C, SPI, ADC, and GPIO interfaces, allowing easy connection to microcontrollers and other systems in IoT projects. Additionally, its low standby current of 2.1 μA ensures energy-efficient operation for long-term applications.


Features

  • Main chip: SX1262-LF
  • Package: 28-pin SMT
  • Supported frequencies: 433 MHz, 470 MHz
  • Power supply: typical 3.3 V
  • Standby current: 2.1 μA (WDT enabled)
  • Maximum operating current (transmit): 50 mA @10 dBm (433 MHz), 111 mA @22 dBm (470 MHz)
  • Maximum operating current (receive): 6.7 mA @BW125 kHz
  • Output power: up to 10 dBm @433 MHz, up to 22 dBm @470 MHz
  • Receiver sensitivity: -134.5 dBm @433 MHz, -136.5 dBm @470 MHz (SF12, BW125 kHz)
  • Harmonics: <-40 dBm above 1 GHz
  • Antenna: IPEX port or SMT pin, default IPEX 50 Ω
  • Interfaces: RF, 3 × UART, 1 × I2C, 1 × SPI, 1 × ADC
  • Operating temperature range: -40°C ~ +85°C
  • Low power consumption and high transmission efficiency for IoT applications
  • Dimensions: 12 × 12 × 2.5 mm
