The HLK-L06 module is a compact 433 MHz LoRa solution for wireless data transmission in IoT applications. modHK-L06

24h
Available
Available quantity: 6

Description

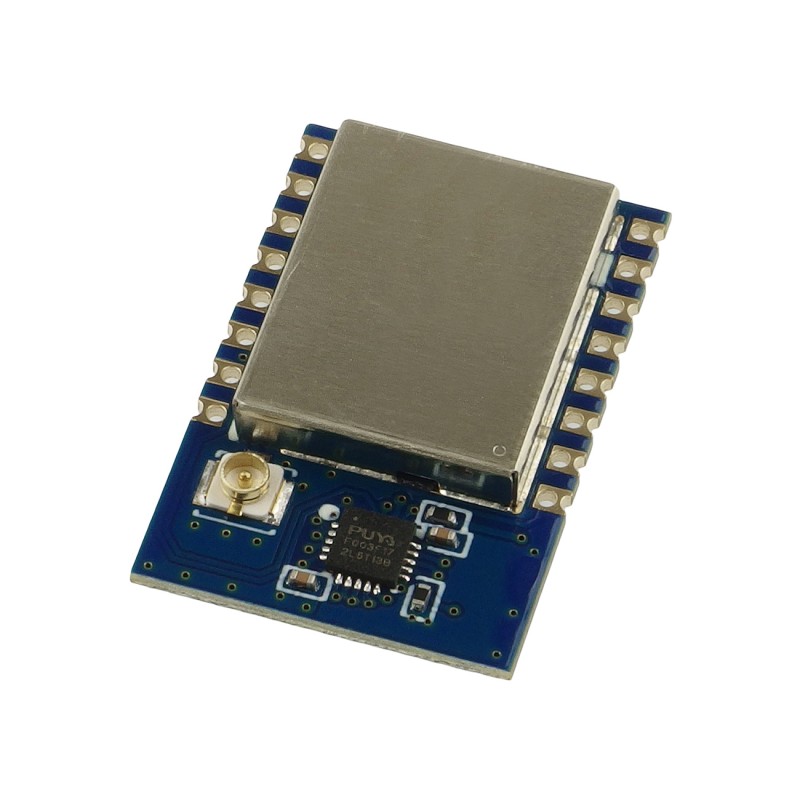

The HLK-L06 module is a compact and energy-efficient solution for wireless data transmission in IoT applications. It enables UART-to-LoRa signal conversion, offering long-range communication, low power consumption, and strong resistance to interference.

The module is compatible with the B36 enclosure and features an I-PEX connector for an external antenna. With AT command support, users can easily configure transmission parameters such as output power and data rate. HLK-L06 is ideal for applications like smart cities, building automation, security systems, and logistics.

Features

  • Frequency range: 433.040–434.790 MHz
  • RF chip: Semtech LLCC68
  • Microcontroller: Puya PY32F003
  • Transmit power: up to 22 dBm (programmable)
  • Receiver sensitivity: up to –129 dBm
  • Communication interface: UART (9600–115200 bps)
  • LoRa data rate: 1.11–18.23 kbps
  • Power supply: 3.0–3.6 V DC (typical 3.3 V)
  • Current consumption: ~120 mA (TX), ~5 mA (RX)
  • Operating temperature: –40 °C to 85 °C
  • Communication modes: point-to-point and point-to-multipoint
  • Configuration via AT commands
