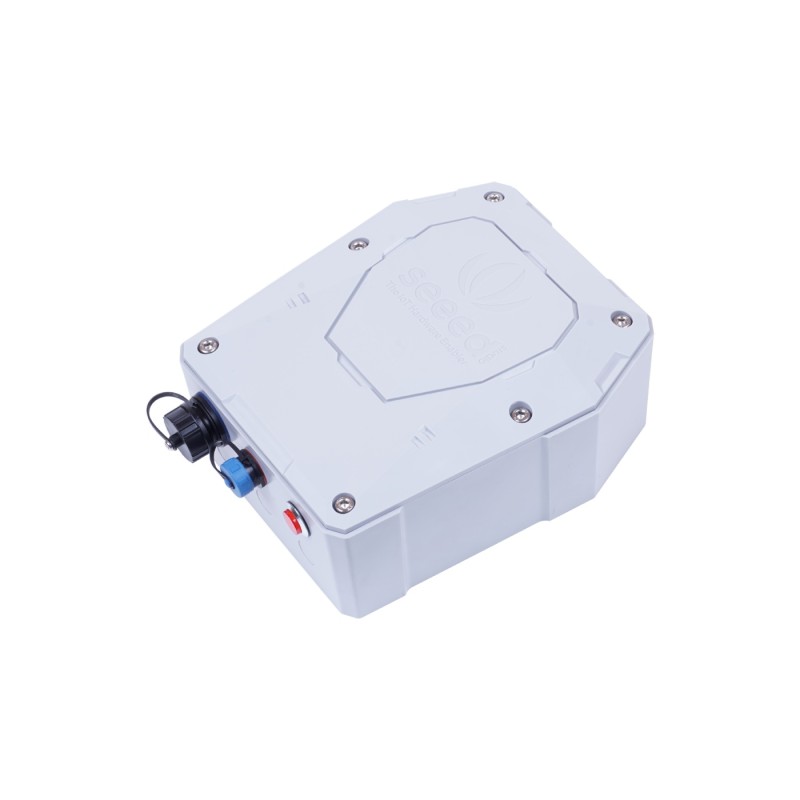

SenseCAP Outdoor Gateway - LoRaWAN EU868MHz - Seeed Studio 102991154
ID: 1189568
zł2,249.01
Tax included
zł1,828.46 tax excl.
Outdoor LoRaWAN EU868 gateway designed to receive data from wireless sensors and transmit it to the SenseCAP platform via Ethernet or 4G LTE. Equipped with a TI AM3358 Cortex-A8 1 GHz processor, SX1302 concentrator, 512 MB RAM, and 8 GB eMMC storage. Supports eight receiving channels and one transmitting channel, features an IP66-rated enclosure, and operates at temperatures from -40°C to 70°C. Designed for smart agriculture, environmental monitoring, and distributed IoT installations. Seeed Studio 102991154
Description
The SenseCAP Outdoor Gateway LoRaWAN gateway collects data from wireless sensors and forwards it to a cloud platform via Ethernet or 4G LTE. The Seeed Studio device operates in the European EU868 band, covering frequencies from 863 MHz to 870 MHz. It supports LoRaWAN Class A sensors and can be used in smart agriculture, environmental monitoring, building automation, and distributed IoT installations.
The gateway features a TI AM3358 Cortex-A8 processor running at 1 GHz and a Semtech SX1302 radio concentrator. The Linux Debian operating system works with 512 MB of DDR3 RAM and 8 GB of eMMC storage. The radio system supports eight receiving channels and one transmitting channel, with a receiver sensitivity of -139.5 dBm at SF12 and a bandwidth of 125 kHz. The specified communication range reaches up to 10 km with a clear line of sight and up to 2 km in urban environments, depending on radio propagation conditions.
The IP66-rated enclosure protects the electronics against dust and powerful water jets. An operating temperature range of -40°C to 70°C and the enclosure material's resistance to UV radiation allow outdoor installation. The gateway can operate in greenhouses, agricultural facilities, industrial plants, and extensive measurement systems. Its construction supports wall or pole mounting.

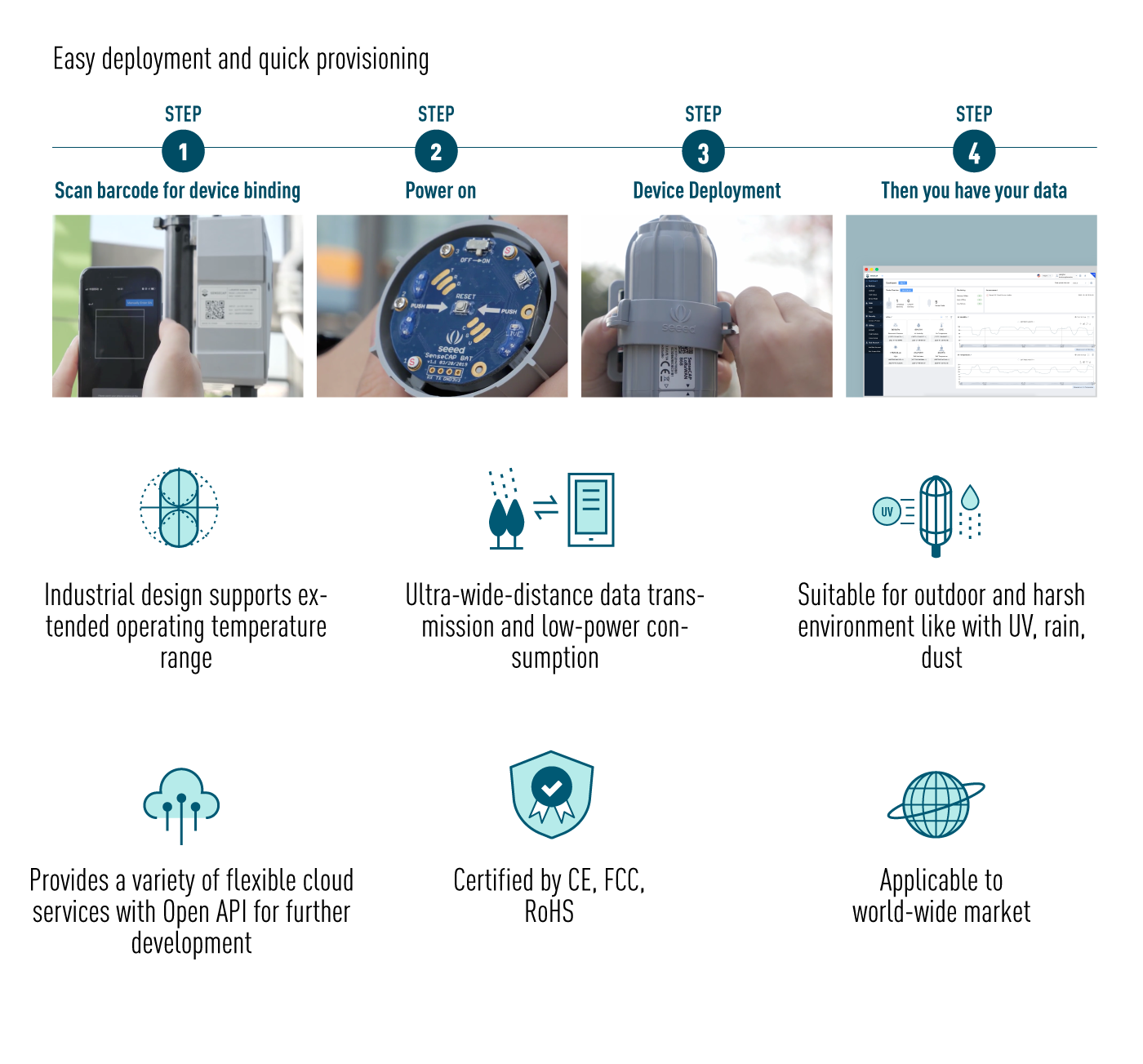

SenseCAP system configuration involves registering the device by scanning its code, connecting the power supply, installing the gateway and sensors, and accessing data through the cloud platform. The SenseCAP mobile app and SenseCAP Portal support device registration, status monitoring, and measurement management.
LoRaWAN connectivity enables the deployment of distributed sensor networks with low power requirements. The solution can be used to monitor temperature and humidity in agricultural crops, supervise food storage conditions, and collect environmental data. The SenseCAP API enables measurement data to be integrated with custom applications and analytics systems.
The gateway works with SenseCAP LoRaWAN sensors and appropriately configured devices from other manufacturers. Connections to the platform use authentication and transmission encryption mechanisms. The manufacturer provides the SenseCAP Outdoor Gateway product specifications and documentation for device configuration and management. The gateway does not support Helium LongFi networks.
Features
- General information
- Manufacturer: Seeed Studio
- Manufacturer part number: 102991154
- Series: SenseCAP Outdoor Gateway
- Hardware model: Long Range-G-868-E/4G
- Device type: outdoor LoRaWAN gateway
- LoRaWAN communication
- Radio frequency band: EU868, from 863 MHz to 870 MHz
- Supports LoRaWAN Class A devices
- Radio concentrator: Semtech SX1302
- Number of channels: 8 RX, 1 TX
- Transmit power: 25 dBm
- Receiver sensitivity: -139.5 dBm (SF12, BW125)
- Communication range: up to 10 km with a clear line of sight, up to 2 km in urban environments
- Processor and memory
- Processor: TI AM3358 Cortex-A8, 1 GHz
- Operating system: Linux Debian
- RAM: 512 MB DDR3
- Internal storage: 8 GB eMMC
- Network connectivity

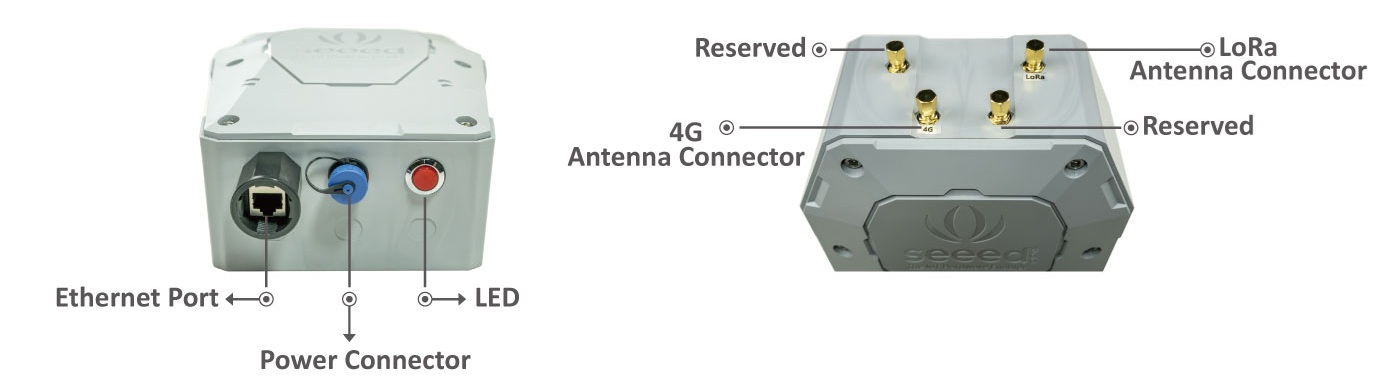

- Interfaces: Ethernet and 4G LTE
- Ethernet: 100 Mbps, RJ45 connector
- Cellular modem: LTE Cat 4
- Supported LTE-FDD bands: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
- Supported LTE-TDD bands: B38/B39/B40/B41
- Supported WCDMA bands: B1/B2/B4/B5/B6/B8/B19
- Supported GSM bands: 850/900/1800/1900 MHz
- Maximum LTE-FDD data rate: 150 Mbps download, 50 Mbps upload
- Maximum LTE-TDD data rate: 130 Mbps download, 30 Mbps upload
- Antennas
- LoRa antenna: omnidirectional, 2.5 dBi, vertical polarization, SMA-J connector
- 4G antenna: omnidirectional, 0 to 4 dBi, linear polarization, SMA-J connector
- Power supply and construction
- Power supply: 12 V DC / 2 A
- Power consumption: 3.6 W
- Enclosure protection rating: IP66
- Enclosure material: polycarbonate (PC)
- UV resistance: UL746C F1
- Operating temperature: -40°C to 70°C
- Operating humidity: 0% to 100% RH, non-condensing
- Mounting: wall or pole
- Dimensions: 256 × 160 × 81 mm
- Weight: 777 g
- Network connection status LED indicator
- Grounding connection hole
- Software and certification
- Management via SenseCAP Portal and the SenseCAP mobile app
- API for data and device integration
- Certifications: CE, FCC, RoHS
Kit Includes
- SenseCAP Outdoor Gateway EU868 - 1 pc.
- LoRa antenna - 1 pc.
- 4G antenna - 1 pc.
- Hex key - 1 pc.
- Mounting components - 4 pcs.
- Power adapter - 1 pc.
- 5 m power extension cable - 1 pc.
- Wire ferrules - 2 pcs.
- Aluminum components - 2 pcs.
- M5 self-drilling screws - 8 pcs.
