The Adafruit Switchable USB Type A to C Breakout Board is a versatile tool for electronics and microcontroller developers that lets them manually manage USB lines. It lets you create secure "charge-only" connections, monitor voltages, and analyze signals without compromising the integrity of your connections. Its compact size and easy access to the signal lines make it ideal for R&D, labs, and prototyping. Adafruit 4909

24h
Available
Available quantity: 2
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

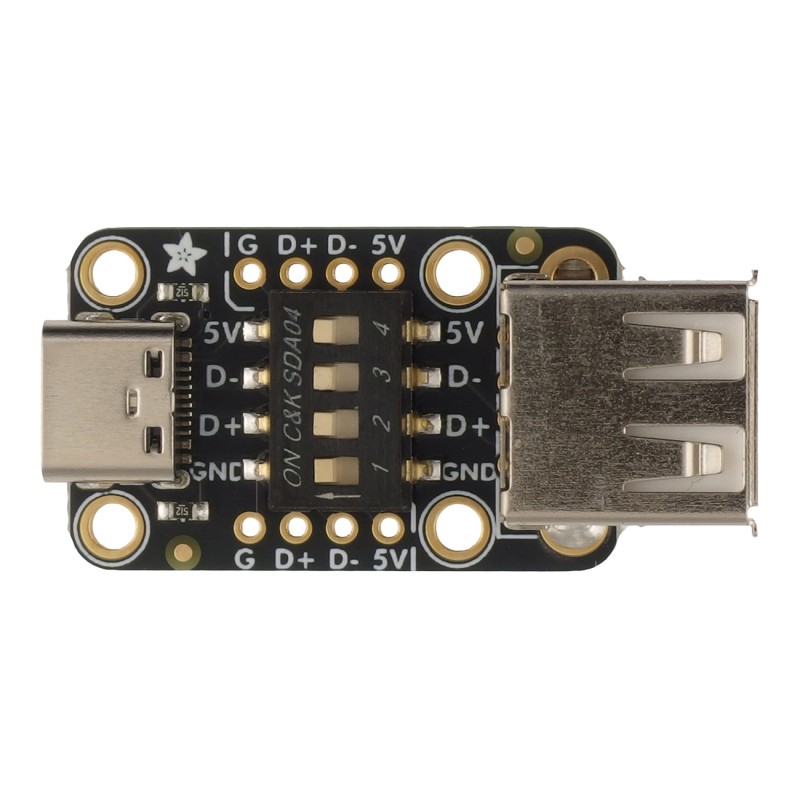

The Adafruit Switchable USB Type A to C Breakout Board allows you to manually switch the signal and power lines on your USB cable. Using a four-position DIP switch, you can independently turn on or off each of the lines: VBUS (power), GND (ground), D+, and D- (data lines). The board is designed for low-voltage, low-current applications, such as microcontroller projects. Disabling the data lines provides a "charge-only" function, while disconnecting the power allows you to monitor high- or low-side currents. All lines are routed to labeled pads, allowing you to easily connect test probes and analyze signals or voltages. The C&K SDA04H1SBD switches used on the board are rated at 5V and 100mA.

Features

  • Connector type: USB Type A (male) to USB Type C (female)
  • Four independent DIP switches for VBUS, GND, D+, D-
  • Possibility to disconnect data lines to obtain charging function without data transmission
  • Easy monitoring of voltages and signals thanks to the led-out measuring pads
  • Recommended for low-current applications (max. 100 mA)
  • Dimensions: 39.7 × 19.0 × 9.5 mm
  • Weight: 4.9 g
