A powerful single-board computer featuring a quad-core Cortex-A76 processor, a quad-core Cortex-A55 processor, and a Mali-G610 GPU. The setup includes 8GB of LPDDR5 RAM, 64GB eMMC storage, an NVMe SSD slot, and a variety of connectivity options, including Ethernet, HDMI, and USB-C 3.0. Hardkernel Odroid-M2

24h
Available
Available quantity: 3
Kamami is the official distributor of Odroid computers and accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

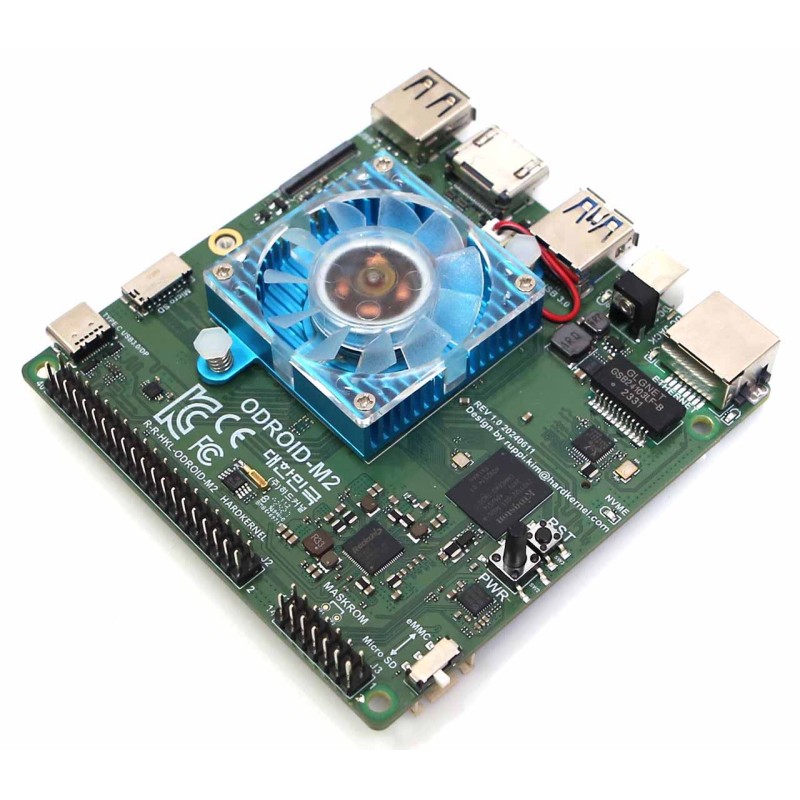

The Odroid M2 is a powerful single-board computer designed for high-performance embedded systems. It features an octa-core Rockchip RK3588S2 chip, comprising four Cortex-A76 cores, four Cortex-A55 cores, a next-generation Mali-G610 GPU, and an RKNN NPU AI accelerator. The board comes equipped with 8GB of fast LPDDR5 RAM and a 64GB eMMC storage module.

This compact computer is an upgraded successor to the Odroid M1, aimed at industrial applications demanding exceptional performance. The Odroid M2 boasts three times the computing power, double the memory bandwidth, and five times the graphics performance of its predecessor. Additionally, the Rockchip RK3588S2 SoC is manufactured using an 8nm process, ensuring lower power consumption.

The device includes a variety of interfaces for connecting external peripherals, such as Ethernet, an NVMe SSD slot, HDMI, USB-C 3.0, USB 2.0, MIPI CSI, and GPIO headers. It supports both Ubuntu 20.04 and Android 13 operating systems, and a range of accessories and extensive documentation are available via the manufacturer's Wiki page.

Features

  • Processor:
    • Rockchip RK3588S2 processor
    • Quad-core Cortex-A76 (2.3 GHz)
    • Quad-core Cortex-A55 (1.8 GHz)
    • ARMv8-A architecture with Neon and Crypto extensions
    • Mali-G610 MP4 GPU
  • NPU:
    • 6 TOPS@INT8, integrated high-performance AI accelerator (RKNN NPU)
  • Memory:
    • 8 GB LPDDR5 with 64-bit bus
    • 64 GB built-in eMMC storage
    • NVMe M.2 SSD slot (PCIe 2.1 x 1)
    • MicroSD slot (UHS-I SDR104)
  • Networking:
    • 1 x GbE port (RJ45, supports 10/100/1000 Mbps)
    • LED indicators:
      • Green LED: Blinks for data traffic on a 100 Mbps connection
      • Amber LED: Blinks for data traffic on a 1000 Mbps connection
  • Video:
    • HDMI 2.0 (up to 4K @ 60Hz with HDR, EDID)
    • MIPI DSI (30pin connector which is different from 31pin of the ODROID-M1)
    • DisplayPort (via USB-C port)
  • External I/O Ports:
    • 1 x USB 3.0 port
    • 1 x USB 2.0 port
    • 1 x USB 3.0 Type-C port (Data communication and DP Alt-Mode, Not a power source/sink)
    • UART (Debug)
    • MIPI-DSI
    • 40-pin GPIO header
    • 14-pin GPIO header
  • Additional Features:
    • PCF8536 RTC clock with CR2032 battery
    • LED indicators:
      • Red (PWR): Solid light when DC power is connected
      • Blue (ALIVE): Blinks during kernel operation
    • Power Supply:
      • DC Jack: Outer (-) diameter 5.5 mm, inner (+) diameter 2.1 mm
      • DC Input: 7.5V to 15.5V (Recommended DC power adapter: 12V/2A)
      • Power Consumption:
        • IDLE: 1W
        • CPU Load: ≃ 7.5W
        • Power Off: ≃ 0W
  • Board Dimensions: 90 x 90 x 21 mm
  • Weight: 78 g
