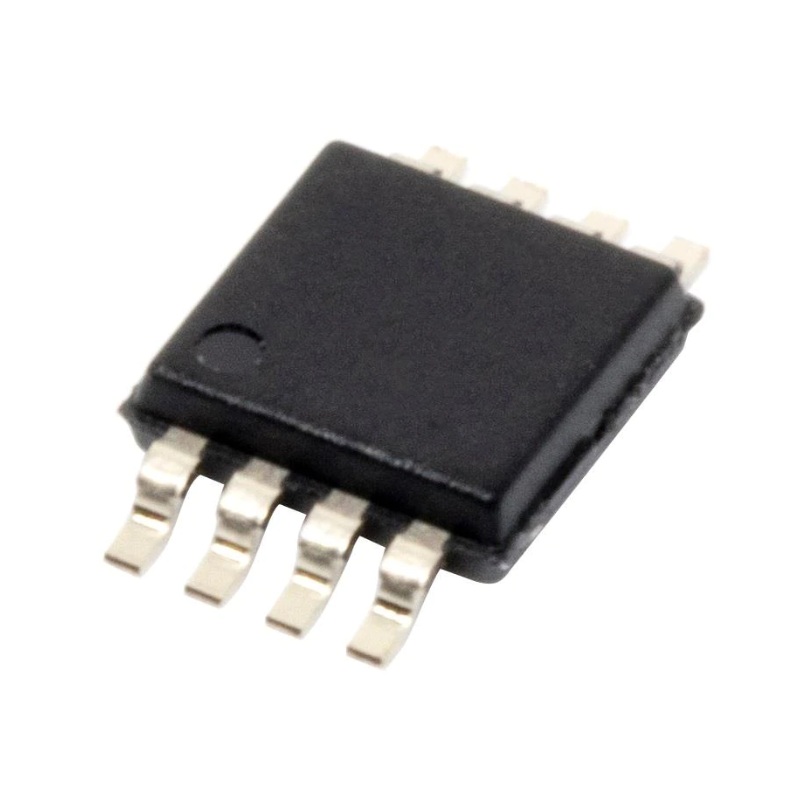

Instrumentation amplifier AD8420ARMZ
ID: 574507
5902186304451
zł18.45
Tax included
zł15.00 tax excl.
The AD8420ARMZ is a low-power instrumentation amplifier from Analog Devices, offering high accuracy, a wide gain and supply voltage range, and a compact MSOP-8 package. It is used in precision measurement systems, medical devices, industrial electronics, and analog signal processing circuits. Thanks to its low power consumption and resistance to interference, the component is well-suited for applications requiring reliability and stable performance.
Description
The AD8420ARMZ is a precision instrumentation amplifier with ultra-low power consumption, designed for applications requiring a high common-mode rejection ratio (CMRR) and a wide supply voltage range. It provides signal gain from 1 V/V to 1000 V/V with a bandwidth of up to 250 kHz. The device operates with both single and dual power supplies from 2.7 V to 36 V. It features low offset voltage, high power supply rejection ratio (PSRR), and very high input impedance, making it suitable for precise measurements in industrial systems, medical devices, and data acquisition applications.
Specifications
- Amplifier type: instrumentation
- Number of channels: 1
- Gain: 1 V/V to 1000 V/V
- Bandwidth: 250 kHz (3 dB)
- Supply voltage: 2.7 V – 36 V (single)
- CMRR: 92 dB
- PSRR: 100 dB
- Supply current: 90 µA
- Input bias current: 30 nA
- Offset voltage: 250 µV
- Package: MSOP-8
- Mounting style: SMD/SMT
- Operating temperature: –40°C to +125°C
