Operational Amplifier TLV4316IPWR

Description

Four-channel CMOS operational amplifier from the TLV4316 series, designed for cost-optimized applications. The device features rail-to-rail input and output (RRIO), a 10 MHz gain bandwidth, and low supply current per channel (approx. 400 µA). Its supply voltage range of 1.8 V to 5.5 V makes it suitable for battery-powered systems. High electromagnetic interference (EMI) immunity, unity-gain stability, and low noise levels make this amplifier ideal for measurement systems, audio applications, active filters, and signal conditioning from sensors.

Properties

• Number of channels: 4
• Gain bandwidth product (GBW): 10 MHz
• Slew rate: 6 V/µs
• Input offset voltage (Vos): up to 3 mV
• Input bias current (Ib): 10 pA
• Supply voltage range: 1.8 V – 5.5 V
• Supply current: approx. 400 µA per channel
• Output current: up to 50 mA per channel
• CMRR: 90 dB
• Input voltage noise density: 12 nV/√Hz
• Input type: rail-to-rail
• Output type: rail-to-rail
• Common-mode input voltage range: 1.6 V – 5.7 V
• THD+N: 0.008%
• Operating temperature range: −40 °C to +125 °C

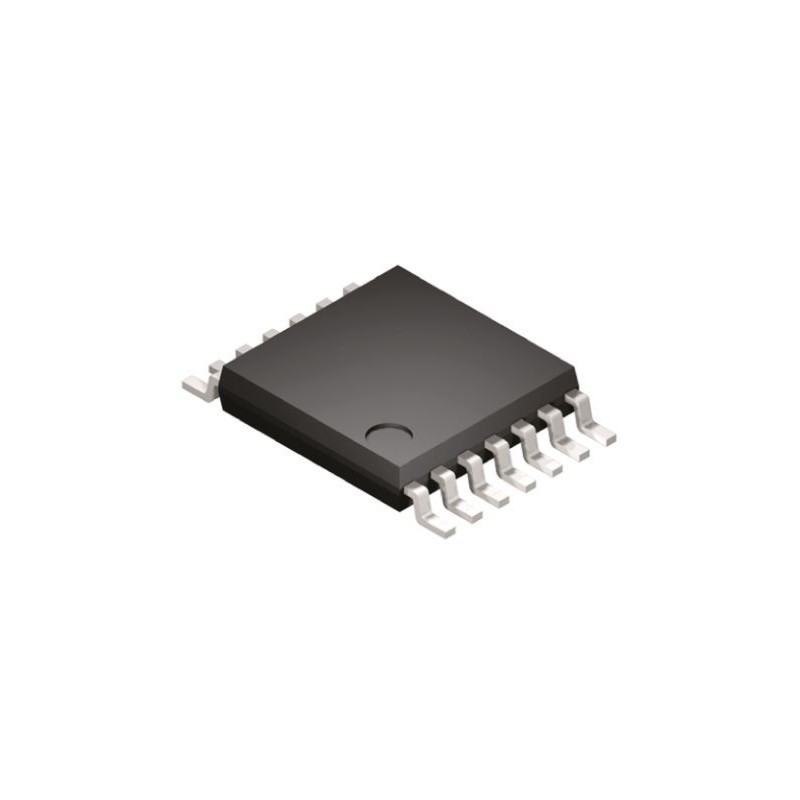

• Package: TSSOP-14
• Mounting style: SMD/SMT
• Amplifier type: CMOS
• Features: integrated EMI filter, ESD protection up to 4 kV (HBM)
• Unit weight: 140.3 mg
