BIQU AJAX TD1S - filament measuring device for multi-material 3D printing
ID: 1200070
zł400.43
Tax included
zł325.55 tax excl.
An innovative tool for precisely measuring light transmission (TD) through filament and capturing true colors in hex format, allowing for complete control over the quality of 3D prints. The device is equipped with an OLED display, USB-C power, and two operating modes—Quick Capture and Continuous Capture—for instant filament capture and monitoring of parameters during printing. Integration with HueForge software and support for swap-by-layer technology allows the TD1S to achieve realistic transparency effects, photorealistic finishes, and precise, multi-color designs. BIQU AJAX TD1S
Description

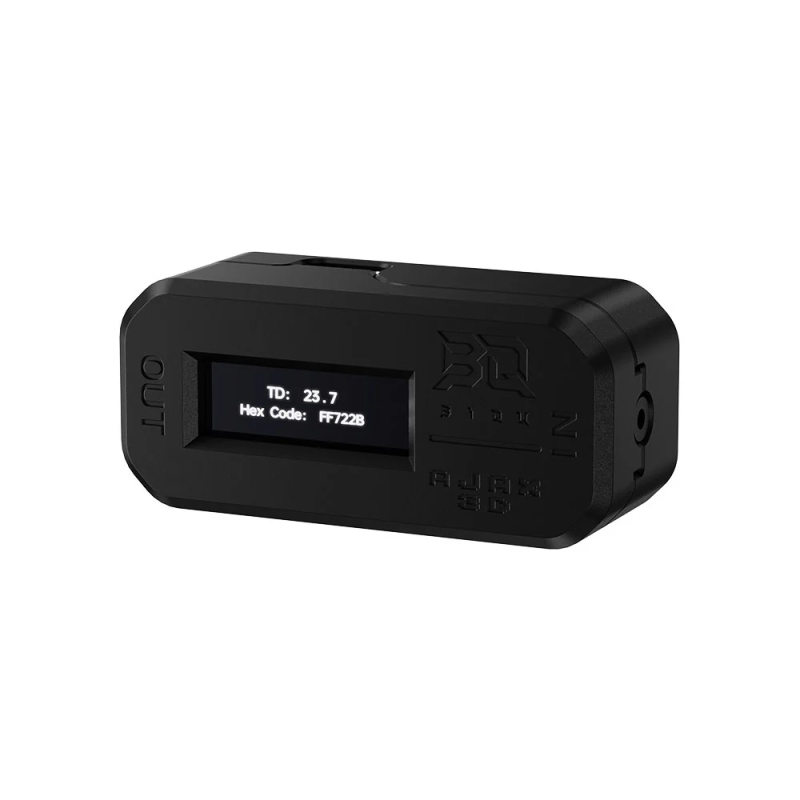

BIQU AJAX TD1S is an innovative device designed for precise measurement of transmittance distance (TD) through filament and for capturing the actual filament color in hex format. This tool gives users full control over 3D print quality, eliminating issues related to color differences and unpredictable results in multi-color projects. The device was developed in collaboration between BIQU and AJAX, two recognized leaders in the 3D printing industry, ensuring reliability and top-quality construction. Using advanced optical technology, the TD1S measures filament transmittance distance with ±7.5% accuracy, enabling realistic transparency effects and photorealistic finishes.
The function for recording exact color codes helps maintain project consistency and avoids differences between material batches. The collected data can be easily integrated with HueForge software, which automatically incorporates TD and color in the model creation process. Integration with Orca Slicer and Mainsail is planned, further streamlining workflow.
The device features a OLED display that shows all data in real-time, and USB-C power supply ensures convenience and compatibility with modern workstations. The TD1S operates in two modes: Quick Capture for rapid registration of new filaments, and Continuous Capture for ongoing monitoring during printing or production.
With the BIQU AJAX TD1S, the swap by layer technique can be applied, allowing filament changes on individual layers. Combined with varying TD values, this enables the creation of complex, multi-color images with high detail. The device opens new possibilities for designers, engineers, and 3D printing enthusiasts, offering precision, repeatability, and complete creative freedom. BIQU AJAX TD1S is not only a measurement tool but also a competitive advantage, elevating 3D print quality to a whole new level.
Features
- Transmittance distance (TD) measurement
- Real color capture in hex code
- TD measurement accuracy: ±7.5%
- Support for 1.75 mm filaments
- Display: OLED
- Real-time data preview
- Power supply: USB-C
- Operating modes: Quick Capture, Continuous Capture
- Integration: HueForge (current), planned compatibility with Orca Slicer and Mainsail
- Applications: 3D printing – multi-color, transparency, photorealistic effects
- Manufacturer: BIQU and AJAX (technology collaboration)
- Dimensions: 54.5 × 21.6 × 24.5 mm
Kit contains
- BIQU AJAX TD1S
- USB-C cable
- Packaging
1200070
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
