- New

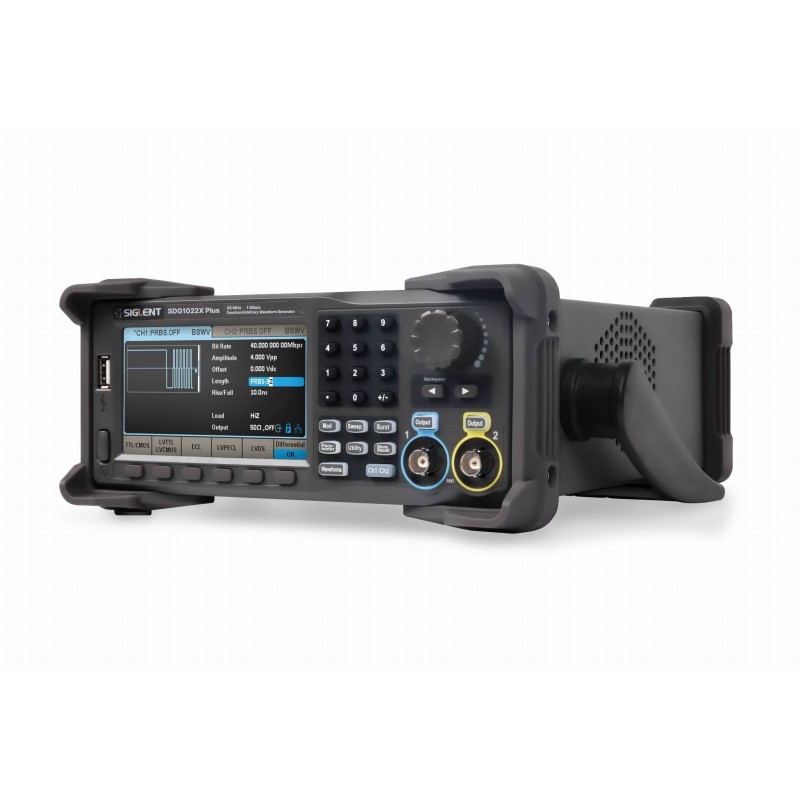

Siglent SDG1022X Plus - 2-channel 25MHz function generator
ID: 1199235
zł1,679.00
Tax included
zł1,365.04 tax excl.
This advanced dual-channel function generator features a 25MHz bandwidth and 1GSa/s sampling rate, offering precise arbitrary and square waveforms thanks to TrueArb and EasyPulse technologies. Featuring 16-bit resolution, amplitude up to 20Vpp, and features such as PRBS, analog/digital modulation, and a frequency counter, it's ideal for signal testing and measurement automation. The device supports remote control via LAN/USB and a web browser, and a 4.3-inch LCD screen ensures easy operation. Siglent SDG1022X Plus
Description
SIGLENT SDG1022X Plus is a modern dual-channel arbitrary waveform generator designed for demanding laboratory and industrial applications. It offers a bandwidth of up to 25 MHz and a sampling rate of 1 GSa/s, delivering outstanding signal precision and quality. Equipped with TrueArb and EasyPulse technologies, it overcomes the limitations of traditional DDS systems, ensuring low jitter distortion and high fidelity of square and arbitrary waveforms.
The generator supports advanced functions such as multi-pulse output, sequence waveform playback, and PRBS patterns up to 40 Mbps, making it perfect for testing dual-pulse powered devices. Its 16-bit vertical resolution allows for highly accurate and detailed waveform generation, which is critical for signals with a wide dynamic range. With a maximum output amplitude of 20 Vpp, the device is highly versatile for various test and measurement scenarios. Additionally, it offers a wide range of analog and digital modulations including AM, FM, PM, FSK, and PWM. Harmonic generation and waveform combining functions further expand its capabilities for advanced test scenarios.
User-friendly operation is ensured by the 4.3” color LCD display and intuitive user interface. Remote control is possible via a built-in web server, accessible through a browser, while communication interfaces like USB, LAN, and optional GPIB enable easy integration with automated test systems. Its compact and robust design makes it suitable for both bench-top and mobile use. The SIGLENT SDG1022X Plus is ideal for electronics, telecommunications, embedded systems, and technical education, combining advanced technical features with ease of use to make it one of the most competitive instruments in its class.
Features
- Dual-channel arbitrary waveform generator
- Max output frequency: 25 MHz
- Max output amplitude: 20 Vpp
- Sampling rate: 1 GSa/s
- Vertical resolution: 16-bit
- TrueArb technology: Arb up to 8 Mpts, 1 μSa/s to 250 MSa/s
- Supports sequence waveform and multi-pulse modes
- PRBS up to 40 Mbps
- 196 built-in arbitrary waveforms
- Modulations: AM, DSB-AM, FM, PM, FSK, ASK, PSK, PWM
- Functions: Sweep, Burst, harmonics, waveform combining
- High-precision frequency counter
- Display: 4.3” LCD
- Interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), optional GPIB
- Built-in WebServer – browser-based control
- Dimensions: 260 × 107 × 296 mm
Kit contains
- SIGLENT SDG1022X Plus
- Power cord
- Calibration certificate
- USB cable
