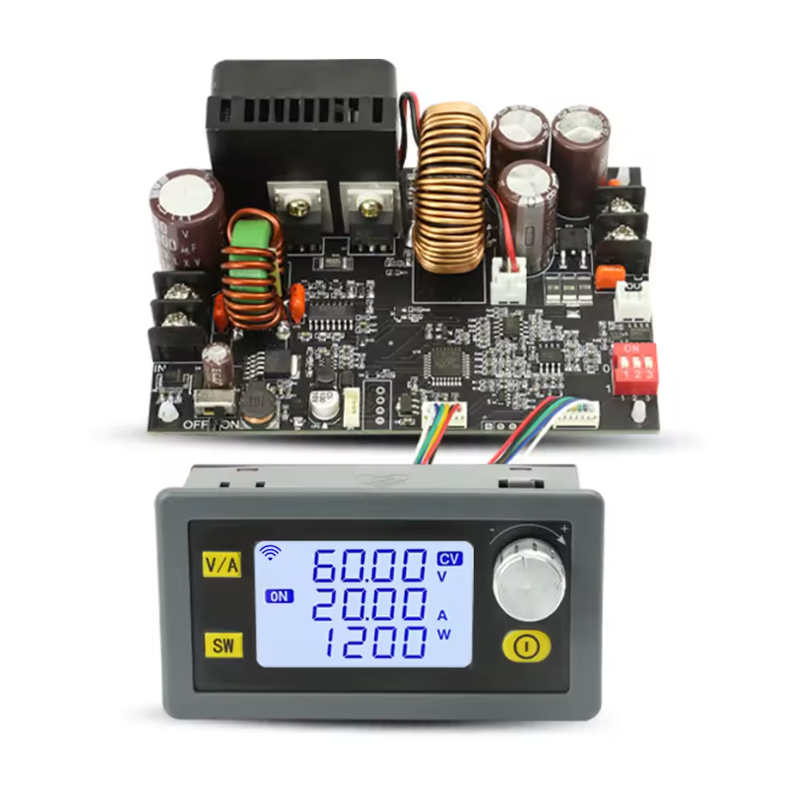

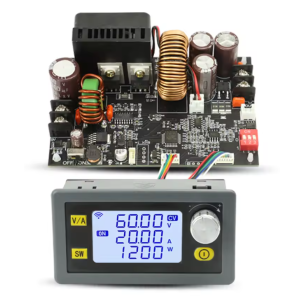

This regulated DC-DC buck switching power supply supports an input voltage of 6 to 70V and an output voltage of 0 to 60V at a current rating of up to 15A (20A peak). It features high-precision voltage and current displays and quick-select switches for standard voltages. The module features an intelligent cooling system and numerous safety features, making it a safe and reliable solution for precision powering electronics, battery testers, LED systems, and industrial applications. XY6015L

24h
Available
Available quantity: 2

Description

The XY6015L DC-DC Buck Converter is an advanced, adjustable switching power supply that allows precise control of output voltage and current over a wide range. The device supports input voltages from 6 V to 70 V and enables setting the output voltage from 0–60 V with a maximum current of up to 15 A (momentarily up to 20 A). With low output ripple (typically 100 mV VPP) and high power output up to 900 W (maximum 1200 W), the module is suitable for various industrial and hobby applications requiring stable power. The module features displays for setting and monitoring voltage with 0.01 V resolution and current with 0.01 A resolution, with accuracy of ±0.4% for voltage and ±0.5% for current.


The module is equipped with three configuration switches that allow setting a fixed output voltage without manual configuration on the control panel. This enables the user to quickly select one of the predefined voltage levels: 5 V, 9 V, 12 V, 24 V, 36 V, 48 V, or 60 V. The switches operate independently of other settings and provide stable output voltage immediately after powering the module. This feature significantly simplifies work in projects where standard voltage levels are often used, and reduces the risk of incorrect user input, increasing safety and convenience.

The device features an intelligent cooling system, in which the fan automatically turns on when current exceeds 2 A, power exceeds 50 W, or temperature exceeds 50°C, and turns off when conditions fall below safe thresholds. The module includes multiple protections, such as input overvoltage and undervoltage, output overcurrent, power overload, overheating, time limit, and excessive capacitance and energy. Additionally, it is possible to set limits for external temperature, maximum capacitance, and energy, allowing full control over the device’s operation. The module is ideal for powering projects requiring precise and adjustable current and voltage sources, such as electronics, battery testers, LED systems, or industrial devices. Its robust construction, precise measurements, and comprehensive protection features ensure safe and stable operation over a long period.


Features

  • Type: adjustable DC-DC buck converter
  • Input voltage: 6 V to 70 V
  • Output voltage: 0 to 60 V
  • Maximum output current: 15 A (momentarily up to 20 A)
  • Output ripple: typically 100 mV VPP
  • Output power: 0 to 900 W (max. 1200 W)
  • Voltage setting resolution: 0.01 V
  • Current setting resolution: 0.01 A
  • Voltage accuracy: ±0.4%
  • Current accuracy: ±0.5%
  • Built-in fan with automatic control
  • Comprehensive protections: overvoltage, undervoltage, overcurrent, power overload, overheating, time limit, excessive capacitance and energy
  • Adjustable protection and operational limits
  • Power supply dimensions: 109 x 72 x 42 mm
  • Control panel dimensions: 79 x 43 x 27 mm

Kit contains

  • Power supply module
  • Control panel
  • Set of wires
1187657

Data sheet

Output voltage
0 - 60 V
Output current
15 A
Converter type
Step-down
Supply voltage min
6 V
Supply voltages max
70 V
