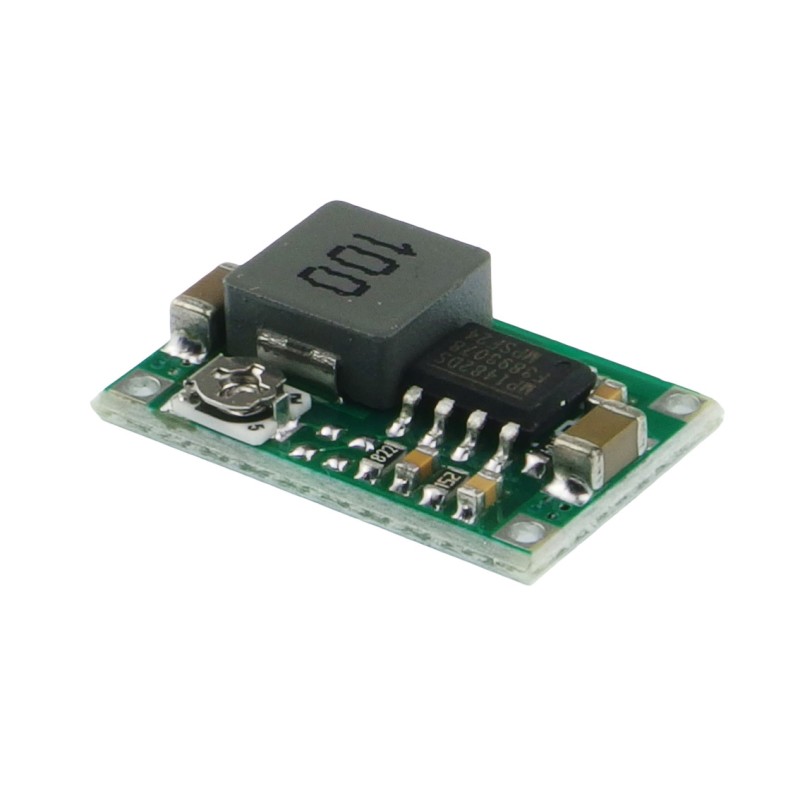

Step-down converter module 1-17V 1,8A
ID: 581555
5906623458783
zł6.84
Tax included
zł5.56 tax excl.
Step-Down converter module with input voltage from 4.75 to 23V, output voltage from 1 to 17V and output current 1.8 A (3 A instantaneous current).
Description
Step-Down converter module with input voltage from 4.75 V to 23 V, output voltage from 1 V to 17 V and output current of 1.8 A (3 A instantaneous current). The converter achieves an efficiency of up to 96%. The value of the output voltage is regulated by a potentiometer.
Features
- Input voltage: 4.75V to 23V
- Output voltage: 1V to 17V
- Output current: 3 A momentary, 1.8 A continuous
- Efficiency: 96%
- Switching frequency: 340KHz
- Ripple at output: 340 mV
- Load regulation: +/- 0.5%
- Voltage regulation: +/- 2.5%
- Working temperature: -40 ° C to 85 ° C
- Dimensions: 17 x 11 x 3.8 mm
581555
Data sheet
- Output voltage
- 1 - 17 V
- Output current
- 1,8 A
- Converter type
- Step-down
- Supply voltage min
- 4,75 V
- Supply voltages max
- 23 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
