SL-MIPI-DSI-eDP-CNV v1.1 – MIPI-DSI to eDP interface converter
search
  • SL-MIPI-DSI-eDP-CNV v1.1 – MIPI-DSI to eDP interface converter
ID: 1197802
zł107.87
Tax included

zł87.70 tax excl.

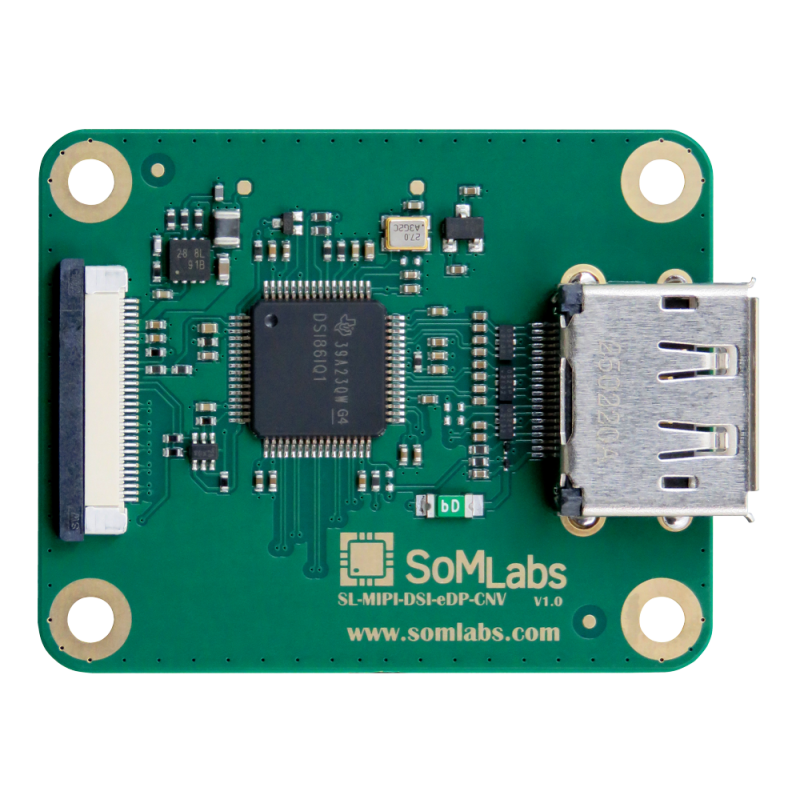

SL-MIPI-DSI-eDP-CNV v1.1 enables the conversion of MIPI-DSI signals to eDP, supporting resolutions up to 4K at 60 fps. The module is designed for SoMLabs boards but is also suitable for other MCU/MPU systems, offering a flexible solution for image display with an eDP interface.

24h
Available
Available quantity: 9

Description

Module converting video signal from the MIPI-DSI interface to embedded DisplayPort (eDP), based on the SN65DSI86 chip. Compatible with the MIPI-DSI bus (DSI1.02, D-PHY 1.1) and the eDP 1.4 standard. Supports data transmission using 1 to 4 MIPI data lanes with a maximum throughput of up to 6 Gb/s. Enables image display at resolutions up to 4096 × 2304 px at 18 bpp or 1920 × 1080 px at 120 fps and 24 bpp. The module is designed for SoMLabs baseboards equipped with a MIPI-DSI output with an FPC30 connector but can also be used with other MCU/MPU systems. Connection to the carrier board is made via an FPC30 A-A type ribbon cable. The module operates in an extended temperature range and is supported by Linux systems dedicated to SoMLabs modules.

Features

  • Input interface: MIPI-DSI (DSI1.02)
  • Number of MIPI data lanes: 1–4 (up to 1.5 Gb/s each)
  • Output interface: eDP (embedded DisplayPort)
  • Supported output formats:
  • 4096 × 2304 px @ 18 bpp
  • 2560 × 1600 px @ 60 fps
  • 1920 × 1080 px @ 120 fps @ 24 bpp
  • Video standard: eDP 1.4
  • Input connector: FPC30 (SoMLabs MIPI-DSI standard)
  • MIPI cable type: FPC30, A-A polarization
  • Operating temperature range: –40 ÷ +85 °C
  • Software support in SoMLabs Linux systems
