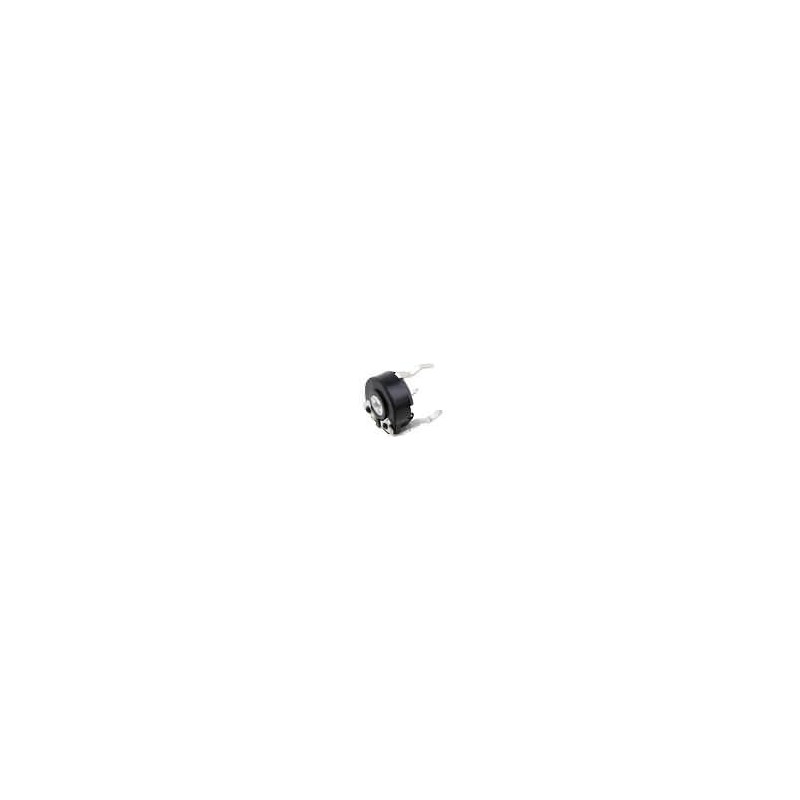

PT6LV-10K – 10 kΩ Linear Trimming Potentiometer THT
search
  • PT6LV-10K – 10 kΩ Linear Trimming Potentiometer THT
ID: 26897
5906623498239
zł1.89
Tax included

zł1.54 tax excl.

PT6LV-10K is a compact linear THT potentiometer with 10 kΩ resistance, designed for precise adjustment tasks in electronic circuits

24h
Available
Available quantity: 848

Description

The PT6LV-10K by PIHER is a single-turn linear trimming potentiometer with a nominal resistance of 10 kΩ, designed for through-hole (THT) mounting. Ideal for signal adjustment, calibration, and fine-tuning in electronic circuits, this compact potentiometer features a power rating of 0.1 W and a maximum operating voltage of 100 V. The compact body (Ø6.3 mm x 3.3 mm) makes it suitable for space-constrained applications.

It features a carbon track, linear response, low rotational torque (0.2 to 2 Ncm), and an electrical rotation angle of 220° ±20°. The lead pitch is 5x5 mm, and the resistance tolerance is ±20%.

Features

  • Manufacturer: PIHER
  • Model: PT6LV-10K
  • Type: trimming potentiometer
  • Mounting: THT
  • Rotation: single-turn
  • Resistance: 10 kΩ
  • Tolerance: ±20%
  • Power rating: 0.1 W
  • Max operating voltage: 100 V
  • Track material: carbon
  • Shaft torque: 0.2...2 Ncm
  • Electrical angle: 220° ±20°
  • Mechanical angle: 235° ±5°
  • Lead pitch: 5x5 mm
  • Body dimensions: Ø6.3 x 3.3 mm
  • Temperature range: –25°C to +70°C
  • Series: PT6LV
