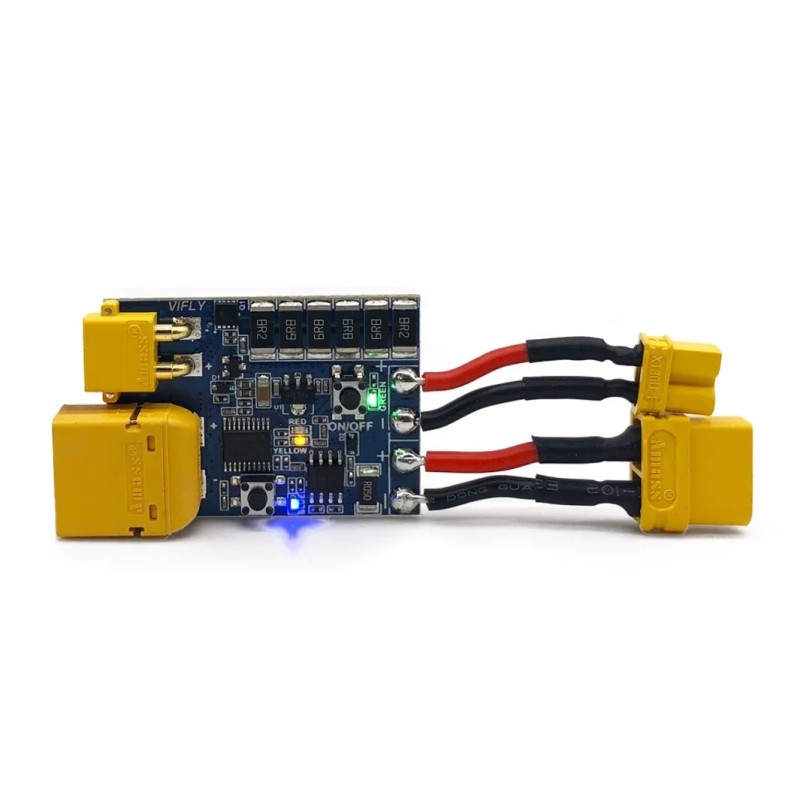

Main view
search
  • Main view
  • Kit
ID: 1209240
5902186341074
zł52.96
Tax included

zł43.06 tax excl.

Electronic protection device designed to protect RC systems and drone electronics during initial power-up, diagnostics and power system testing. When a short circuit or the selected 1 A or 2 A current threshold is exceeded, the device cuts off the current flow, reducing the risk of component damage. VIFLY ShortSaver V2

24h
Available
Available quantity: 19

Description

Electronic short-circuit protection uses an electronic fuse that completely cuts off power to the protected circuit when a short circuit is detected. The protection reacts to a short circuit in approximately 3 ms, while the trip time for overcurrent conditions is approximately 10 ms. The selectable 1 A / 2 A current threshold allows operation to be adapted to small systems with more sensitive electronics or larger builds with higher current requirements.


The device supports an input voltage from 7 V to 25 V, corresponding to 2S-6S LiPo battery packs. XT30 and XT60 connectors available on both the input and output sides support different power configurations without additional adapters. The built-in ON/OFF switch allows power to be controlled without disconnecting the battery and also facilitates procedures such as RC receiver binding.

Features

  • Protection type: electronic fuse
  • Application: protection of RC and drone electronics during initial power-up and testing
  • Complete current cut-off when a short circuit is detected
  • Selectable current threshold: 1 A / 2 A
  • Short-circuit trip time: 3 ms
  • Overcurrent trip time: 10 ms
  • Input voltage: 7 - 25 V
  • Supported LiPo battery packs: 2S-6S
  • Input connectors: XT30 and XT60
  • Output connectors: XT30 and XT60
  • Built-in ON/OFF power switch
  • Dimensions: 42 x 30 x 10 mm

Kit includes

  • VIFLY ShortSaver V2
  • User manual
