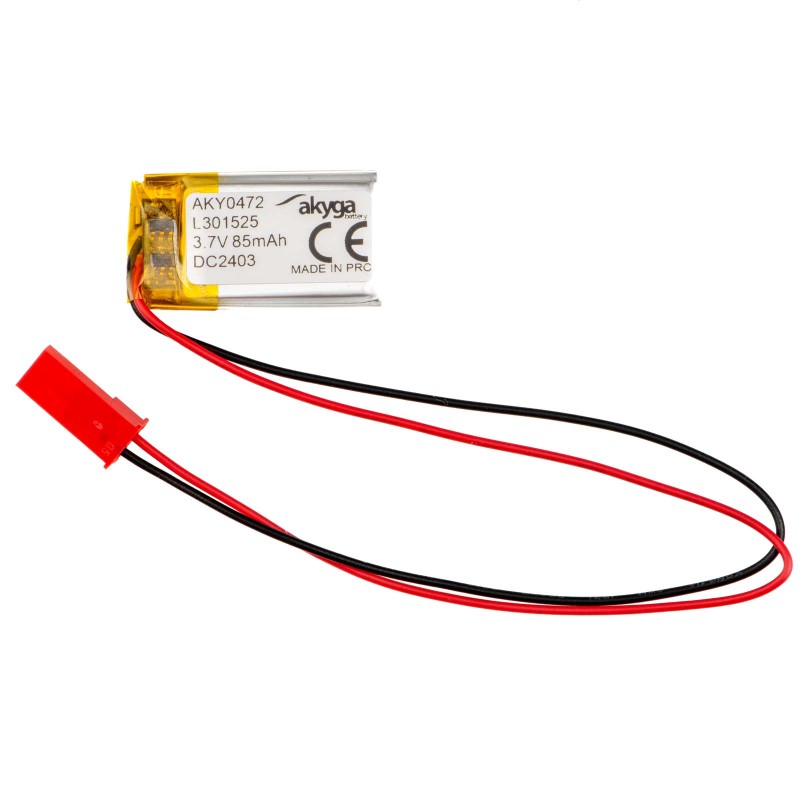

AKY0472 – front view
search
  • AKY0472 – front view
  • AKY0472 – rear view
ID: 1202726
5906574243278
zł14.32
Tax included

zł11.64 tax excl.

Lithium-polymer Li-Po battery with a nominal voltage of 3.7V and a capacity of 85mAh, equipped with a PCM protection circuit and a lead with a JST 2.54 2-pin connector, 150mm long. Akyga AKY0472

24h
Available
Available quantity: 3

Description

Akyga AKY0472 is intended for powering electronic devices operating at a nominal voltage of 3.7V. The LP301525 cell format provides a capacity of 85mAh and a very compact, flat construction, enabling installation in devices with minimal available internal space, such as miniature portable electronics, sensors, and small embedded projects.

The integrated PCM protection circuit supervises charging and discharging processes, reducing the risk of damage caused by overcharging, deep discharge, short circuit, and overcurrent. The battery is connected via a 150mm lead terminated with a 2-pin JST 2.54 connector, allowing direct connection to development boards, power supply modules, and charging controllers. The AKY0472 model is used in consumer electronics, IoT systems, and electronic projects requiring very small Li-Po power sources.

Warning!

Before installation, read and follow the safety guidelines for lithium-polymer batteries. Improper use may result in damage to the battery!

Features

  • Battery type: lithium-polymer Li-Po
  • Cell format: LP301525
  • Nominal voltage: 3.7V
  • Nominal capacity: 85mAh
  • Configuration: 1S
  • Number of cells: 1
  • Protection circuit: PCM
  • Rechargeable: yes
  • Connector: JST 2.54 2-pin
  • Cable length: 150mm
  • Lead type: wires
  • Application: powering electronic devices operating at 3.7V
  • Cell dimensions: 25.5 x 15 x 3 mm
  • Overall dimensions: 27.5 x 16 x 3.5 mm
  • Weight: 3 g

Kit includes

  • 1x Lithium-polymer Li-Po battery with cable and JST 2.54 2-pin connector
1202726

Data sheet

Battery type
Li-Po
Other
Output voltage
3.7V
Battery capacity
85 mAh
Battery configuration
1S
Number of cells
1
Output/Connector
JST 2,54 mm
Length
25,5 mm
Width
15 mm
Thickness
3mm
Weight
3 g
