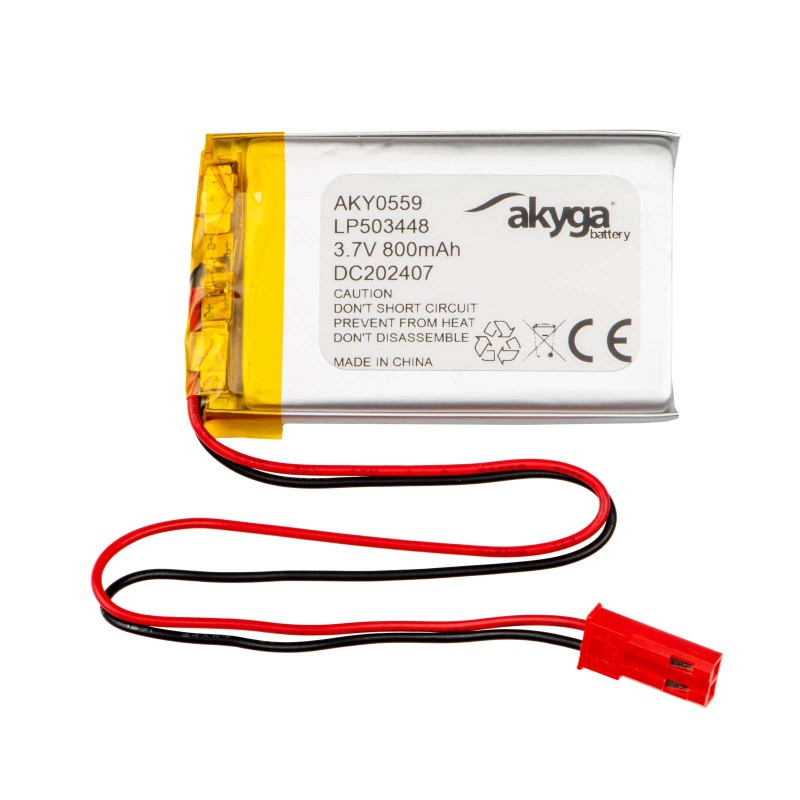

AKY0559 – front view
search
  • AKY0559 – front view
  • AKY0559 – rear view
ID: 1202741
5906574243438

Lithium-polymer Li-Po battery with a nominal voltage of 3.7V and a capacity of 800mAh, equipped with a PCM protection circuit and a lead with a JST 2.54 2-pin connector, 150mm long. Akyga AKY0559

Retired

Description

Akyga AKY0559 is intended for powering electronic devices operating at a nominal voltage of 3.7V. The LP503448 cell format provides a capacity of 800mAh and a flat construction, enabling installation in enclosures with limited internal space, such as portable electronics, control modules, and embedded projects.

The integrated PCM protection circuit supervises charging and discharging processes, reducing the risk of damage caused by overcharging, deep discharge, short circuit, and overcurrent. The battery is connected via a 150mm lead terminated with a 2-pin JST 2.54 connector, allowing direct connection to development boards, power supply modules, and charging controllers. The AKY0559 model is used in consumer electronics, IoT systems, robotics, and electronic projects requiring compact Li-Po power sources.

Warning!

Before installation, read and follow the safety guidelines for lithium-polymer batteries. Improper use may result in damage to the battery!

Features

  • Battery type: lithium-polymer Li-Po
  • Cell format: LP503448
  • Nominal voltage: 3.7V
  • Nominal capacity: 800mAh
  • Configuration: 1S
  • Number of cells: 1
  • Protection circuit: PCM
  • Rechargeable: yes
  • Connector: JST 2.54 2-pin
  • Cable length: 150mm
  • Lead type: wires
  • Application: powering electronic devices operating at 3.7V

Kit includes

  • 1x Lithium-polymer Li-Po battery with cable and JST 2.54 2-pin connector
1202741

Data sheet

Battery type
Li-Po
Other
Output voltage
3.7V
Battery capacity
800 mAh
Battery configuration
1S
Number of cells
1
Output/Connector
JST 2,54 mm
Length
48mm
Width
34mm
Thickness
5mm
Weight
16g
