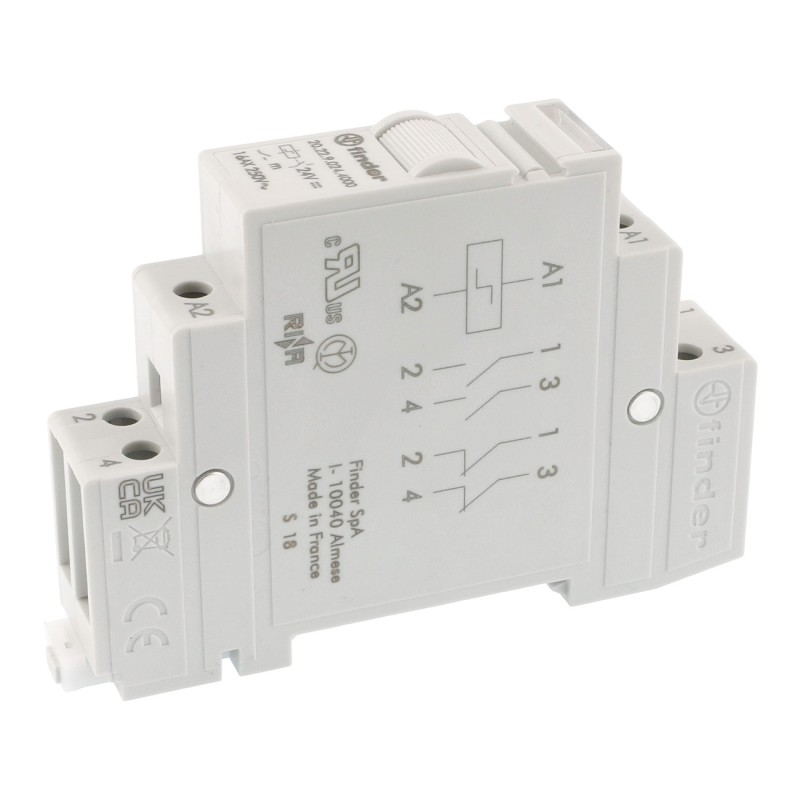

Installation relay 16 A 24 V DC Finder 20.22.9.024.4000
ID: 1199145
8012823266930
zł124.38
Tax included
zł101.12 tax excl.
The Finder 20.22.9.024.4000 relay enables control of loads up to 16 A using a 24 V DC pulse signal. The double NO contact configuration and DIN rail mounting make it suitable for electrical installations requiring energy-efficient and reliable switching.
Description
Installation relay from the 20.22 series designed for DIN rail mounting, equipped with two normally open (NO) contacts with a maximum operating current of 16 A. The bistable (impulse) design allows changing the output state with a short control pulse, which helps reduce the coil’s power consumption. The device operates with a 24 V DC control voltage and offers two operating modes, enabling adaptation to installation requirements. The IP20-rated housing provides protection against accidental contact with live parts.
Properties
- type: installation relay
- version: bistable (impulse)
- contact configuration: 2×NO
- coil voltage: 24 V DC
- contact current: max. 16 A
- number of operating modes: 2
- mounting: DIN rail
- series: 20.22
- operating temperature: from −40 °C to +40 °C
- protection class: IP20
- gross weight: 108.1 g
1199145
Data sheet
- Output current
- 16 A
- Number of channels
- 2
- Executive element
- Installation relay
- Coil voltage
- 24 VDC
Manufacturer FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland finder.pl@findernet.com
Responsible person FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland formularz kontaktowy na stronie osoby odpowiedzialnej
