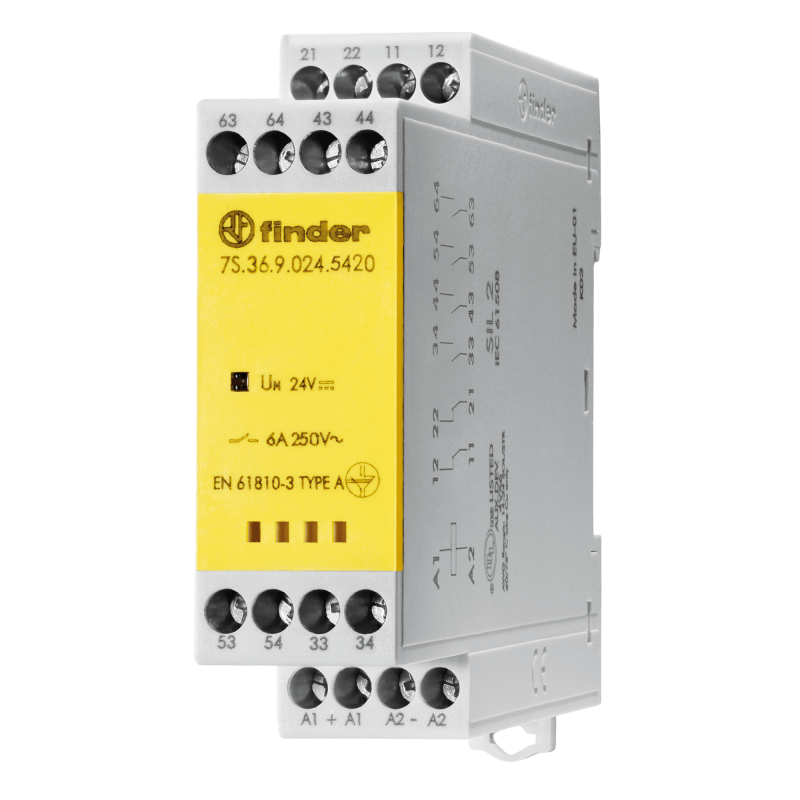

Safety relay 24VDC - Finder 7S.36.9.024.5420
ID: 1203908
8012823421049
zł364.22
Tax included
zł296.11 tax excl.
Modular relay with mechanically linked 4NO + 2NC contacts for safety circuits, DIN rail mounting, 6 A contact rating, 24 V DC supply. Finder 7S.36.9.024.5420
Description
Finder 7S.36.9.024.5420 modular safety relay designed for control circuits and safety systems in industrial machinery and equipment. Mechanically linked contacts compliant with EN 61810-3 Class A enable switching status monitoring in applications requiring forcibly guided contacts.
The 22.5 mm wide housing supports mounting on a 35 mm DIN rail according to EN 60715. The module operates with a 24 V DC supply voltage in the range of 16.8 V to 30 V DC. Screw terminals provide stable wire connection, while AgSnO2 + Au contact material enables operation with loads up to 6 A. The construction supports operation in a wide temperature range and industrial or railway applications.
Features
- Contact configuration: 4 NO + 2 NC
- Number of contacts: 6
- Contact rated current: 6 A
- Coil supply voltage: 24 V DC
- Supply voltage range: 16.8 - 30 V DC
- Rated coil power: 1 W
- Coil current consumption: 42.2 mA
- Holding voltage: 13.2 V
- Drop-out voltage: 2.4 V
- Coil and contact insulation: 6 kV
- Contact material: AgSnO2 + Au
- Electrical durability: 100000 cycles
- DIN rail 35 mm mounting
- Screw terminals
- Operating temperature: -40°C ~ 70°C
- Dimensions: 22.5 x 78.8 x 96 mm
1203908
Data sheet
- Output current
- 6A
- Number of channels
- 6
- Executive element
- Przekaźnik elektromagnetyczny
- Coil voltage
- 24 VDC
