Relay 24VDC 10A 2P - Finder 55.32.9.024.0094
ID: 1203887
5902186336032
zł32.34
Tax included
zł26.29 tax excl.

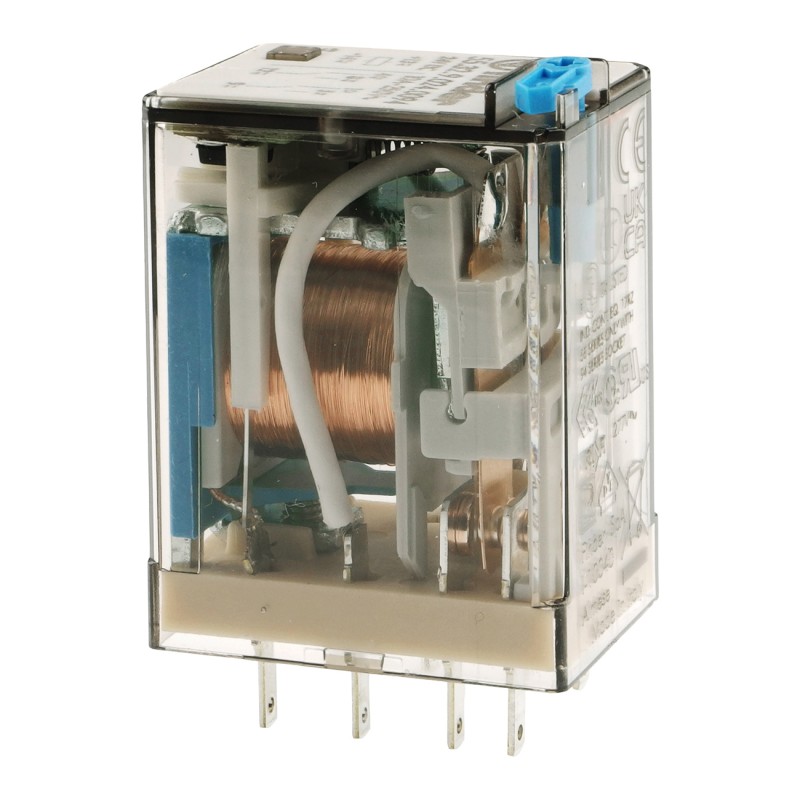

Miniature industrial 2P 10 A relay for series 94 sockets, 24 V DC coil, test button with locking function, LED and flyback diode. Finder 55.32.9.024.0094
Description
Miniature industrial plug-in relay designed for use with series 94 sockets. The design with 2 changeover contacts enables control of loads up to 10 A in automation systems, machinery and industrial installations. The relay is equipped with a test button with contact locking function, mechanical status indicator, LED and flyback diode, with “+” marking on A1/13 and neutral polarity.
The 24 V DC coil operates within a range of 19.2...26.4 V, with a rated power of 1 W and current consumption of 40 mA. Rated contact current is 10 A at 250 V AC, contact material AgNi. Coil to contact insulation is 4 kV.
Operating temperature range is -40°C ~ 85°C, electrical endurance 200000 cycles. Dimensions 20.7 x 37.2 x 27.7 mm.
Features
- Contact configuration: 2 changeover contacts
- Rated contact current: 10 A
- Contact material: AgNi
- Rated contact voltage: 250 V AC
- Coil supply voltage: 24 V DC
- DC supply voltage range: 19.2...26.4 V
- Rated power DC: 1 W
- Coil resistance: 600 Ω
- Current consumption: 40 mA
- Holding voltage: 12 V
- Drop-out voltage: 2.4 V
- Insulation coil/contacts: 4 kV
- Version: for series 94 sockets
- Equipment: test button with locking function, LED, flyback diode
- Operating temperature: -40°C ~ 85°C
- Electrical endurance: 200000 cycles
- Dimensions: 20.7 x 37.2 x 27.7 mm
1203887
Data sheet
- Output current
- 10A
- Number of channels
- 2
- Executive element
- Przekaźnik elektromagnetyczny
- Coil voltage
- 24 VDC
Manufacturer FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland finder.pl@findernet.com
Responsible person FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland formularz kontaktowy na stronie osoby odpowiedzialnej
