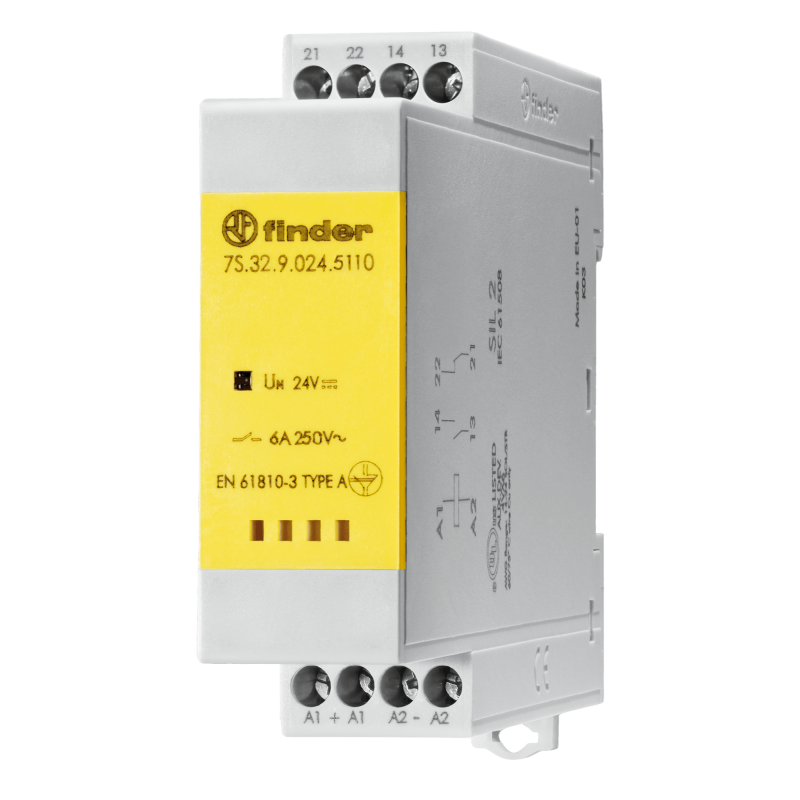

Safety relay 24VDC - Finder 7S.32.9.024.5110
ID: 1203914
8012823420288
zł152.91
Tax included
zł124.32 tax excl.
Modular relay with mechanically linked contacts 1NO + 1NC for safety circuits, DIN rail mounting, 6 A contact rating, 24 V DC coil supply. Finder 7S.32.9.024.5110
Description
Finder 7S.32.9.024.5110 modular safety relay designed for control circuits and machine safety systems. Mechanically linked contacts compliant with EN 61810-3 Class A allow monitoring of correct switching operation in applications requiring forcibly guided contacts.
The housing supports mounting on a 35 mm DIN rail according to EN 60715. The module operates with a 24 V DC supply voltage in the range of 16.8 V to 30 V DC. AgNi + Au contact material provides stable operation with loads up to 6 A. The 22.5 mm wide housing allows installation in standard control cabinets and industrial or railway automation systems.
Features
- Contact configuration: 1 NO + 1 NC
- Contact rated current: 6 A
- Coil supply voltage: 24 V DC
- Supply voltage range: 16.8 - 30 V DC
- Rated coil power: 0.9 W
- Coil current consumption: 38.2 mA
- Holding voltage: 10.8 V
- Drop-out voltage: 2.4 V
- Coil/contact insulation: 6 kV
- Contact material: AgNi + Au
- Electrical durability: 100000 cycles
- DIN rail 35 mm mounting
- Screw terminals
- Operating temperature: -40°C ~ 70°C
- Dimensions: 22.5 x 78.8 x 96 mm
1203914
Data sheet
- Output current
- 6A
- Number of channels
- 2
- Executive element
- Przekaźnik elektromagnetyczny
- Coil voltage
- 24 VDC
Manufacturer FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland finder.pl@findernet.com
Responsible person FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland formularz kontaktowy na stronie osoby odpowiedzialnej
