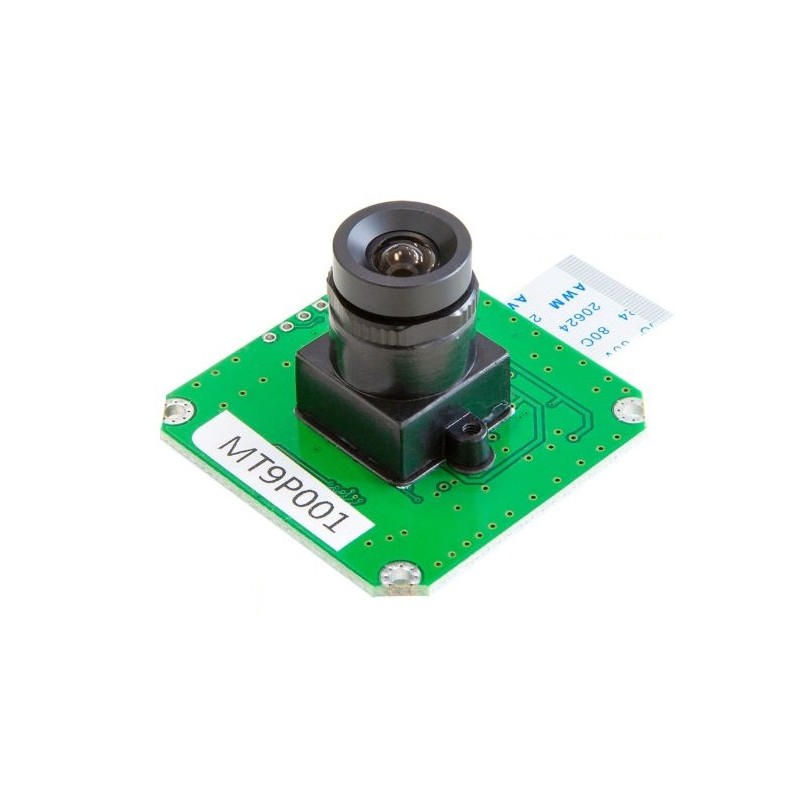

ArduCAM 5MP MT9P001 Color Camera - camera with 5MP MT9P001 sensor
ID: 1195295
The MT9P001 CMOS sensor camera module offers 5MP resolution and high image quality thanks to DigitalClarity™ technology, even in low light. The camera supports global shutter, snapshot mode, and long exposure, enabling precise exposure control and capturing dynamic scenes. Its compact size, low power consumption, and wide range of configuration features make it an ideal choice for advanced DIY projects and image processing systems. ArduCAM B0127
Description
The ArducCAM 5MP MT9P001 is a color camera module based on Micron’s CMOS image sensor – the MT9P001, offering a 5-megapixel resolution (2592 × 1944). Utilizing DigitalClarity™ technology, it delivers high signal-to-noise ratio and excellent low-light sensitivity, comparable to CCD cameras. The camera features a Global Shutter (Global Reset Release), snapshot mode, and bulb-type exposure control, enabling frame capture on demand and precise control over exposure time.
The kit includes a 6 mm M12 lens, providing good sharpness and field of view for a variety of applications. The module supports software control of parameters such as gain, resolution, exposure time, and frame rate. It also offers advanced functions like column/row skipping, binning, and image mirroring. Thanks to its compact size and low power consumption, the camera is well-suited for DIY projects, vision systems, digital cameras, webcams, or mobile devices. It’s an ideal solution for advanced users and developers working on image processing–based systems.
Features
- Sensor: Micron MT9P001, CMOS 1/2.5”
- Resolution: 5MP (2592 x 1944)
- Pixel size: 2.2μm x 2.2μm
- Sensor active area: 5.70 mm × 4.28 mm (7.13 mm diagonal)
- Color filter: RGB Bayer
- Shutter: Global Reset Release (snapshot only), Rolling Shutter
- Sensitivity: 0.53 V/lux-sec at 550 nm
- Pixel dynamic range: 66.5 dB
- Max SNR: 40.5 dB
- ADC resolution: 12-bit, integrated
- Readout rate: up to 96 Mp/s at 2.8V I/O
- Frame rate:
- Full resolution: up to 12 fps
- VGA (640 × 480): up to 30 fps
- Image functions: binning, skipping, mirror (H/V), snapshot
- Interface: 2-wire serial interface
- Power consumption: < 317 mW
- Operating temperature: –30°C to +70°C
- Lens: M12, 6 mm focal length
1195295
Data sheet
- Resolution
- 5MPx
- Interface
- Szeregowy
- Sensor
- MT9P001
- IR filter
- Yes
- Lens assembly
- M12
