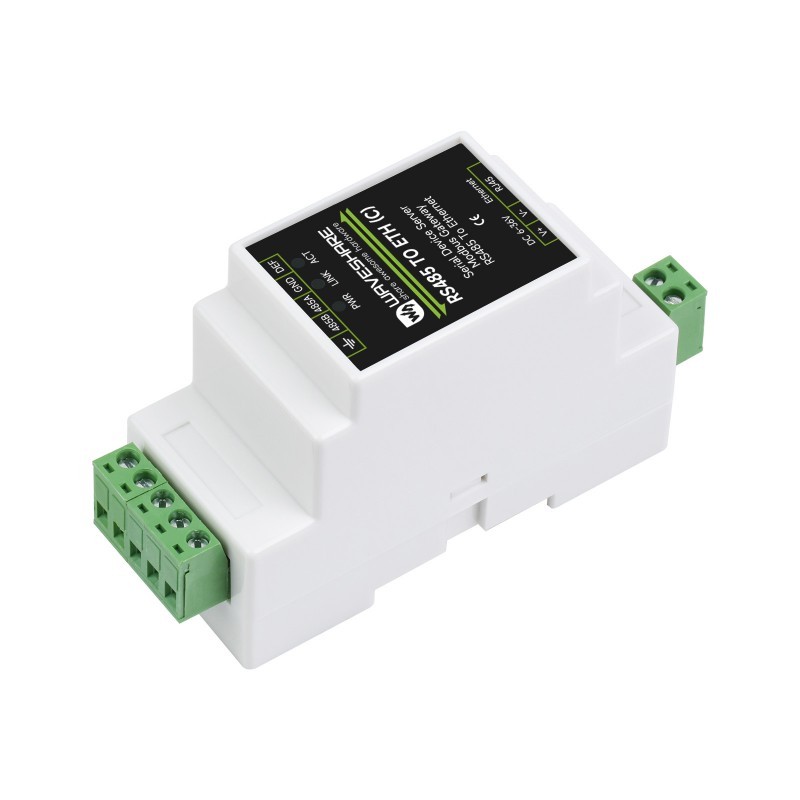

Waveshare RS485 TO ETH (C) – industrial RS485-to-Ethernet (RJ45) serial device server with isolation and DIN rail mounting
ID: 1197674
zł78.52
Tax included
zł63.84 tax excl.
RS485 TO ETH (C) is an industrial communication converter offering secure and flexible data transmission between RS485 devices and an Ethernet network. Thanks to galvanic isolation, a wide power supply voltage range, and support for industrial and cloud protocols, it is well-suited for advanced IoT applications, automation, intelligent monitoring, and integration with cloud platforms.
Description
The RS485 TO ETH (C) is an industrial RS485-to-Ethernet (RJ45) converter designed for reliable data transmission in industrial environments. The module enables bidirectional, transparent data communication between RS485 and Ethernet using the TCP/IP protocol. It also supports Modbus gateway functions, MQTT, and conversion of RS485 data to JSON format. The “C” version features galvanic isolation for both power and signal, as well as an extended power input range of 6–36 V DC. The enclosure allows for DIN rail mounting. The device is ideal for data acquisition, automation systems, IoT applications, and cloud integration.
Features
- Transparent data transmission RS485 ↔ Ethernet
- RS485 port with signal isolation
- Power supply: 6–36 V DC via screw terminal, with power isolation
- 10/100M Ethernet RJ45 port with 2 kV surge protection
- Supports TCP Server, TCP Client, UDP, UDP Multicast modes
- Protocols supported: TCP, UDP, HTTP, MQTT, JSON, Modbus
- Can operate as a Modbus gateway, JSON converter, or MQTT gateway
- Supports multiple hosts (multi roll-polling)
- Configurable registration and heartbeat packets
- Time synchronization via NTP
- Configuration via web browser, supports DHCP and DNS
- Enclosure supports DIN rail mounting
- Operating temperature range: –40°C to +85°C
- Dimensions: 88.7 × 72.5 × 24.2 mm
1197674
