Hi-Speed JTAG/SWD Emulator for ARM7/9, Cortex and Renesas RX cores with USB interface, Segger

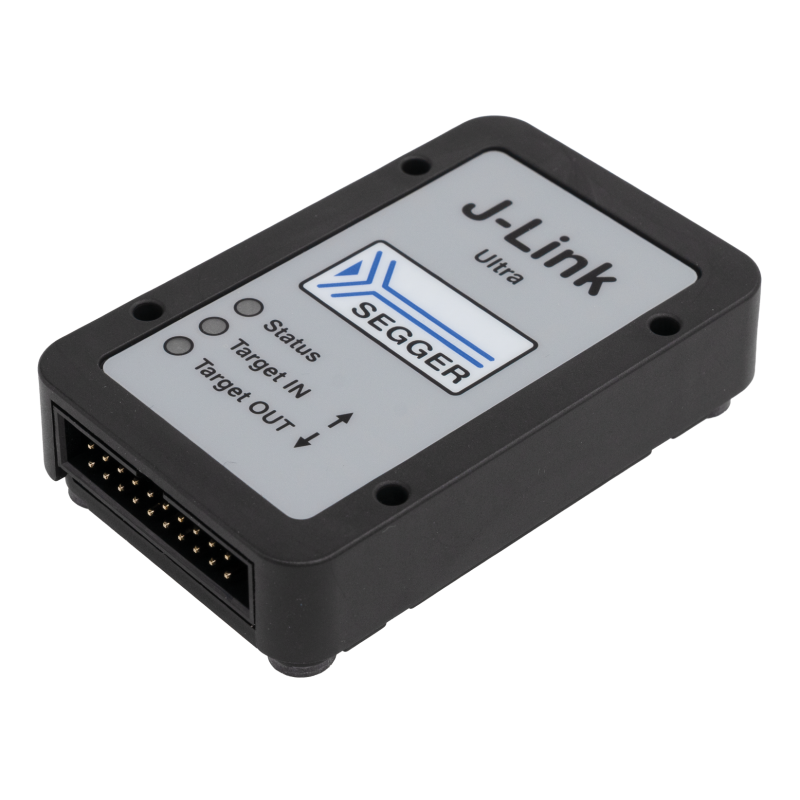

J-Link Ultra+ is a JTAG/SWD emulator designed for ARM/Cortex and other supported CPUs. It is fully compatible to the standard J-Link and works with the same PC software.

Based on the highly optimized and proven J-Link, it offers even higher speed as well as target power measurement capabilities due to the faster CPU, built-in FPGA and High speed USB interface.
It connects via USB to a PC running Microsoft Windows 2000, Windows XP, Windows 2003, Windows Vista or Windows 7. J-Link Ultra+ has a built-in 20-pin JTAG/SWD connector and comes with licenses for Unlimited Flash Breakpoints, RDI and J-Flash.


By adding licenses for all J-Link related software packages to J-Link Ultra, the developer receives access to an unlimited number of breakpoints in flash memory, production grade flash programming and compatibility with all popular tool-chains (click here for a list of all toolchains which come with native J-Link Support), GDB and RDI based tool-chains for ARM and Renesas RX cores.

As with all J-Link models, the J-Link Ultra+ comes with SEGGER’s ultra fast flash programming algorithms, allowing download into external CFI-compliant flashes as well as the internal flash of all common microcontrollers. Related software and firmware updates are free of charge.

With download speeds of up to 1.5 MByte/sec, the J-Link Ultra+ is second to none. The already fast algorithms for flash programming from SEGGER benefit significantly from the improved speed.

Features

• Comes with integrated licenses for: Unlimited breakpoints in flash memory (Unlimited Flash Breakpoints), RDI and J-Flash
• Fully compatible to the standard J-Link
• Very high performance for all supported CPU cores
• Download speed up to 1500 Kbytes/second
• Hi-Speed-USB 2.0 interface
• Serial Wire Debug supported
• Serial Wire Viewer (SWV) supported
• SWV: UART and Manchester encoding supported
• SWO sampling frequencies up to 25 MHz
• Target power can be supplied
• Target power consumption can be measured with high accuracy.
• Direct download into flash memory of most popular microcontrollers supported
• Supported CPUs: Any ARM7/9/11, Cortex-A5/A8/A9, Cortex-M0/M1/M3/M4, Cortex-R4 and Renesas RX610/RX621/RX62N/RX62T/RX630/RX631/RX63N
• Automatic core recognition
• JTAG speed up to 25 MHz
• Seamless integration into the IAR Embedded Workbench IDE
• No power supply required, powered through USB
• Support for adaptive clocking
• All JTAG signals can be monitored, target voltage can be measured
• Support for multiple devices
• Fully plug and play compatible
• Standard 20-pin JTAG connector
• Wide target voltage range: 1.2V - 3.3V, 5V tolerant
• USB and 20-pin ribbon cable included
• Memory viewer (J-Mem) included
• TCP/IP server included, which allows using J-Link via TCP/IP networks
• RDI interface available, which allows using J-Link with RDI compliant software
• Flash programming software (J-Flash) available
• Flash DLL available, which allows using flash functionality in custom applications
• Software Developer Kit (SDK) available
• Embedded Trace Buffer (ETB) support
• Optical isolation adapter available
• Target power supply: J-Link can supply up to 300 mA to target with overload protection

Contents

• J-Link Ultra+ with standard 20-pin 0.1" male connector (compatible to J-Link)
• 20-pin, 0.1" target ribbon cable
• USB cable
