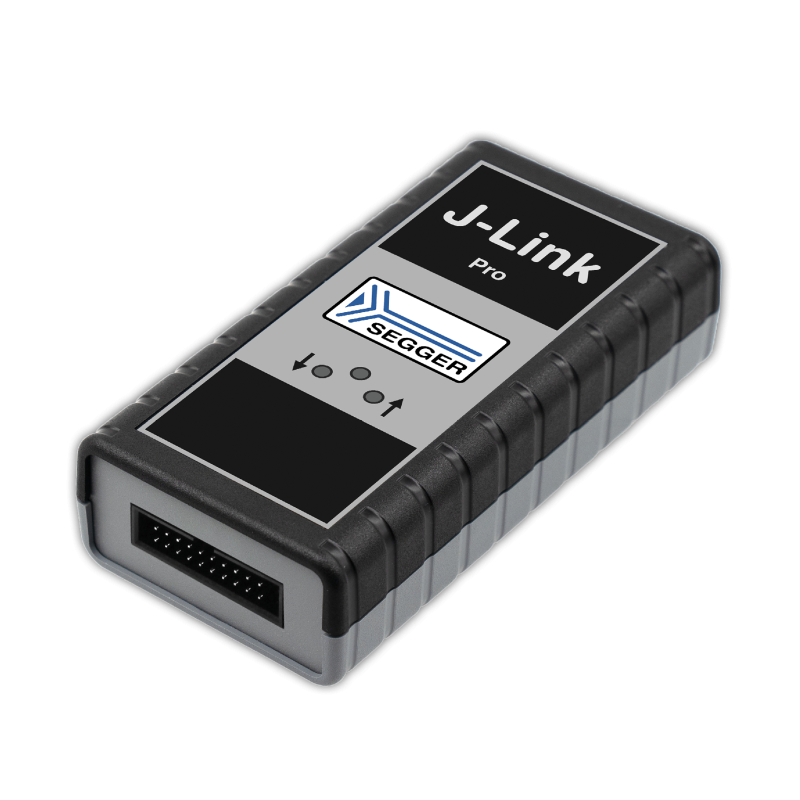

J-Link Pro (8.12.00)

J-Link Pro (8.12.00)
Hi-Speed JTAG/SWD Emulator with USB and Ethernet interface, Segger

Link Pro is a refined version of the regular J-Link. It has an Ethernet interface in addition to the USB interface, as well as two additional LEDs which are used as hardware status indicators.
It connects via Ethernet or USB to the Windows (Windows 2000 and later) PC host.

J-Link Pro is fully compatible with J-Link and can be used "out-of-the-box". J-Link Pro uses DHCP per default. The built-in webserver makes manual configuration easy and convenient. Ethernet allows using the emulator far away from the PC in a development or production environment; download and debugging speed is higher and Ethernet provides electrical isolation from the PC.
All features of the regular J-Link also apply to this product.

Features

• Fully compatible to J-Link
• Ethernet interface
• USB 2.0 interface
• Supported CPUs: Any ARM7/9/11, Cortex-A5/A8/A9, Cortex-M0/M1/M3/M4, Cortex-R4 and Renesas RX610/RX621/RX62N/RX62T/RX630/RX631/RX63N
• Additional LEDs for power and RESET indication
• Comes with web interface for easy TCP/IP configuration (built-in webserver)
• Serial Wire Debug (SWD) supported
• Serial Wire Viewer (SWV) supported
• Automatic core recognition
• Maximum JTAG speed 12 MHz
• Download speed up to 720 Kbytes/second
• Seamless integration into the IAR Embedded Workbench IDE
• Powered through USB or power supply which comes with J-Link Pro
• Support for adaptive clocking
• All JTAG signals can be monitored, target voltage can be measured
• Support for multiple devices
• Fully plug and play compatible
• Standard 20-pin JTAG connector
• Wide target voltage range: 1.2V - 3.3V, 5V tolerant
• USB and 20-pin ribbon cable included
• Memory viewer (J-Mem) included
• Comes with licenses for: J-Link RDI, J-Link Unlimited Flash Breakpoints, J-Link GDB Server, J-Flash
• Software Developer Kit (SDK) available
• Embedded Trace Buffer (ETB) support
• 14-pin JTAG adapter available
• Galvanic isolation from host system via Ethernet
• Optical isolation adapter available
• Target power supply: J-Link can supply up to 300 mA to target with overload protection.

Contents

• J-Link Pro with standard 20-pin 0.1" male connector (compatible to J-Link)
• 20-pin, 0.1" target ribbon cable
• USB cable

Download:

• J-Link Pro webpage
• J-Link Documentation
• Artykuł w portalu Mikrokontroler.pl pt. "Programatory i debuggery firmy Segger (J-Link) - przegląd możliwości"
• Artykuł w portalu Mikrokontroler.pl pt. "Obsługa interfejsu Segger J-Link w środowisku uVision (ARM/Keil)"

Code:J-Link Pro/JLINK PRO (8.12.00)
