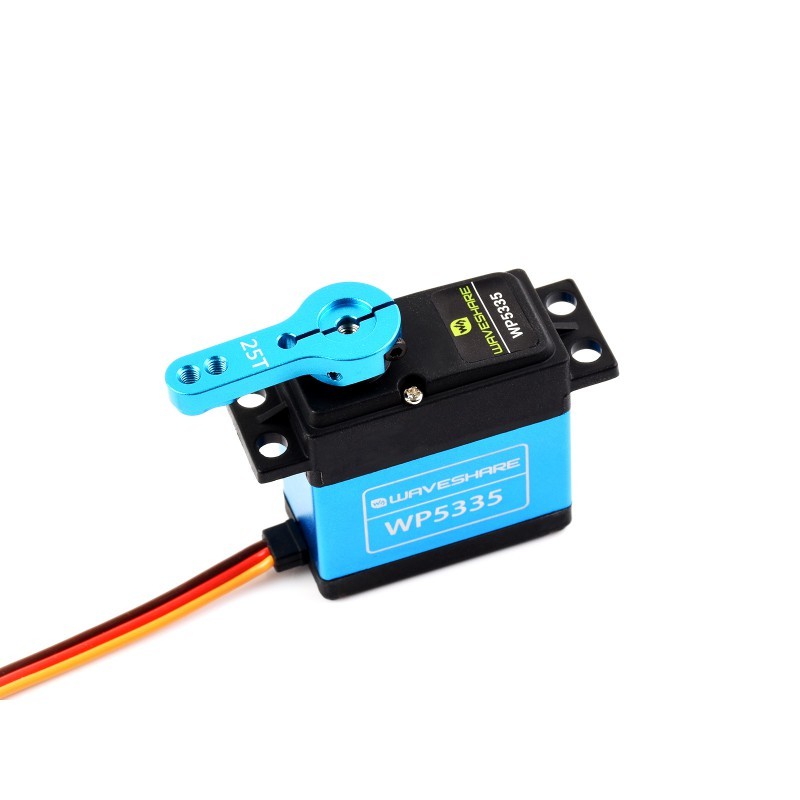

WP5335 is a durable digital servo with 35.5 kg·cm torque, featuring a steel gear train, IP54 protection rating, and a set of universal mounting arms. Designed for use in environments requiring high mechanical resilience, such as RC vehicles, boats, and aircraft models.

4 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The WP5335 digital servo delivers a torque of 35.5 kg·cm at 7.4 V and is designed for demanding RC modeling, robotics, and automation environments. Its all-steel gear train ensures high resistance to dynamic loads and impacts. A carbon film potentiometer enables precise 180° positioning without a mechanical stopper. The enclosure features a metal center housing and IP54-rated seals, allowing reliable operation in humid and dusty conditions. The reinforced 5.9 mm output shaft, mounted on dual ball bearings, increases mechanical durability. The servo is compatible with PWM control (50 Hz) and Raspberry Pi systems using Servo HATs (not included). Comes with a set of six servo arms and mounting accessories.

Features

  • Type: PWM digital servo
  • Torque: 35.5 kg·cm @ 7.4 V
  • Voltage range: 4 V – 8.4 V
  • Rotation range: 180° (no mechanical stopper)
  • Control signal: PWM 50 Hz (500–2500 µs)
  • No-load speed: 0.192 s/60° (52 RPM) @ 7.4 V
  • No-load current: 180 mA
  • Stall current: 3.9 A @ 7.4 V
  • Torque constant: 10 kg·cm/A
  • Gear material: steel
  • Encoder type: carbon film potentiometer
  • Bearing: dual ball bearings
  • Protection rating: IP54
  • Mounting: 25T-M3 standard
  • Dimensions: 55 × 20 × 47.38 mm

Included in the set

  • WP5335 servo ×1
  • 25T aluminum servo arm ×1
  • Plastic servo arms (various types) ×5
  • Spacer bushings ×4
  • Rubber vibration dampers ×4
  • Mounting screw set ×6
1198458

Data sheet

Gear material
Metal
Torque
35,5 kg-cm
Rozmiar serwa (seria)
Giant
Prędkość kątowa
52 RPM
Sprzężenie zwrotne
Tak
Praca ciągła 360°
Nie
Power supply voltage
4 - 8,4 V
Weight
