GC9A01 – round TFT IPS display 1.28" 240×240 px, SPI
search
  • GC9A01 – round TFT IPS display 1.28" 240×240 px, SPI
ID: 1193819
zł19.90
Tax included

zł16.18 tax excl.

The GC9A01 display enables high-quality image presentation thanks to its IPS matrix and 240×240 px resolution. The round design and SPI interface make it suitable for mobile projects, watches, control panels, and IoT systems.

4 weeks
Awaiting delivery

Description

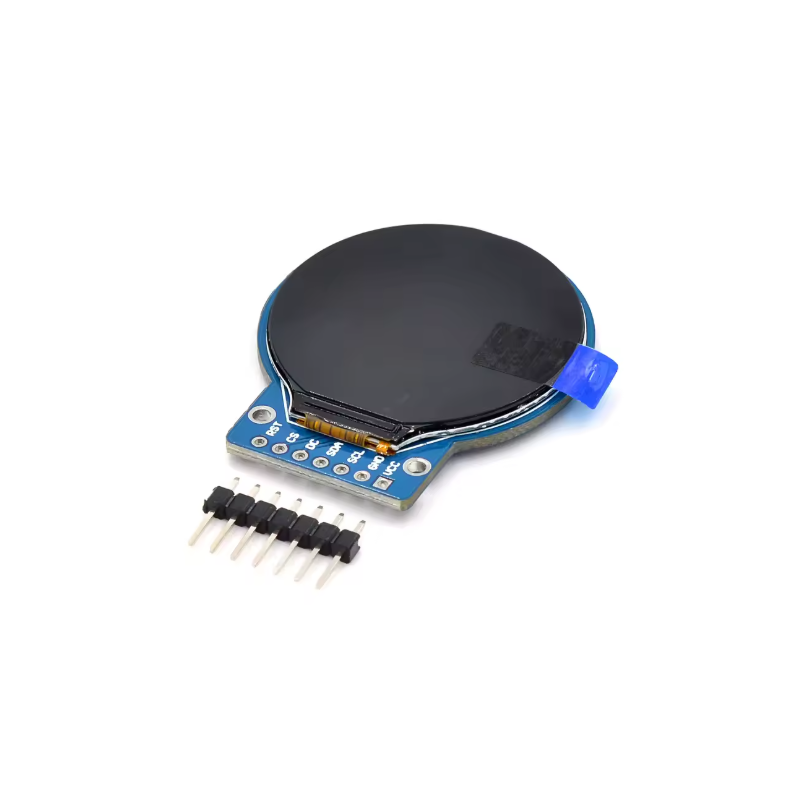

Round TFT display with a 1.28" diagonal and a resolution of 240×240 pixels, based on the GC9A01 controller, communicating via the SPI interface. The IPS matrix provides wide viewing angles and reproduction of up to 65,536 colors, while the matte glass surface minimizes light reflections. The module has a PCB cut to the shape of the display, making it easier to mount in smart clothing and accessory projects, watches, indicator panels, and home automation devices. The power supply and communication lines operate at 3.3 V logic, with SPI lines directly exposed, requiring voltage level conversion when connecting to 5 V microcontrollers.

Properties

  • display type: TFT IPS, round
  • screen diagonal: 1.28"
  • resolution: 240×240 pixels
  • controller: GC9A01
  • interface: SPI
  • number of colors: 65K (RGB)
  • backlight: LED, brightness 400 cd/m²
  • LCD supply voltage: 3.3 V
  • communication pin voltage: 3.3 V
  • operating temperature: from −20 °C to +70 °C
  • module dimensions: 45.5×38×11.5 mm
  • active area: circle with a diameter of 32.4 mm
  • 2.54 mm pin headers soldered
1193819

Data sheet

Screen type
IPS
Diagonal (inch)
1,28
Resolution
240 x 240 px
Interface
SPI
Touch
No
