5″ capacitive touch display 1280×720 for Raspberry Pi - Waveshare 28919
ID: 1197459
5902186304871
zł250.80
Tax included
zł203.90 tax excl.

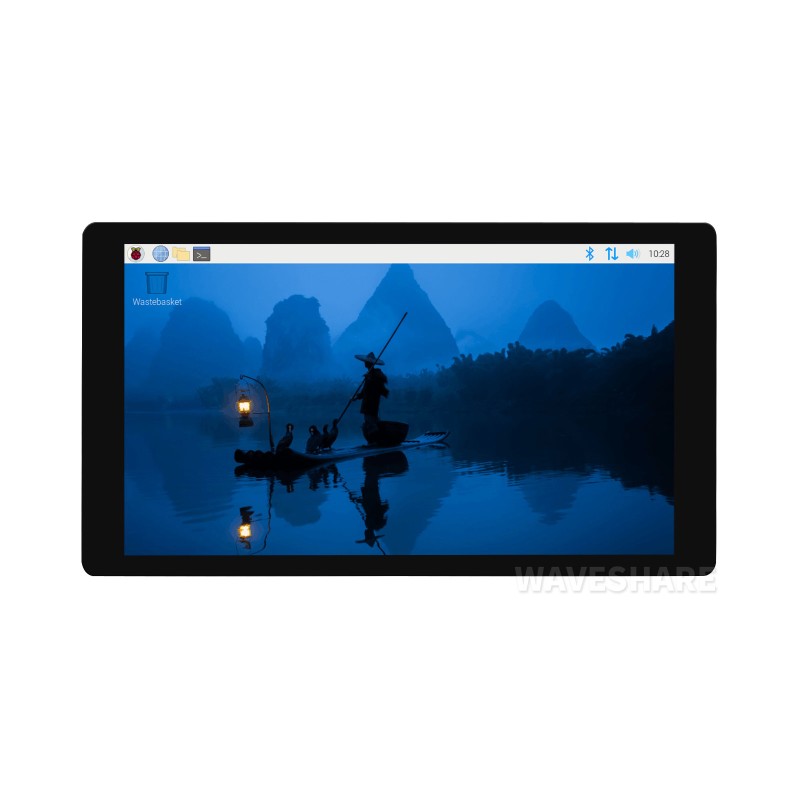

5" HDMI display with 720×1280 resolution, IPS panel, 5-point touch, and optical bonding technology provides high image quality and mechanical durability. Thanks to broad compatibility and compact dimensions, it is suitable for user interfaces, control devices, and embedded systems.
Description
5-inch capacitive display with a resolution of 720 × 1280 pixels and an IPS panel offering a wide viewing angle (178°) and vivid color reproduction. The touch panel made of hardened glass (up to 6H), integrated using optical bonding technology, increases durability, clarity, and dust resistance. Supports 5-point touch depending on the operating system.
Image is transmitted via an HDMI interface, while touch is handled via a USB Type-C port. The monitor is compatible with Raspberry Pi, PCs, Jetson boards, and mini PCs, without the need for additional drivers. The screen is configured by default in portrait orientation, with the option to change it via software settings.
Specifications
- Screen size: 5"
- Resolution: 720 × 1280 px (portrait, H×V)
- Panel type: IPS
- Viewing angle: 178°
- Video interface: HDMI
- Touch interface: USB Type-C
- Touch type: Capacitive
- Number of touch points: 5
- Glass: Hardened (up to 6H), optical bonding
- Backlight adjustment: via software
- Audio output: 4-pin signal connector
- Compatibility: Raspberry Pi (all versions), Jetson, PC, mini PC
Included
- 5-inch 720×1280 LCD
- Capacitive stylus
- HDMI to micro HDMI adapter
- USB Type-A to Type-C cable (~1 m)
- Flat HDMI cable (~1 m)
1197459
Data sheet
- Screen type
- IPS
- Diagonal (inch)
- 5
- Resolution
- 1280 x 720 px
- Interface
- HDMI
- Touch
- Yes
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
