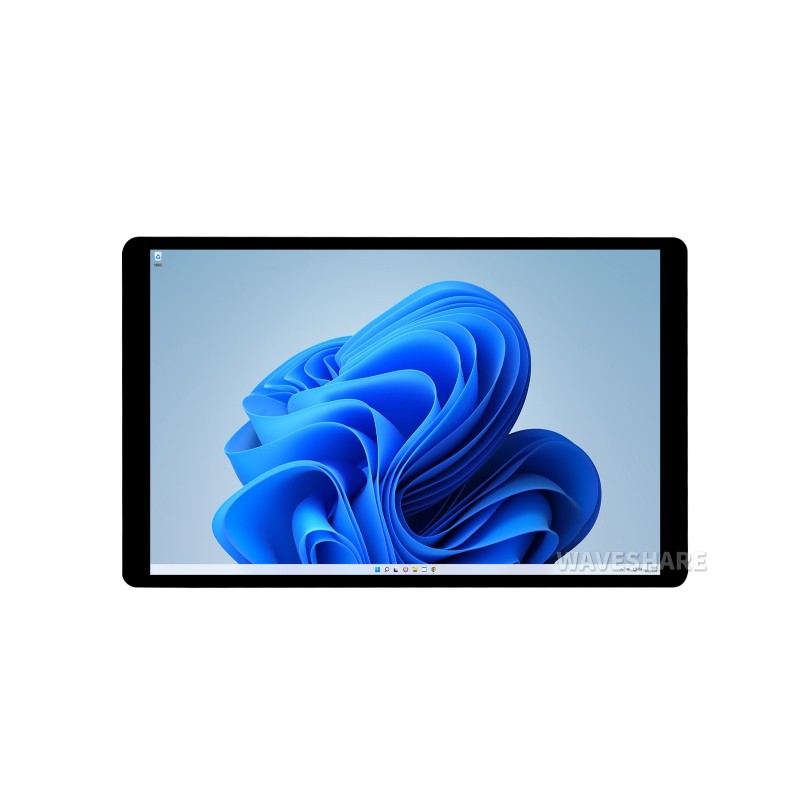

7″ wide-color-gamut capacitive touch display 1280×800 for Raspberry Pi - Waveshare 28996
ID: 1197468
5902186304918
zł353.67
Tax included
zł287.54 tax excl.
The 7" HDMI 7EP-CAPLCD display with an IPS panel, 10-point touch, and optical bonding technology offers high-quality visuals and intuitive touch interaction. With broad compatibility, integrated audio, and a rich accessory set, it is ideal for interactive projects, control panels, and educational systems based on Raspberry Pi, PC, or Jetson.
Description
7-inch capacitive touch display with a resolution of 1280 × 800 px, IPS panel, and wide 178° viewing angle, designed for use with PCs, Raspberry Pi, and NVIDIA Jetson systems. High image quality is achieved through wide color gamut LED technology (NTSC 68%) and a touch panel with optical bonding and tempered glass (up to 6H hardness).
HDMI is used for video transmission, while touch is handled via USB Type-C. The module supports 10-point touch (depending on OS) and brightness adjustment via DDC/CI. It features an integrated 3.5 mm audio jack and Hi-Fi stereo speakers. Driver-free operation with Windows, Raspberry Pi OS, Ubuntu, Kali, Retropie, and Jetson.
Features
- Screen size: 7"
- Resolution: 1280 × 800 px
- Panel type: IPS
- Viewing angle: 178°
- Touch type: capacitive
- Touch points: 10 (depending on OS)
- Video interface: HDMI
- Touch interface: USB Type-C
- Brightness: 350 cd/m²
- Brightness control: DDC/CI
- Protective glass: tempered (up to 6H hardness)
- Technology: optical bonding
- Color gamut: NTSC 68%
- Audio jack: 3.5 mm
- Speakers: built-in Hi-Fi, stereo
- Compatibility: Raspberry Pi (all versions), PC, Jetson Nano / TX2 / Xavier NX / Orin
- Power supply: via USB Type-C or PH2.0 3PIN connector
Included
- 7EP-CAPLCD display
- Flat HDMI cable (~1 m)
- USB Type-A to Type-C cable (~1 m)
- Cleaning cloth
- Micro HDMI adapter
- HDMI adapter
- Button board
- 3PIN cable
- HDMI to micro HDMI adapter
- 2 × 20PIN FFC cable
- 1.27H 4PIN cable
- PH1.25 4PIN to USB Type-A cable
- Screw set
1197468
Data sheet
- Screen type
- IPS
- Diagonal (inch)
- 7
- Resolution
- 1280 x 800 px
- Interface
- HDMI
- Touch
- Yes
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
