- New
zł30.52
Multimeter True RMS LCD YT-730896
ID: 1206269
5906083133787
zł156.52
Tax included
zł127.25 tax excl.
Digital multimeter with True RMS function designed for measuring electrical parameters in installations, electronic devices and industrial systems. Automatic range selection, 60000 count LCD display, NCV function, temperature measurement and frequency measurement enable precise measurements during service, workshop and diagnostic work. Yato YT-730896
Description

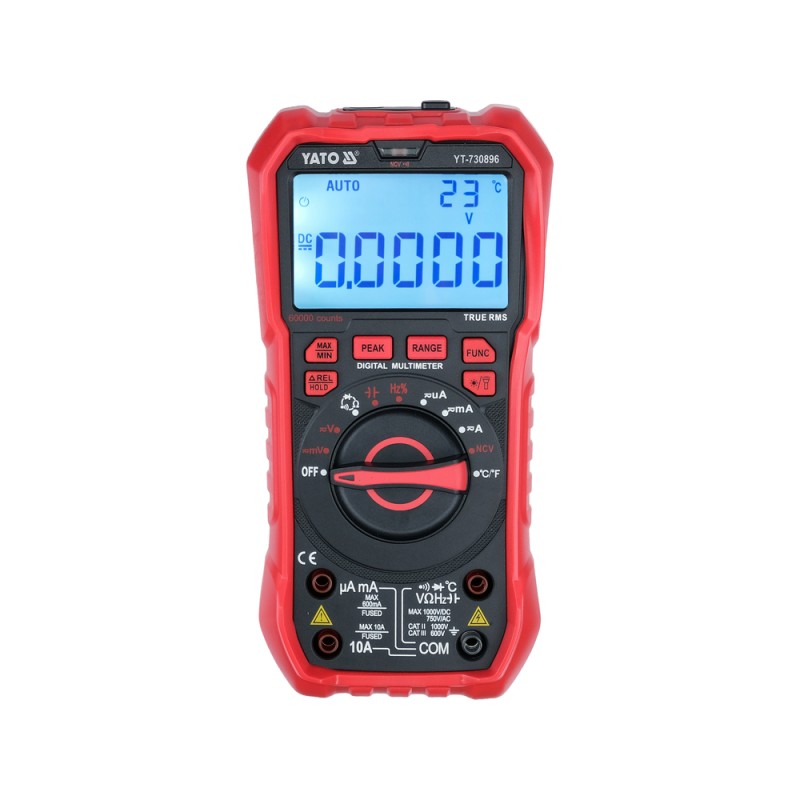

Yato YT-730896 multimeter designed for measuring voltage, current, resistance, capacitance, frequency and temperature in electrical installations and electronic circuits. The True RMS function enables accurate AC voltage and current measurements also for distorted waveforms generated by switching power supplies, inverters and HVAC equipment. Automatic measurement range selection increases convenience during diagnostics of various electrical systems. The large backlit LCD display enables simultaneous presentation of two measurement values, while illuminated measurement sockets facilitate proper connection of the test leads.
The NCV function enables non-contact AC voltage detection using the induction method. The ABS housing with anti-slip protective holster increases resistance to mechanical damage and improves user safety. The set includes silicone-insulated test leads, a thermocouple for temperature measurement and a carrying case.
Features
- Type: True RMS digital multimeter
- Display: LCD
- Maximum displayed value: 60000
- AUTO automatic range selection
- RANGE manual range selection
- True RMS function
- NCV function
- REL function
- HOLD function
- MAX / MIN function
- PEAK function
- AC voltage measurement: 0 - 750 V
- DC voltage measurement: 0 - 1000 V
- AC current measurement: 0 - 10 A
- DC current measurement: 0 - 10 A
- Resistance measurement: 0 - 60 MΩ
- Capacitance measurement: 0 - 60 mF
- Frequency measurement: 0 - 25 MHz
- Temperature measurement: -50°C to 1000°C
- Diode test
- Continuity test
- Display backlight
- Illuminated measurement sockets
- Automatic shutdown after 15 minutes
- Low battery indicator
- Test probe length: 13 cm
- Cable length with probes: 130 cm
- Housing: ABS
- Power supply: 3 x AAA 1.5 V battery
- Dimensions: 187 x 95 x 55 mm
- Weight without batteries: 370 g
- Application: diagnostics of electrical installations and electronic circuits
Kit includes
- True RMS digital multimeter YT-730896
- Test leads
- Temperature measurement thermocouple
- Carrying case
- User manual
1206269
Data sheet
- Upper DC voltage range
- 200mV/2000mV/20V/200V/1000 V
- Upper AC voltage range
- 200V/750V
- Upper DC current range
- 200μA/2mA/20mA/200mA/10A
- Upper AC current range
- 600μA/6000μA/60mA/600mA/10A
- Upper resistance range
- 60 MΩ
- Upper capacitance range
- 6nF/60nF-600uF/6mF-60mF
- Frequency range
- 0 Hz - 25 MHz
- Temperature measurement
- Yes
- Range adjustment
- Automatic
- True RMS
- Yes
- Hold function
- Yes
- Continuity tester
- Yes
- Diode tester
- Yes
- Transistor hFE measurement
- No
- Buzzer
- Yes
- Battery indicator
- Yes
- Automatic shut-off
- Yes
- Display backlight
- Yes
- Battery type
- AAA
- Length
- 187 mm
- Width
- 95 mm
- Thickness
- 55 mm
- Weight
- 370 g
Manufacturer TOYA S.A. Sołtysowicka 13-15 51-168 Wrocław Poland info@yato.pl
Responsible person TOYA S.A. Sołtysowicka 13-15 51-168 Wrocław Poland info@yato.pl
