ID: 1208092
4779027312781
zł275.22
Tax included

zł223.76 tax excl.

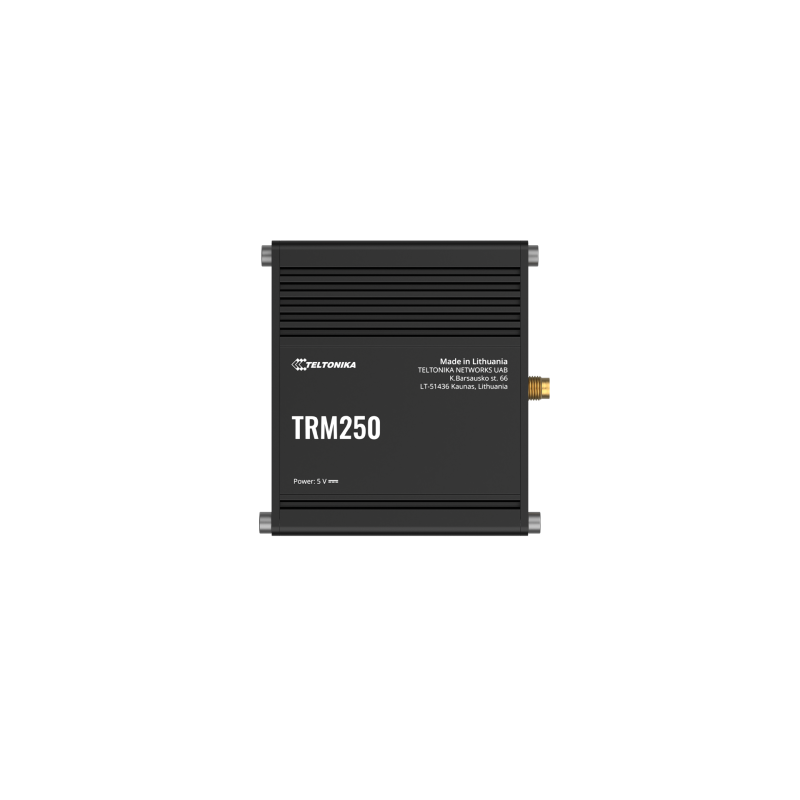

Industrial cellular modem for remote monitoring, telemetry, IoT and M2M systems; 4G LTE Cat M1 up to 375 kbps download and 375 kbps upload; NB-IoT Cat NB1 up to 32 kbps download and 70 kbps upload; 2G up to 296/236.8 kbps; 3GPP Release 12; 1 x Mini SIM; microUSB for data transmission and 5 V power supply; 1 x SMA connector for cellular antenna; maximum power consumption 3.6 W; aluminium housing; IP30; operating temperature from -40°C to 75°C; Windows, Linux and Android support. Teltonika TRM250

2 weeks
Awaiting delivery

Description

Industrial cellular modem designed to provide connectivity for remote monitoring, telemetry, IoT and M2M systems where relatively small amounts of data need to be transmitted over cellular networks. Teltonika TRM250 supports LTE Cat M1 with download and upload speeds of up to 375 kbps, NB-IoT Cat NB1 with up to 32 kbps download and 70 kbps upload, as well as 2G connectivity. The Mini SIM (2FF) slot supports 1.8 V and 3 V SIM cards, while the SMA connector allows an external cellular antenna to be connected. LTE-M and NB-IoT support enables integration with metering systems, terminals, telemetry equipment and distributed IoT devices.

The microUSB port provides both data transmission and 5 V power, simplifying integration with computers, controllers and industrial equipment equipped with USB connectivity. Maximum power consumption reaches 3.6 W. Driver support covers Windows, Linux and Android platforms, including NDIS, RIL and Gobinet solutions. An anodised aluminium housing, IP30 ingress protection rating and operating temperature range from -40°C to 75°C support deployment in industrial monitoring, automation, telemetry and other installations requiring compact cellular connectivity.

Features

  • Cellular connectivity
    • Standards: 4G LTE Cat M1, NB-IoT Cat NB1, 2G
    • LTE Cat M1 speed: up to 375 kbps download / 375 kbps upload
    • NB-IoT Cat NB1 speed: up to 32 kbps download / 70 kbps upload
    • 2G speed: up to 296 kbps download / 236.8 kbps upload
    • 3GPP: Release 12
    • 1 x SMA connector for cellular antenna
  • SIM card
    • 1 x Mini SIM (2FF) slot
    • SIM card voltage: 1.8 V / 3 V
  • USB
    • 1 x microUSB port
    • Data transmission via USB
    • Internet access via USB interface
    • Power supply via microUSB
  • Power supply
    • Input voltage: 5 V
    • Powered via microUSB
    • Maximum power consumption: 3.6 W
  • Software and drivers
    • Windows Connection Manager
    • USB Driver for Windows 7 / 8 / 8.1 / 10
    • USB Driver for Windows CE 5.0 / 6.0
    • USB Driver for Linux 2.6 / 3.x / 4.1-4.14
    • USB Driver for Android 4.x / 5.x / 6.x / 7.x / 8.x
    • RIL Driver for Android 4.x / 5.x / 6.x / 7.x / 8.x
    • NDIS Driver for Windows 7 / 8 / 8.1 / 10
    • Gobinet Driver for Linux 2.6 / 3.x / 4.1-4.14
    • Linux Driver 3.x from version 3.4 / 4.1-4.14
  • LED indicators
    • 1 x Power LED
    • 1 x Network LED
  • Mechanical and environmental specifications
    • Housing: anodised aluminium
    • Dimensions: 74.5 x 25 x 64.5 mm
    • Weight: 130 g
    • Ingress protection rating: IP30
    • Operating temperature: from -40°C to 75°C
    • Operating humidity: from 10% to 90%, non-condensing
    • DIN rail, wall or flat-surface mounting with an additional mounting kit

Kit includes

  • Teltonika TRM250 modem
  • SMA cellular antenna
  • microUSB cable
  • Allen key
  • Quick Start Guide
