Industrial cellular modem for upgrading controllers, alarm systems, and other devices using serial communication; 4G LTE Cat 4 FDD with download speeds up to 150 Mbps and upload speeds up to 50 Mbps; LTE TDD up to 130/30 Mbps; 3G and 2G; 1 x Mini SIM; RS232 with RTS/CTS; virtual network interface via microUSB; 1 x SMA connector for cellular antenna; 9-30 VDC power supply; aluminium housing; IP30; operating temperature from -40°C to 75°C. Teltonika TRM142

24h
Available
Available quantity: 2

Description

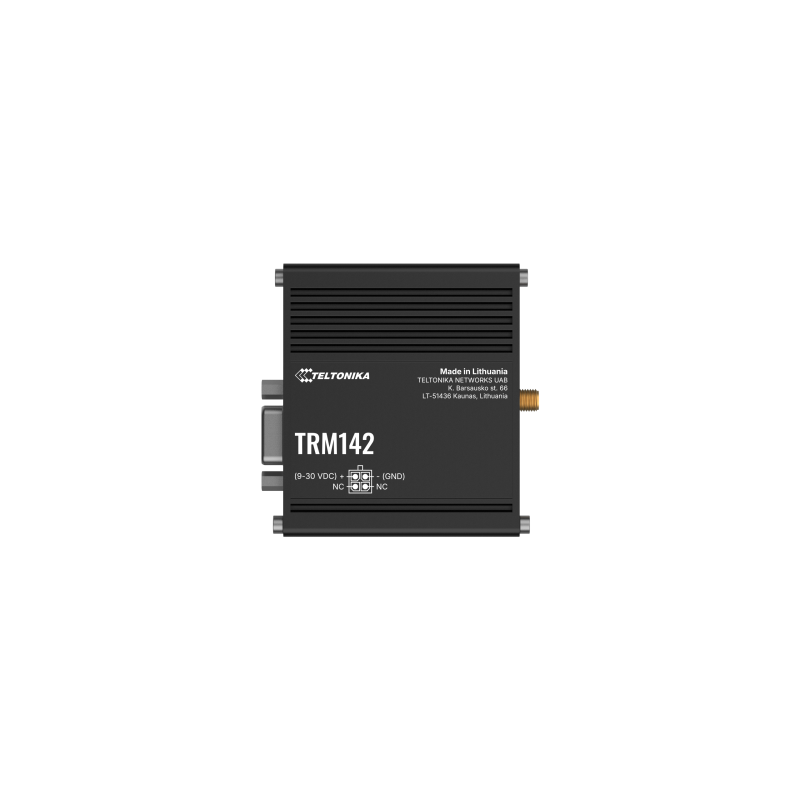

Industrial cellular modem designed to add 4G LTE connectivity to legacy equipment used in automation, alarm, telemetry, and M2M systems. Teltonika TRM142 supports 4G LTE Cat 4 FDD with download speeds up to 150 Mbps and upload speeds up to 50 Mbps, as well as LTE TDD with download speeds up to 130 Mbps and upload speeds up to 30 Mbps, while 3G and 2G compatibility enables operation in legacy cellular networks. The RS232 interface with RTS/CTS flow control and a DB9 connector allows controllers, alarm panels, terminals, and other serial devices to communicate over cellular networks. A virtual network interface via microUSB provides an additional data connection to a computer or host device.

The modem features a single Mini SIM slot and an SMA connector for an external cellular antenna. Power is supplied through an industrial 4-pin DC connector with a 9-30 VDC input range and protection against overvoltage, reverse polarity, and voltage surges. Power consumption remains below 1 W at idle and below 5 W at maximum load. The anodised aluminium housing, IP30 rating, and operating temperature range from -40°C to 75°C support deployment in industrial infrastructure upgrades where LTE connectivity needs to be added without replacing existing end devices.

Features

  • Cellular connectivity
    • 4G LTE Cat 4
    • LTE FDD: up to 150 Mbps download / 50 Mbps upload
    • LTE TDD: up to 130 Mbps download / 30 Mbps upload
    • 3G HSPA+: up to 21 Mbps download
    • 3G HSUPA: up to 5.76 Mbps upload
    • 3G WCDMA: up to 384 kbps download / 384 kbps upload
    • 2G: up to 236.8 kbps download / 236.8 kbps upload
    • 2G GPRS: up to 85.6 kbps download / 85.6 kbps upload
    • 3GPP: Release 9
    • 1 x SMA connector for cellular antenna
  • SIM card
    • 1 x Mini SIM (2FF) slot
  • RS232
    • 1 x RS232 interface
    • Connector: DB9
    • RTS/CTS flow control
  • USB
    • 1 x microUSB
    • Virtual network interface via microUSB
  • Software and drivers
    • Windows Connection Manager
    • Modem Manager for Linux
    • USB Serial Driver
    • USB Serial Driver for Windows 7 / 8 / 8.1 / 10 / 11
    • USB Serial Driver for Linux 2.6-6.3
    • USB Serial Driver for Android 4.x-13
    • GNSS Driver for Android 4.x-13
    • RIL Driver for Android 4.x-13
    • NDIS Driver for Windows 7 / 8 / 8.1 / 10
  • Power supply
    • 1 x industrial 4-pin DC power connector
    • Input voltage: 9-30 VDC
    • Overvoltage protection
    • Reverse polarity protection
    • Surge protection
    • Idle power consumption: below 1 W
    • Maximum power consumption: below 5 W
  • Interfaces and indicators
    • 1 x DB9 connector for RS232
    • 1 x microUSB
    • 1 x Mini SIM slot
    • 1 x SMA connector for cellular antenna
    • 1 x industrial 4-pin power connector
    • 1 x Power LED
    • 1 x Network LED
    • 1 x Mobile LED
    • Reset button
  • Mechanical and environmental specifications
    • Housing: anodised aluminium
    • Dimensions: 75.9 x 25 x 74.5 mm
    • Weight: 135 g
    • Ingress protection rating: IP30
    • Operating temperature: -40°C to 75°C
    • Operating humidity: 10% to 90%, non-condensing
    • DIN rail, wall, or flat-surface mounting with an additional mounting kit

Kit includes

  • Teltonika TRM142 modem
  • 9 W power supply
  • Quick Start Guide
