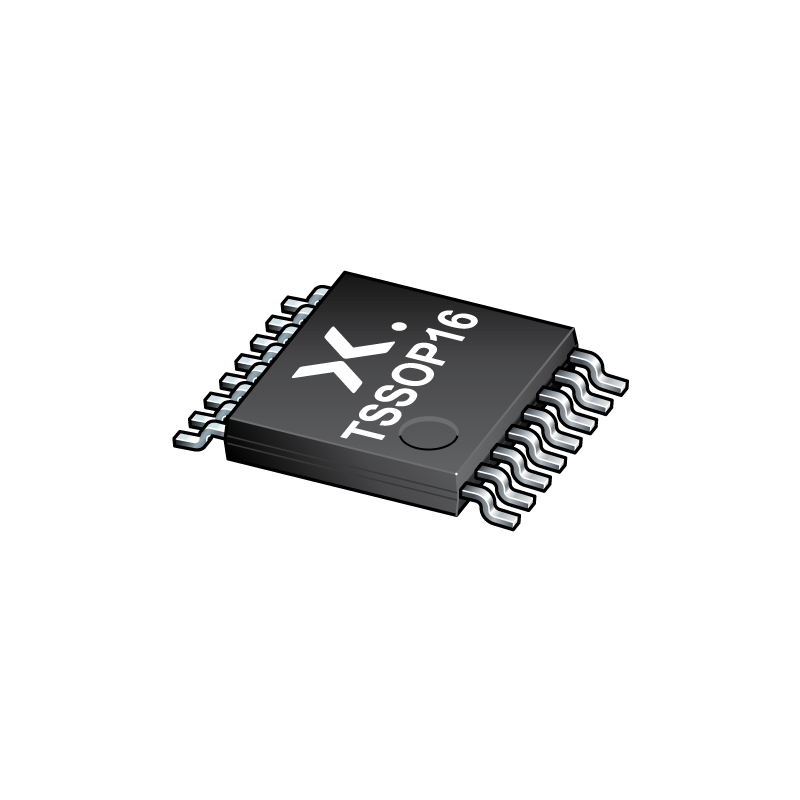

Integrated circuit PISO shift register 8-bit TSSOP16 - 74HC165PW

Description

74HC165PW integrated circuit designed for parallel-to-serial data conversion in digital circuits, embedded controllers, and microcontroller applications requiring input expansion. The PISO shift register enables asynchronous loading of 8-bit parallel data from D0-D7 inputs and serial data transmission through the Q7 output synchronized with a clock signal.

The device operates in HC CMOS technology and supports a supply voltage range from 2.0 V to 6.0 V. Inputs tolerant up to 15 V allow use in HIGH-to-LOW logic level conversion applications. The IC features a Clock Enable input for clock signal blocking and complementary Q7 and Q7¯ outputs. The TSSOP16 package intended for SMD assembly enables integration into compact electronic devices, industrial automation systems, and embedded applications.

Features

• Manufacturer: Nexperia
• Model: 74HC165PW
• IC type: Parallel-in / serial-out shift register
• Register type: PISO
• Number of bits: 8
• Logic family: HC CMOS
• Asynchronous parallel load
• Serial data input DS
• Complementary outputs Q7 and Q7¯
• Clock Enable CE input
• Supply voltage range VCC: 2.0 - 6.0 V
• Maximum operating frequency: 61 MHz
• Logic levels: CMOS
• Inputs tolerant up to 15 V
• Low CMOS power consumption
• ESD HBM protection: >2000 V
• Operating temperature: -40°C ~ 125°C
• Package: TSSOP16
• Pin pitch: 0.65 mm
• Package dimensions: 5.0 x 4.4 x 1.1 mm
• Mounting type: SMD
