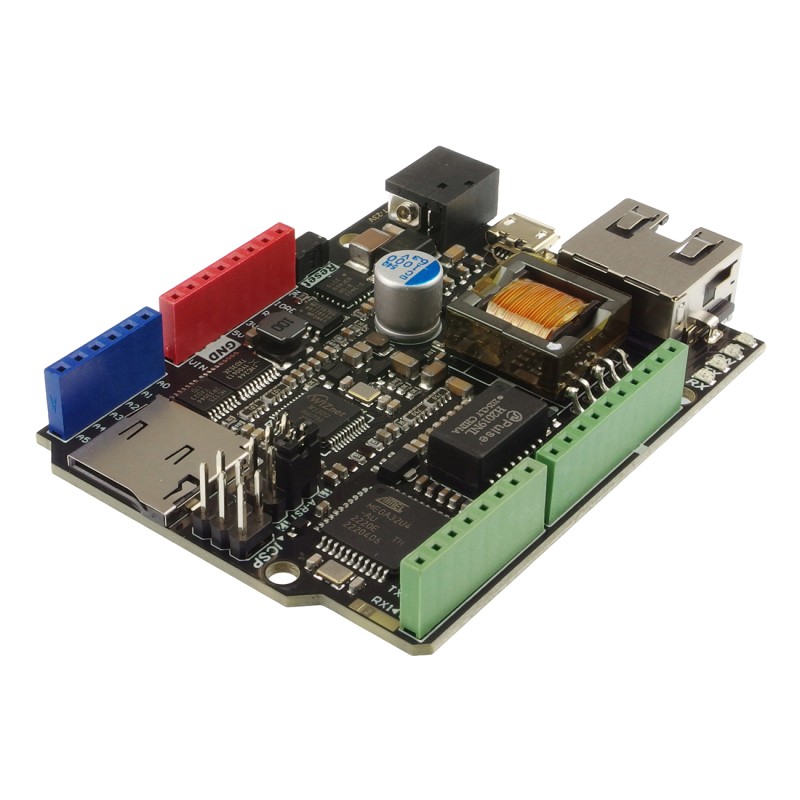

W5500 Ethernet with POE IoT Board - IoT development board with ATmega32U4 and W5500
ID: 561324
zł227.89
Tax included
zł185.28 tax excl.
IoT development board with ATmega32U4 microcontroller and W5500 Ethernet chip. Compatible with Arduino Leonardo, has a built-in PoE (Power over Ethernet) function. DFRobot DFR0342
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
IoT development board with ATmega32U4 microcontroller and W5500 Ethernet chip. It uses a bootloader and is compatible with Arduino Leonardo, so it can be programmed using the Arduino IDE environment. The module has a built-in PoE (Power over Ethernet) function, TCP/IP stack and supports such protocols as TCP/IP, UDP, ICMP, ARP, IGMP, PPPoE. Supports Wake on LAN over UDP function. It supports up to 8 independent sockets simultaneously and has a built-in 32 KB internal memory buffer. Besides, SPI W5500 supports 80MHz speed and a new efficient protocol for high-speed network communication. In order to reduce the power consumption of the system, the W5500 provides WOL (Wake on LAN) and a shutdown mode. The board offers a MicroSD card slot. Full documentation with examples is available on the product wiki page.
Features
- Microcontroller: Atmel Atmega32u4 (Arduino Leonardo)
- External supply voltage: 7V to 20V
- POE input voltage: 48V AC/DC (802.3af standard PD device)
- Digital I/O pins: 20
- Analog inputs: 6
- Current per I / O pin: 40 mA
- Flash memory: 32 KB of which 4 KB used by the bootloader
- SRAM: 2 KB
- EEPROM: 1 KB
- Clock speed: 16 MHz
- PHY: WIZnet W5500
- PHY clock speed: 25 MHz
- Built-in hardware TCPIP protocol stack
- Support for TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocols
- Integrated data link layer, physical layer
- Wake-up support at power off
- W5500 interface: SPI
- Internal 32KB send and receive buffer
- Built-in 10BaseT/100BaseTX Ethernet (PHY) physical layer
- Dimension: 73.5 x 53.5 x 15 mm
561324
Data sheet
- Microcontroller
- ATmega32u4
- Core
- AVR
- Frequency
- 16MHz
- Flash memory
- 32kB
- RAM
- 2kB
- EEPROM memory
- 1kB
- Number of digital pins
- 20
- Number of PWM channels
- 7
- Ilość wejść analogowych
- 6
- ADC
- 1x 10bit
- DAC
- none
- CAN
- none
- USB
- 1
- Ethernet
- 100Mb x1
- WiFi/BT module
- No
- Bluetooth module
- No
- GSM/GPRS module
- No
- Logic voltage
- 5 V
- MicroSD slot
- Yes
- Supply voltage min
- 7
- Supply voltages max
- 20 V
