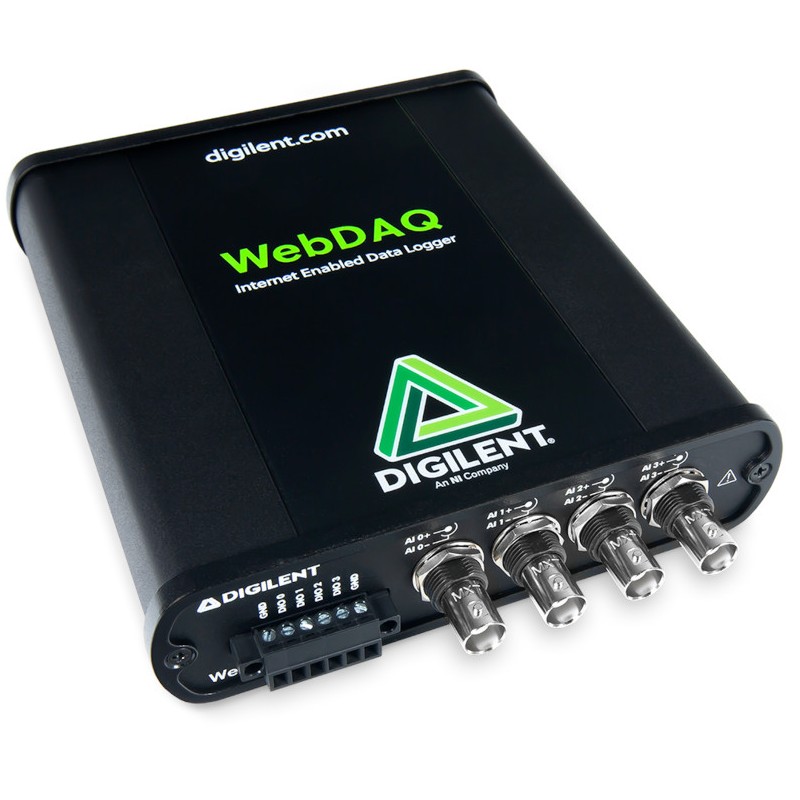

WebDAQ 504 (6069-410-006-1) – data logger for vibration and acoustic sensors
ID: 1189966
€1,838.96
Tax included
€1,495.09 tax excl.
IEPE sensor data logger with a built-in web server, four analog inputs, and 24-bit resolution. Digilent 6069-410-006-1
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
The WebDAQ 504 is a standalone data logger for vibration and acoustic sensors, designed for remote monitoring, analysis, and control. It performs all data processing operations, eliminating the need for a computer or additional software. With the built-in WebDAQ web server, users can easily configure simple or advanced applications, log data, update digital outputs, and/or send notifications based on trigger conditions. Additionally, they can view real-time data from anywhere and on any device with a web browser.
The WebDAQ 504 features four simultaneous IEPE inputs for measuring signals from sensors such as accelerometers and microphones, as well as four isolated digital ports that can be used as trigger inputs or alarm outputs. Housed in a rugged enclosure, the WebDAQ 504 is durable enough for demanding industrial applications.
The embedded operating system and web server provide a complete standalone data logging solution. Users can monitor and control their applications from anywhere using a web browser. For those requiring more advanced functionality than the browser interface offers, a RESTful API is available.
Features
- Four simultaneous inputs for IEPE sensors
- 24-bit A/D converter
- Sampling rate up to 51 kS/s per channel
- Real-time FFT for continuous monitoring and analysis
- Data logging to internal storage or mapped network storage
- 3 GB internal memory with optional SD card and USB slots
- Built-in web server for access from any browser-enabled device
- Alarm and notification system via email and SMS
- Data export to CSV, UFF, or binary formats for further analysis
- Easy and flexible task scheduling
- No driver installation required
- Wi-Fi support (Wi-Fi module not included)
- Ethernet port for network or direct computer connection
- Four digital I/O for trigger and alarm control
Kit Includes
- WebDAQ 504
- 9 V power supply
- Ethernet cable
- Changeable AC input plugs (USA/EU/UK)
