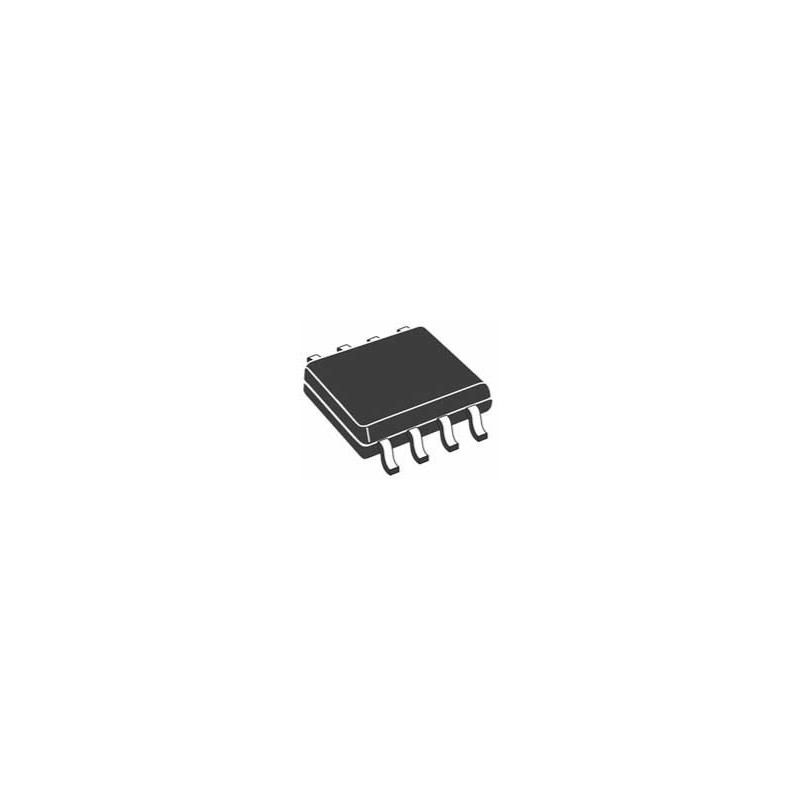

LDL112D33R
ID: 576661
5902186304505
zł2.90
Tax included
zł2.36 tax excl.
LDL112D33R is a precision LDO regulator with a 3.3 V output voltage and current capability up to 1.2 A, designed for high energy efficiency applications. Its low dropout voltage and quiescent current make it an ideal solution for modern digital systems powered by batteries or requiring stable voltage under dynamic load conditions.
Description
The LDL112 series LDO regulator provides a fixed 3.3 V output voltage with a maximum load current of up to 1.2 A. It features a low quiescent current (35 μA) and a typical dropout voltage of 300 mV at full load. Designed for applications requiring high energy efficiency, stable supply voltage, and low noise – including mobile devices, IoT systems, medical equipment, and industrial automation. The regulator includes thermal, current, and active shutdown protection features. The SOIC-8 package allows surface mounting in moderately dense circuit layouts.
Features
- Regulator type: LDO (Low Dropout Regulator)
- Output voltage: 3.3 V (fixed)
- Output current: up to 1.2 A
- Input voltage: 1.6 V to 5.5 V
- Typical dropout: 300 mV, maximum: 600 mV
- Quiescent current: 35 μA
- Supply current: typ. 250 μA
- Line regulation: 0.05 %/V
- Load regulation: 15 mV
- Output voltage accuracy: ±2 %
- Mounting style: SMD/SMT
- Package: SOIC‑8
- Operating temperature range: –40 °C to +125 °C
- RoHS compliant
576661
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
