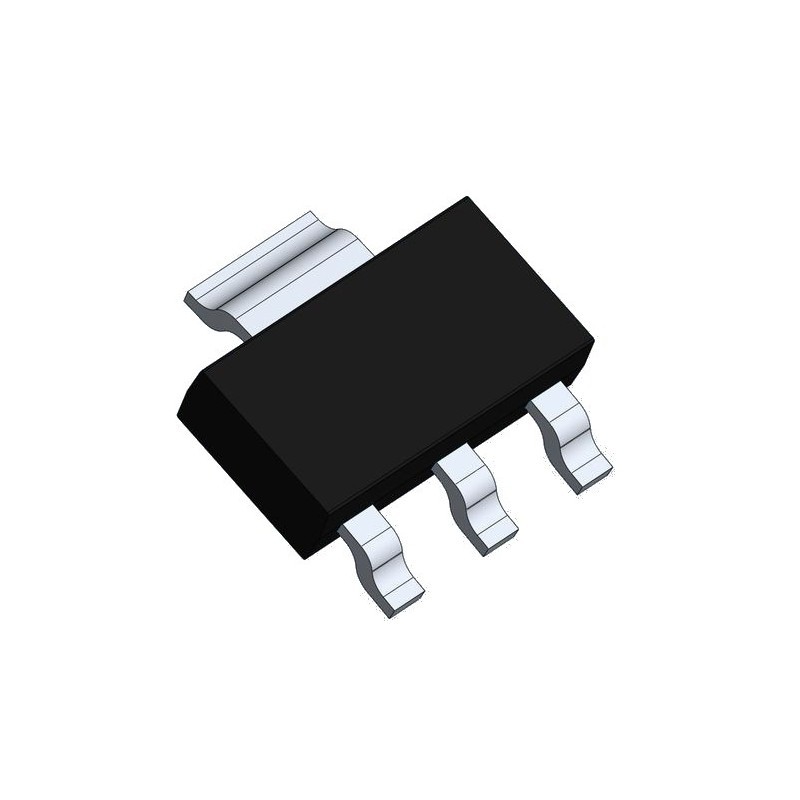

TS2940CW-3.3 IC: voltage regulator, LDO, linear, fixed 3.3V, 1A

Description

The TS2940CW-3.3 is a linear low dropout (LDO) voltage regulator with a fixed 3.3 V output and a maximum output current of 1 A. Designed for low dropout operation—only 0.6 V—it enables efficient power delivery even with small differences between input and output voltages. Suitable for surface-mount applications in a SOT223 package, it supports input voltages up to 26 V and maintains high parameter stability across a wide operating temperature range from –40°C to +125°C. With an output voltage tolerance of ±0.2%, this regulator is ideal for applications requiring high precision.

Specifications

• Type: voltage regulator
• Category: LDO, linear, fixed
• Output voltage: 3.3 V
• Output current: 1 A
• Dropout voltage: 0.6 V
• Input voltage: 0–26 V
• Output voltage tolerance: ±0.2%
• Number of channels: 1
• Mounting: surface mount (SMD)
• Package: SOT223
• Operating temperature: –40…125°C
• Gross weight: 0.155 g
