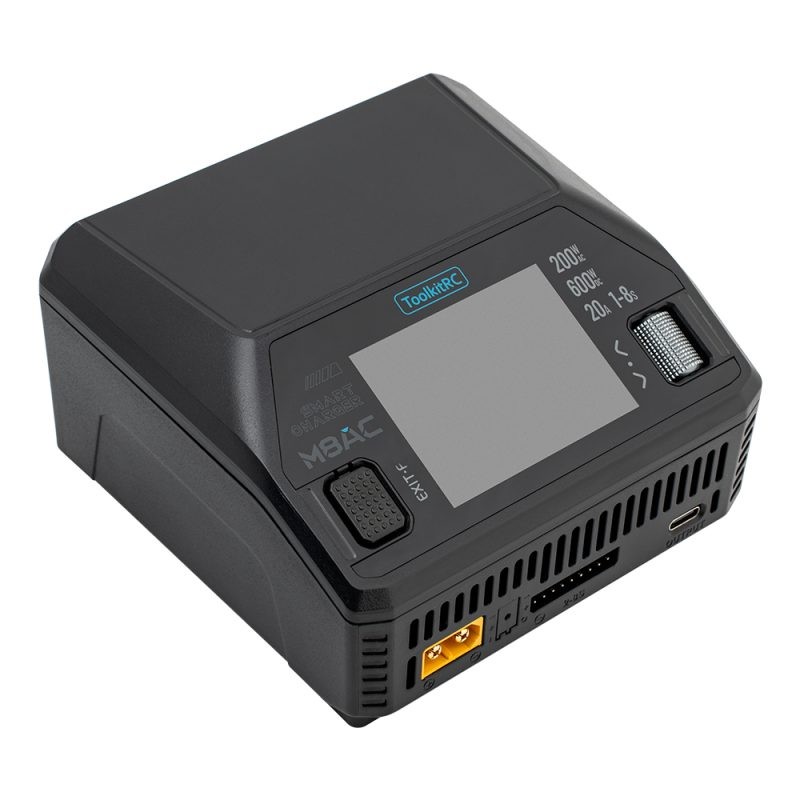

M8AC – AC Charger with Built-in Power Supply 1–8S 20 A / 600 W - ToolkitRC
ID: 1196855
6972969830698
zł381.21
Tax included
zł309.93 tax excl.
The ToolkitRC M8AC is an advanced charger with AC/DC input support and up to 600 W output power. It supports a wide range of battery types and includes testing and power functions, making it a versatile tool for workshop and RC model applications.
Description
The ToolkitRC M8AC charger features an integrated AC power supply and supports charging LiPo, LiFe, Li-ion, LTO, NiMH, and Pb batteries in the 1–8S range (up to 20S for NiMH). It can be powered from an AC socket (100–240 V, up to 200 W) or an external DC source (7–35 V, up to 600 W). A 2.4″ color IPS display offers a clear view of parameters. The charger also includes ESC and RC signal testing functions, as well as a DC power supply mode with a 65 W USB‑C output.
Features
- AC input voltage: 100–240 V (max 200 W)
- DC input voltage: 7–35 V (max 600 W)
- supported battery types: LiPo, LiHV, LiFe, Li-ion, LTO (1–8S), NiMH (1–20S), Pb (1–12S)
- charge current: 0.1–20 A
- discharge current: 0.1–3 A (max 20 W), 0.1–20 A (recycle to another pack – max 600 W)
- balancing current: 1 A at 4.2 V
- balancing accuracy: < 0.005 V
- output power connector: XT60
- additional features: ESC tester, PPM/PWM/SBUS signal generator, DC power supply
- display: 2.4″ IPS LCD, 320×240 px
- USB‑C: 65 W power output
- active cooling with fan
- dimensions: 108×113×62 mm
- weight: 500 g
Included
- ToolkitRC M8AC charger
- AC power cable
- USB‑C cable
- user manual
1196855
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
