ToolkitRC M6AC Lithium Balancer Charger 1-6S 300W
search
  • ToolkitRC M6AC Lithium Balancer Charger 1-6S 300W
ID: 1196856
6972969830650
zł269.00
Tax included

zł218.70 tax excl.

ToolkitRC M6AC is an advanced balancer charger dedicated to a wide range of lithium, nickel and lead-acid batteries. Charging capacity up to 300 W, support for PWM, PPM and SBUS measurement modes and laboratory power supply functions make it a versatile tool for modelers, electronics engineers and users of multi-cell power systems. Compact form, precise parameter control and wide input voltage range provide flexibility for work in the workshop and in the field.

24h
Available
Available quantity: 3
Kamami is the official distributor of advanced chargers and multifunctional ToolkitRC tools. All products of this brand in our offer are original and come directly from the manufacturer.

Description

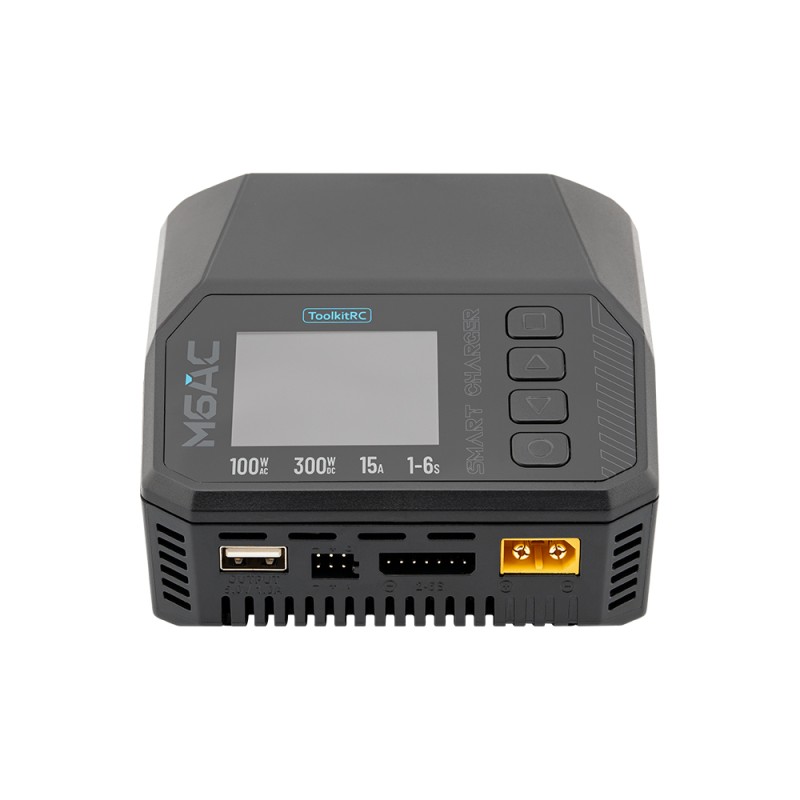

The ToolkitRC M6AC charger is a compact device combining charging, balancing and battery parameter analysis functions, designed to work with lithium cells (LiPo, LiHV, LiFe, LiIon, LTO) from 1 to 6S, as well as with NiMH (1-16S) and Pb (1-10S) batteries. It can be powered by both AC 100-240 V mains voltage and DC 7-35 V, offering up to 120 W and 300 W of charging power, respectively. It supports charging current in the range of 0.1-15 A, and in discharge mode up to 15 A in external (recycling) mode or up to 3 A in internal mode.

The device offers precise cell balancing with an accuracy of less than 0.005 V and a balance current of up to 1000 mA at a voltage of 4.2 V. The functionality has been extended with a PWM, PPM and SBUS signal analyzer, which makes the charger a useful diagnostic tool for RC modelers. The M6AC also offers a power supply function with parameters of 0.5–15 A and 1–28 V in CC+CV mode and a USB type A output with a power of up to 10 W. A color IPS display with a diagonal of 2 inches and a resolution of 320×240 px ensures the readability of operating parameters in real time.

Features

  • Power supply AC 100-240 V (up to 120 W) or DC 7-35 V (up to 30 A)
  • Battery support: LiPo, LiHV, LiFe, LiIon, LTO (1-6S), NiMH (1-16S), Pb (1-10S)
  • Charging current: 0.1-15 A up to 300 W
  • Discharging current: up to 15 A (300 W) in recycling mode, up to 3 A (15 W) in internal mode
  • Balance current: 1000 mA at 4.2 V
  • Balancing accuracy: <0.005 V
  • Internal resistance measurement: 0.1-99 mΩ (for 1-6S)
  • PWM, PPM and SBUS signal generation and measurement functions
  • Power supply: 0.5-15 A, 1-28 V (CC+CV mode)
  • USB Type-A: 5 V/1 A (10 W)
  • 2″ IPS display 320×240 px
  • Dimensions: 108×106×60 mm
  • Weight: 350 g

Included

  • ToolkitRC M6AC charger
  • AC power cord
