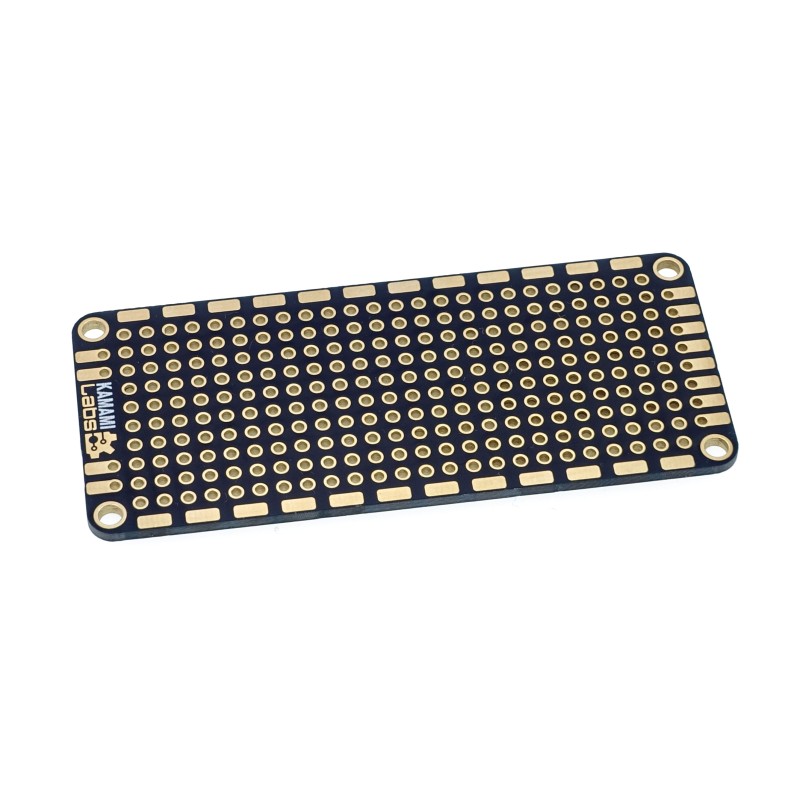

KAmod Proto 30x70 - Double-sided universal board 30x70mm
ID: 1201646
zł4.90
Tax included
zł3.98 tax excl.
Double-sided universal board 30 × 70 mm with 252 metallized holes and gold-plated contact pads. Intended for prototyping circuits with through-hole components in a standard 2.54 mm pitch.
Description
Double-sided universal board with dimensions of 30 × 70 mm intended for building prototypes of electronic circuits with through-hole components (THT). Made of durable FR-4 laminate with a thickness of 1.6 mm, with metallized holes facilitating soldering on both sides. The solder mask coating protects the surface from oxidation and makes assembly easier, while the gold-plated contact pads ensure high durability of electrical connections. The board contains 252 holes with a diameter of 1 mm, arranged in a standard 2.54 mm pitch, compatible with most THT components and connectors.
Properties
- Double-sided with hole metallization
- Covered with solder mask
- Gold-plated contact pads
- Material: FR-4 laminate
- Number of holes: 252
- Hole diameter: 1 mm
- Hole pitch: 2.54 mm
- Board thickness: 1.6 mm
- Dimensions: 30 × 70 mm
