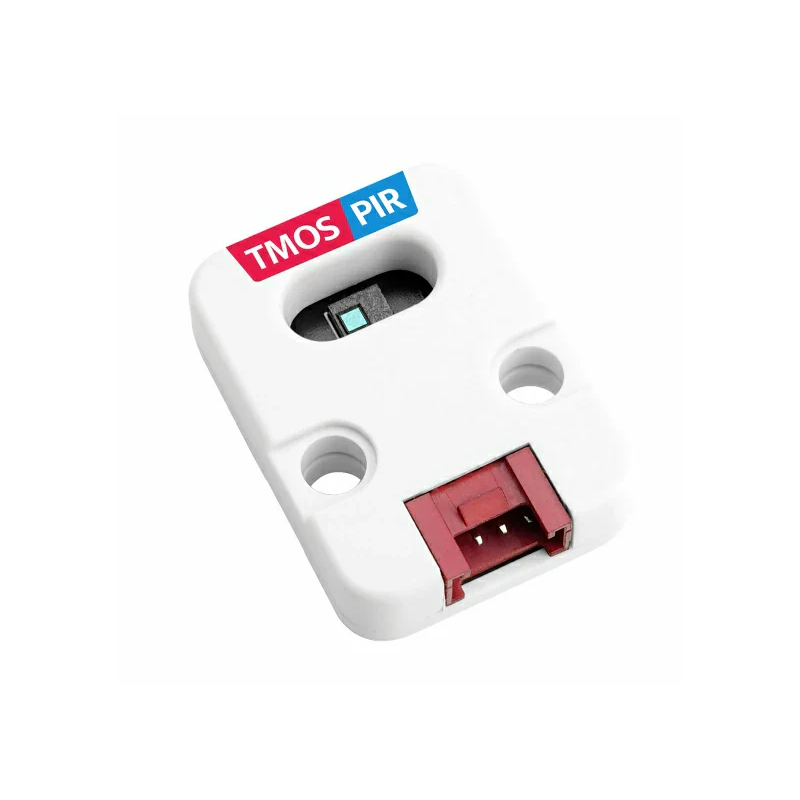

TMOS PIR Unit - PIR sensor with STHS34PF80
ID: 1200561
zł34.97
Tax included
zł28.43 tax excl.
A compact infrared sensor designed for presence and motion detection. Equipped with the STHS34PF80 chip and communicating via I2C, it offers an 80-degree field of view and object detection at distances of over 2 meters. The sensor offers high sensitivity and accuracy of ±0.3°C, supports an adjustable sampling rate, and various gain modes. It is ideal for smart lighting, alarm systems, furniture automation, and IoT projects. M5Stack U185
Description
TMOS PIR Unit is an infrared sensor designed for presence and motion detection. Equipped with the STHS34PF80 sensor, the device communicates with M5 devices via the I2C interface. Its operation is based on the blackbody radiation principle described by Planck’s law, enabling ambient temperature monitoring as well as detection of presence and motion. The sensor can distinguish stationary objects from moving ones and offers a 80-degree field of view for wide-range detection. Additionally, it supports adjustable sampling frequency and gain modes, allowing customization for various applications.
The sensor is ideal for alarm systems, smart lighting, indoor presence detection, furniture automation, and IoT projects. Its high sensitivity and accuracy make it reliable for applications requiring fast and precise motion detection. The compact design and lightweight construction facilitate easy mounting and integration with different systems. The device can operate in multiple gain modes, enhancing its versatility. It supports measurement distances of over 2 meters and can detect objects as small as 70 x 25 cm². With an adjustable output frequency from 0.25 Hz to 30 Hz, the data reading speed can be tailored to project requirements. The infrared wavelength range is 5–20 µm, and the sensor sensitivity is 2000 LSB/°C, ensuring ±0.3°C accuracy. TMOS PIR Unit is a practical solution for smart automation and security systems.
Features
- Sensor: STHS34PF80
- Communication: I2C (address 0x5A)
- Presence and motion detection
- Field of view: 80°
- Measurement range: over 2 meters
- Minimum detectable object: 70 x 25 cm²
- Adjustable output frequency: 0.25 Hz – 30 Hz
- Infrared wavelength: 5–20 µm
- Infrared sensitivity: 2000 LSB/°C
- Sensor accuracy: ±0.3°C
- Gain modes: default, wide
- Product dimensions: 32 x 24 x 8 mm
- Product weight: 4.4 g
Kit contains
- TMOS PIR Unit
- HY2.0-4P Grove cable (20 cm)
1200561
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
