M5Stack DMX Base - base board for DMX-512 communication
ID: 1192666
5902186300392
zł109.53
Tax included
zł89.05 tax excl.

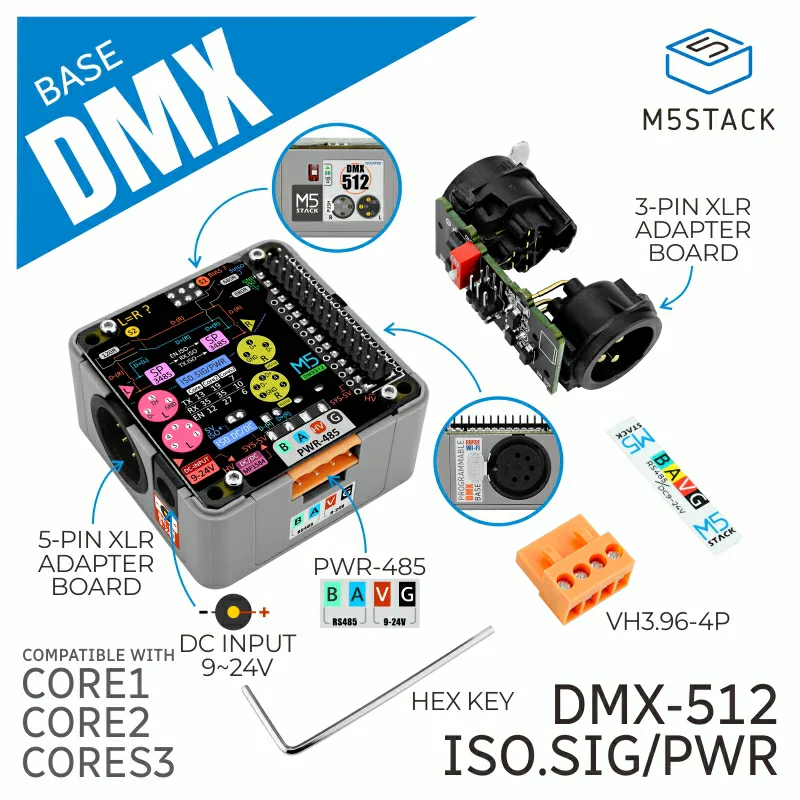

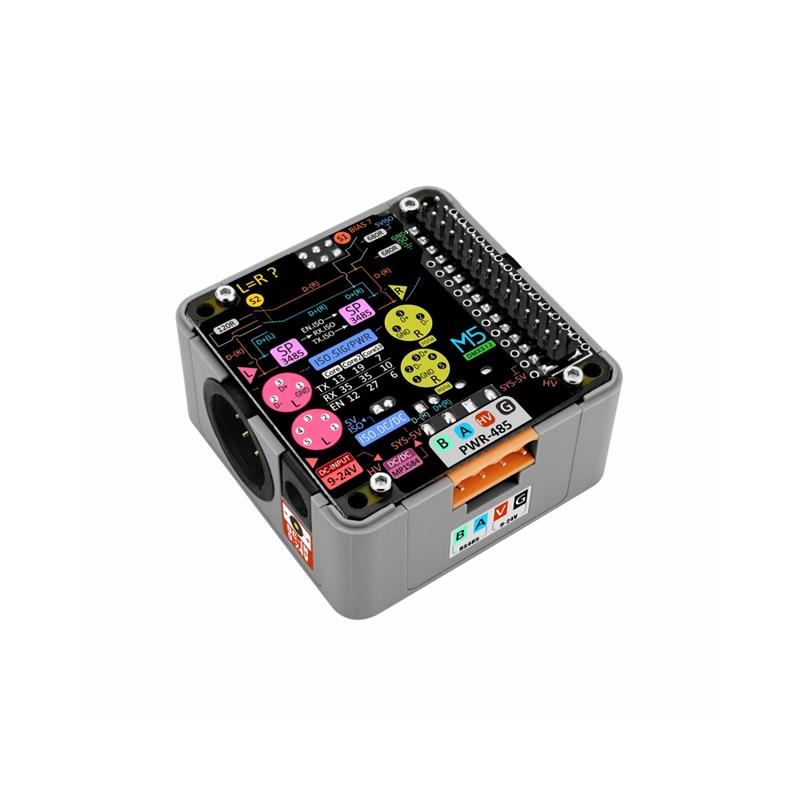

Advanced communication module for DMX-512 systems, enabling reliable control of lighting and stage equipment via serial port. With XLR-3 and XLR-5 connectors and dual RS-485 interfaces with optical isolation, it provides flexible and secure connections to DMX devices. Support for Arduino and UIFlow platforms and stable power supply make the module ideal for applications in theater, outdoor lighting systems and stage automation. M5Stack M128
Description
DMX-Base is a functional base module specifically designed for DMX-512 data transmission applications, enabling communication and control with M5 host devices via serial port. DMX-512 is widely used across various stage and utility technologies. In theaters and concerts, it facilitates comprehensive control over stage lighting and audio equipment, allowing for spectacular shows and precise synchronization of lights with music. In outdoor lighting systems, such as landscape lighting, the module enables automatic on/off switching and brightness adjustment based on time of day or presence detection.
The module is equipped with XLR-5 and XLR-3 connectors (male and female), enabling easy connection of various DMX devices without the need for additional adapters. To enhance signal reliability and protection, it features high-speed optical isolators and a specially isolated power module. The device includes two independent RS-485 circuits, which can operate either in parallel or separately depending on the internal two-position switch. It also supports easy connection of additional RS-485 extension devices via a HT3.96 connector. With stable DC-JACK power supply and a built-in DC-DC converter, the DMX-Base ensures uninterrupted device operation. Support for Arduino and UIFlow development platforms ensures flexibility and seamless integration with various systems.
Features
- DMX connectors: XLR-5 and XLR-3 (male and female)
- RS-485 interface: HT3.96 connector
- Isolation: High-speed opto-isolators and isolated power module
- RS-485 modes: Two independent or parallel, switchable internally
- Power input: DC 9 to 24V
- Power output: DC 5V / 3.3V
- Supported protocol: DMX-512
- Operating temperature: 0°C to 40°C
- Programming platforms: Arduino, UIFlow
- Dimensions: 54 x 54 x 27 mm
- Weight: 48 g
Kit contains
- DMX_Base module
- M2 Allen key
- 3.96-4P terminal
