Soldered - mini 170-hole PCB prototyping board
ID: 1208254
zł8.08
Tax included
zł6.57 tax excl.
Compact solderable PCB prototyping board with 170 holes, replicating the connection layout of a standard mini breadboard. Internally connected columns and power rails make it easier to transfer a tested circuit from a breadboard to permanent soldered connections. The board measures 46 x 33 mm. Soldered 333030
Description
The mini PCB prototyping board uses a connection layout corresponding to a standard mini breadboard, allowing a previously assembled and tested circuit to be transferred to a soldered version without redesigning the connection layout from scratch. The board provides 170 holes, with pins in individual columns and power rail pins internally connected in a similar way to a breadboard. The design is suitable for building small prototypes, educational circuits and permanent versions of electronic projects.
The compact dimensions of 46 x 33 mm allow the board to be used in projects with limited mounting space. Two holes designed for M3 screws allow the PCB to be securely mounted in an enclosure or on a structural element. The hardware design is available as open-source, allowing it to be modified and adapted to individual applications.
Features
- Type: solderable PCB prototyping board
- Connection layout compatible with a standard mini breadboard
- Number of holes: 170
- Internally connected column pins
- Internally connected power rail pins
- Number of mounting holes: 2
- Mounting holes designed for M3 screws
- Dimensions: 46 x 33 mm
- Allows breadboard circuits to be transferred to permanent soldered connections
- Open-source design
- Manufactured in Croatia, EU
1208254
You might also like

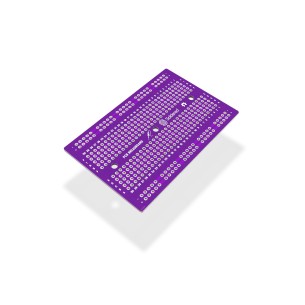

Solderable PCB prototyping board with 400 holes, replicating the connection layout of a modular half-size breadboard. It allows a circuit prepared on a breadboard to be transferred to permanent soldered connections without changing the component layout. The board measures 84 x 54 mm. Soldered 333031
