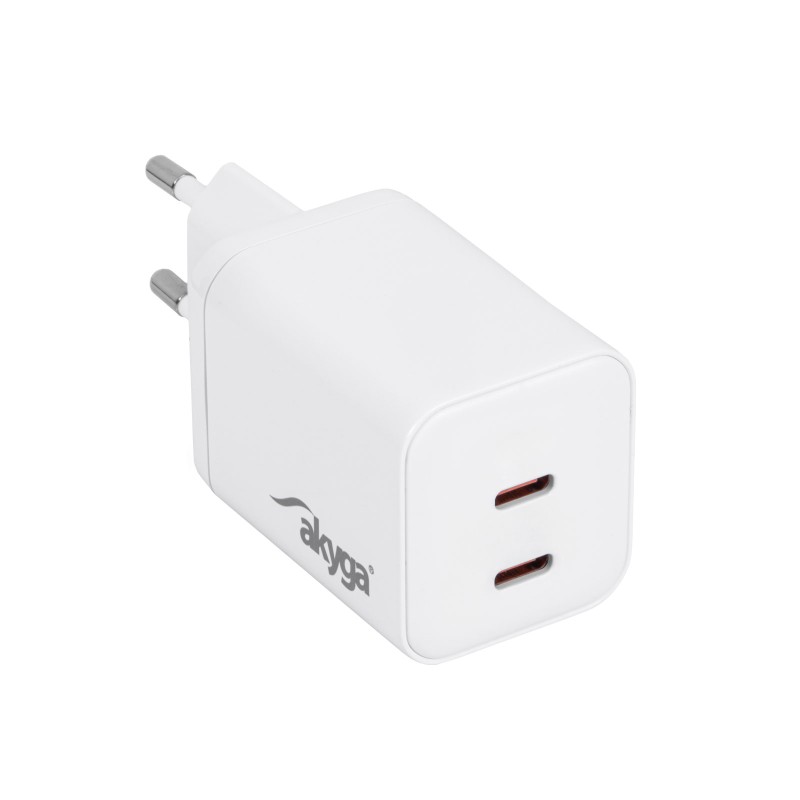

AK-CH-29 – angled connector view
search
  • AK-CH-29 – angled connector view
  • AK-CH-29 – connector view
  • AK-CH-29 – front plug view
  • AK-CH-29 – plug view
  • AK-CH-29 – angled connector close-up
ID: 1202783
5906708750658
zł42.62
Tax included

zł34.65 tax excl.

AC charger with output power up to 45W, equipped with two USB Type C ports, supporting Power Delivery and Quick Charge 3.0, output voltage range 5–20 V and current range 2.25–3 A. Akyga AK-CH-29

6 weeks
Awaiting delivery

Description

Akyga AK-CH-29 is an AC charger with two USB Type C outputs, designed for powering and charging devices that support USB Power Delivery and Quick Charge standards. The device operates with an input voltage of 100–240 V / 50/60 Hz and enables automatic selection of output parameters according to the requirements of the connected device, including voltage profiles of 5 V, 9 V, 12 V, 15 V, and 20 V, with an output current range from 2.25 A to 3 A.

The charger provides a maximum output power of 45 W when a single device is powered via a USB-C port, while simultaneous use of both ports results in power sharing between the active outputs. GaN technology is used in the power conversion circuit, and protection mechanisms such as OVP, OCP, OTP, and SCP reduce the risk of damage during operation. The AK-CH-29 model is used for charging smartphones, tablets, power banks, and computer devices equipped with a USB-C port.

Features

  • Device type: AC charger
  • Number of ports: 2
  • Port types: 2× USB Type C
  • Charging standards: Power Delivery, Quick Charge 3.0, Samsung AFC, Huawei FCP, DCP, Apple 2.4A
  • Maximum power: 45 W
  • Output current range: 2.25–3 A
  • USB-C output parameters: 5 V / 3 A, 9 V / 3 A, 12 V / 3 A, 15 V / 3 A, 20 V / 2.25 A
  • Input voltage: 100–240 V / 50/60 Hz
  • Input current: <0.5 A
  • Power plug type: CEE 7/16 (Europlug)
  • Protections: OVP, OCP, OTP, SCP
  • Grounding: none (Class II protection)
  • Housing material: ABS
  • Color: white
  • Operating temperature: 5–50°C
  • MTBF: 100000 h
  • Dimensions: 86 x 58 x 46 mm
  • Net weight: 95 g
  • Manufacturer: Akyga
  • Manufacturer code: AK-CH-29
1202783

Data sheet

Cable length (m)
No cable
Supply connector
USB-C
Output voltage
5 - 20 V
Supply type
network
Output current
2,25 A - 3 A

Manufacturer AKYGA EUROPE SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ Wrocławska 1C 52-200 Suchy Dwór Poland contact@akyga.com

Responsible person AKYGA EUROPE SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ Wrocławska 1C 52-200 Suchy Dwór Poland contact@akyga.com
