- New

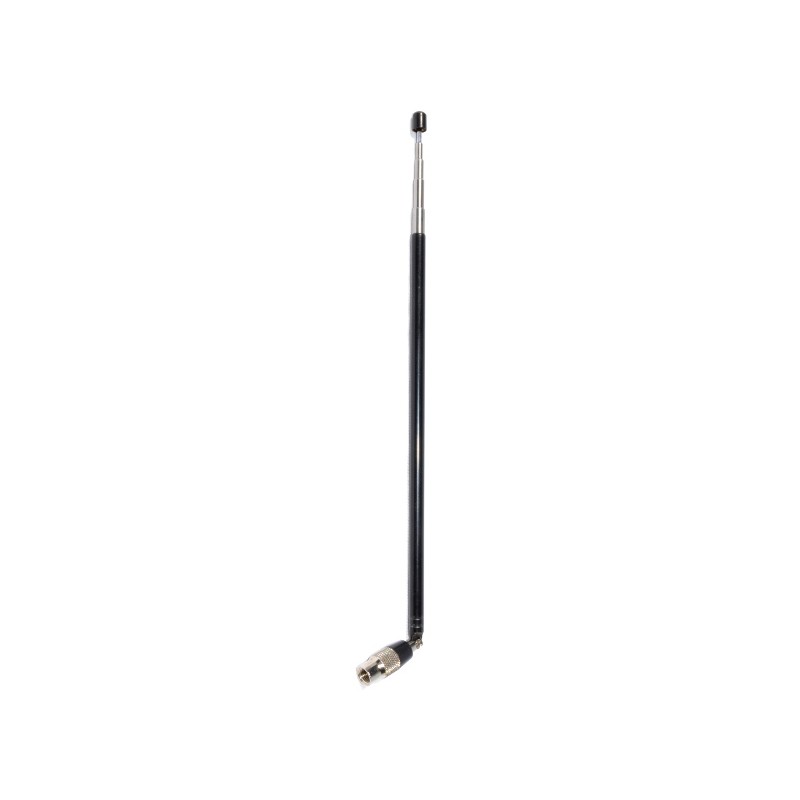

75MHz-1GHz SMA Telescopic Antenna - Great Scott Gadgets ANT500
ID: 1209957
0636824571107
zł149.90
Tax included
zł121.87 tax excl.
ANT500 telescopic antenna designed for radio devices and SDR receivers, operating in the frequency range from 75 MHz to 1 GHz. Its length can be adjusted from 20 to 88 cm, while the rotating mount and adjustable elbow allow flexible positioning. Made of stainless steel, with an SMA male connector and 50 Ω impedance. Designed for use with Great Scott Gadgets HackRF One and YARD Stick One, among other compatible devices. Great Scott Gadgets ANT500
Description
Telescopic antenna operating in the frequency range from 75 MHz to 1 GHz, designed for radio devices, software-defined radio (SDR) receivers, and experimental wireless communication systems. The Great Scott Gadgets ANT500 features a 50 Ω impedance and an SMA male connector for connection to devices with compatible antenna sockets. The antenna works with HackRF One and YARD Stick One, among other devices, supporting experiments involving radio signal reception and spectrum analysis within its operating frequency range.
The adjustable length from 20 to 88 cm allows the antenna dimensions to be adapted to the operating frequency and measurement conditions. The antenna is constructed from stainless steel, while the rotating mount and adjustable elbow allow its position to be changed relative to the connected device. The ANT500 is suitable for radio module testing, signal monitoring, and SDR development projects. Its telescopic construction also simplifies storage and transportation when the antenna is not in use.
Features
- Manufacturer: Great Scott Gadgets
- Model: ANT500
- Product type: telescopic antenna for radio and SDR devices
- Operating frequency range: 75 MHz to 1 GHz
- Impedance: 50 Ω
- Antenna connector: SMA male
- Minimum antenna length: 20 cm
- Maximum antenna length: 88 cm
- Length adjustment: telescopic
- Material: stainless steel
- Rotating mount
- Adjustable elbow joint
- Compatibility: HackRF One, YARD Stick One, and other devices with a compatible SMA connector and 50 Ω impedance
- Designed for radio experiments, spectrum analysis, and SDR projects
Kit Includes
- 1x Great Scott Gadgets ANT500 telescopic antenna
1209957
Data sheet
- Antenna connector
- SMA male
- Frequency
- 75MHz – 1GHz
- Antenna Type
- Rod
- Length
- 88 mm
- Antenna Gain
- Other
