- New

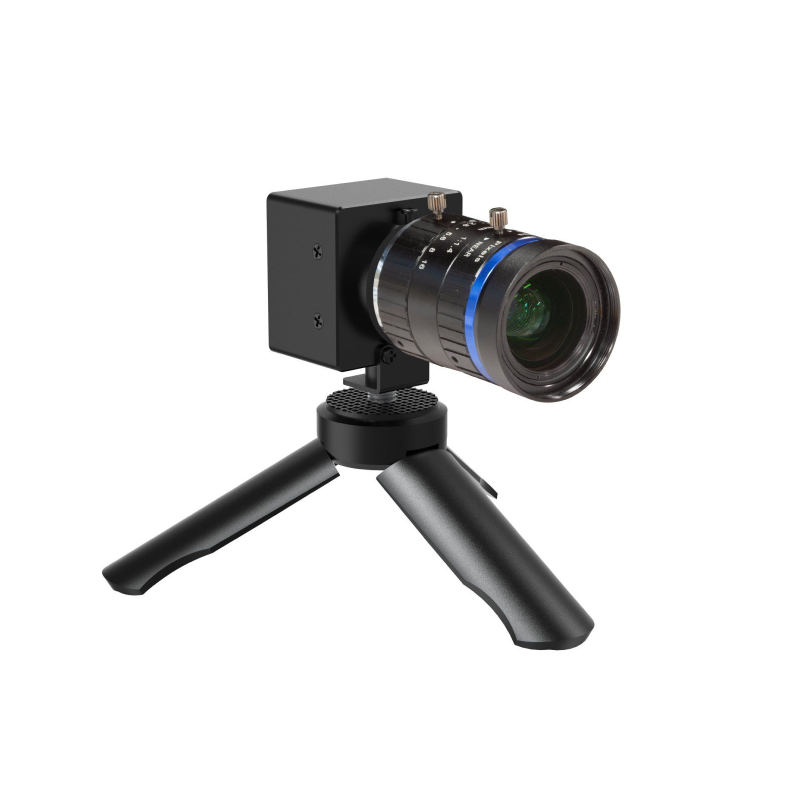

ArduCam B0498 - USB 3.0 camera 8.3MP IMX585 STARVIS 2 with 16mm C-mount lens
ID: 1195328
zł1,335.19
Tax included
zł1,085.52 tax excl.
USB 3.0 camera module based on the Sony STARVIS 2 IMX585 sensor with an 8.3 MP resolution, equipped with a manually adjustable 16 mm C-mount lens, intended for applications requiring good image quality in low-light conditions
Description

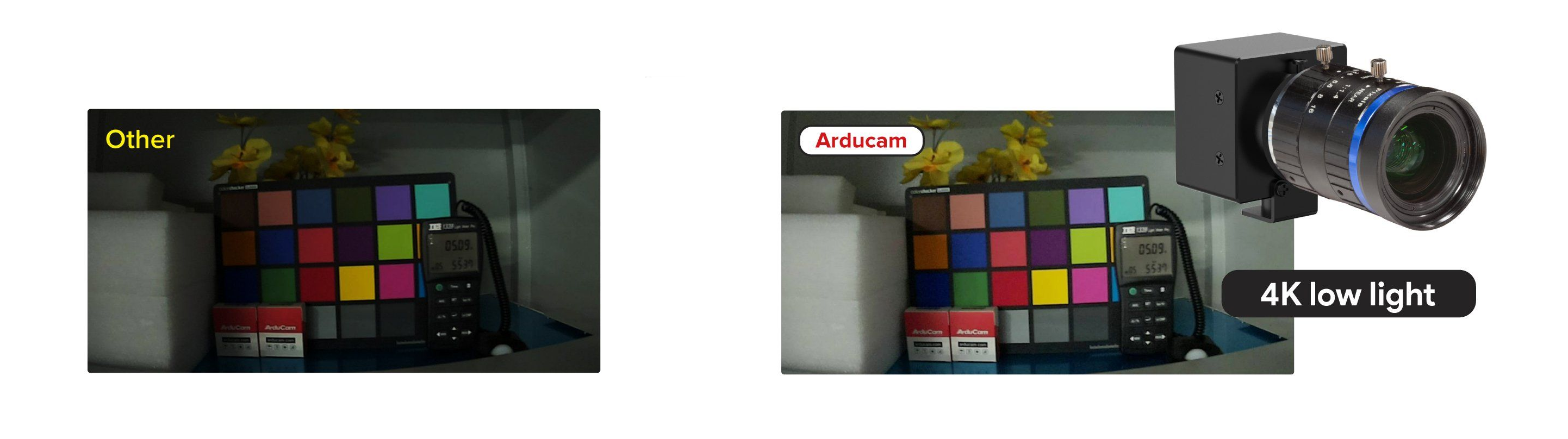

The ArduCam B0498 is designed for use in machine vision systems, surveillance, and measurement applications that require high image quality in low-light environments. The module uses the Sony STARVIS 2 IMX585 image sensor with a resolution of 3840 x 2160 px, providing detailed images and good sensitivity under challenging lighting conditions. The built-in ISP performs image enhancement functions such as color correction, white balance, exposure control, and backlight compensation.
The camera is equipped with a C-mount telephoto lens with a focal length of 16 mm, featuring manual focus and aperture adjustment in the range of F1.4–F16, allowing precise focusing for objects at various distances. The USB 3.0 interface enables high frame-rate video streaming, up to 90 fps at a resolution of 1280 x 720 px. The device supports the UVC standard and operates in plug-and-play mode with Windows and Linux systems, without the need to install additional drivers.
Features
- Image sensor: Sony STARVIS 2 IMX585
- Still image resolution: 8.3 MP
- Maximum resolution: 3840 x 2160 px
- Shutter type: rolling shutter
- Optical format: 1/1.2"
- Pixel size: 2.9 µm x 2.9 µm
- Sensor active area: 3856 x 2180 px
- Frame rate (USB 3.0): 3840 x 2160 @ 15 fps, 1920 x 1080 @ 60 fps, 1280 x 720 @ 90 fps
- Frame rate (USB 2.0): 1280 x 720 @ 10 fps
- Lens mount: C-mount
- Focal length: 16 mm
- Aperture: F1.4 – F16
- Field of view: 50° (D), 41° (H), 31° (V)
- Focus adjustment: manual
- IR filter: built-in IR-cut filter
- Interface: USB 3.2 Gen 1, backward compatible with USB 2.0
- Connector: USB Type-C
- Output format: YUY2
- Supported operating systems: Windows, Linux
- Supply voltage: 5 V ±5%
- Power consumption: 0.9–1.78 W
- Operating temperature range: 0°C – 70°C
- Camera board dimensions: 34 x 34 mm
Kit includes
- ArduCam B0498 USB 3.0 camera module with enclosure
- USB A to USB Type-C cable, 1 m
1195328
Data sheet
- Resolution
- 8,3 MPx
- Interface
- USB typ C
- Sensor
- IMX179
- IR filter
- Yes
- Lens assembly
- C mount
